52
Figure 3- 32
Figure 3- 33

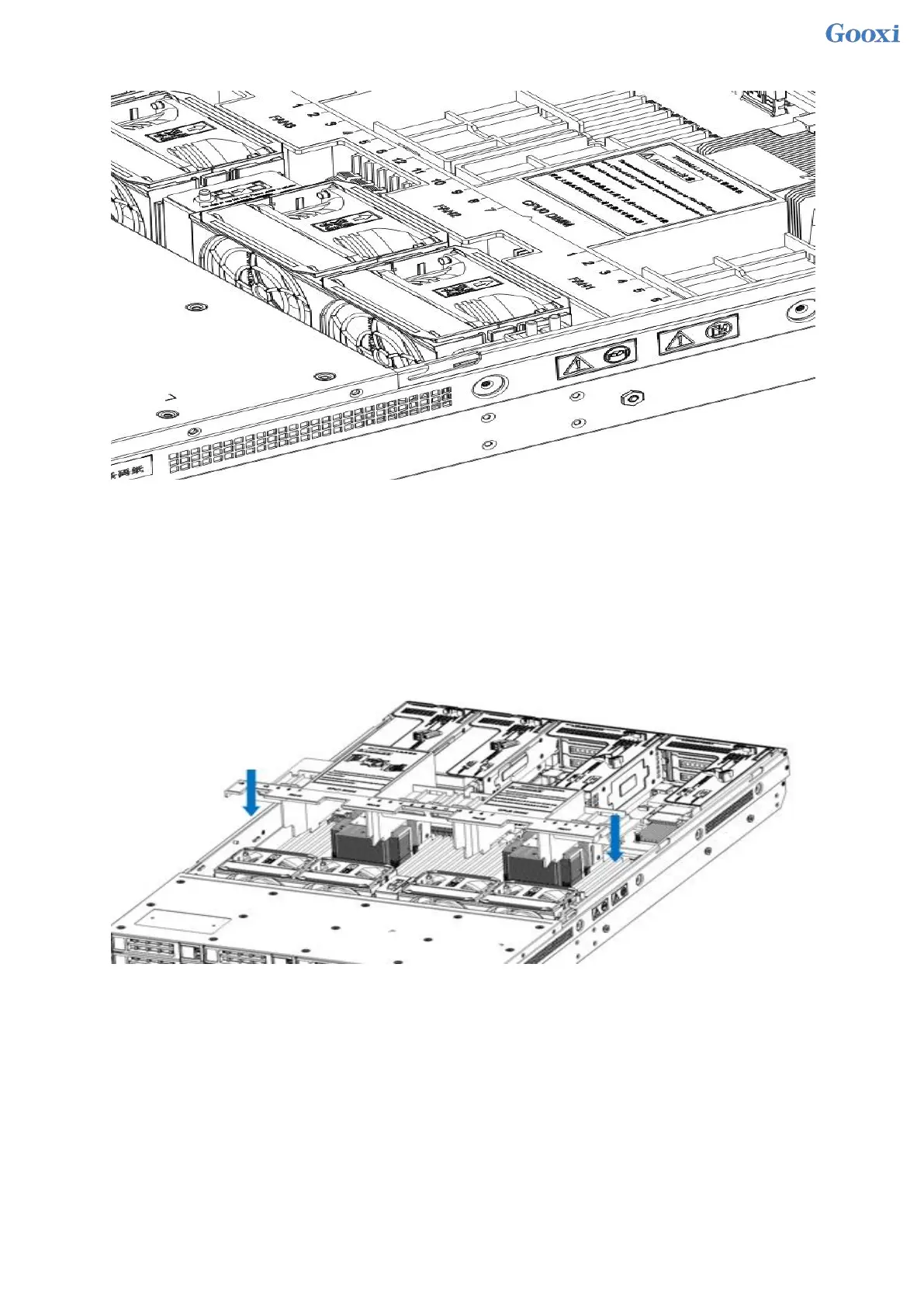

3.13 Installation of the wind shield
Steps: Align the air deflector module with the hanging points on the left and right sides, and place it vertically
downward - the height is lower than the height of the cabinet
Figure 3- 34
3.14 Installation of CD/DVD-ROM
Steps: Install the CD/DVD-ROM
1. The optical drive is as shown in Figure 3-35:
