51

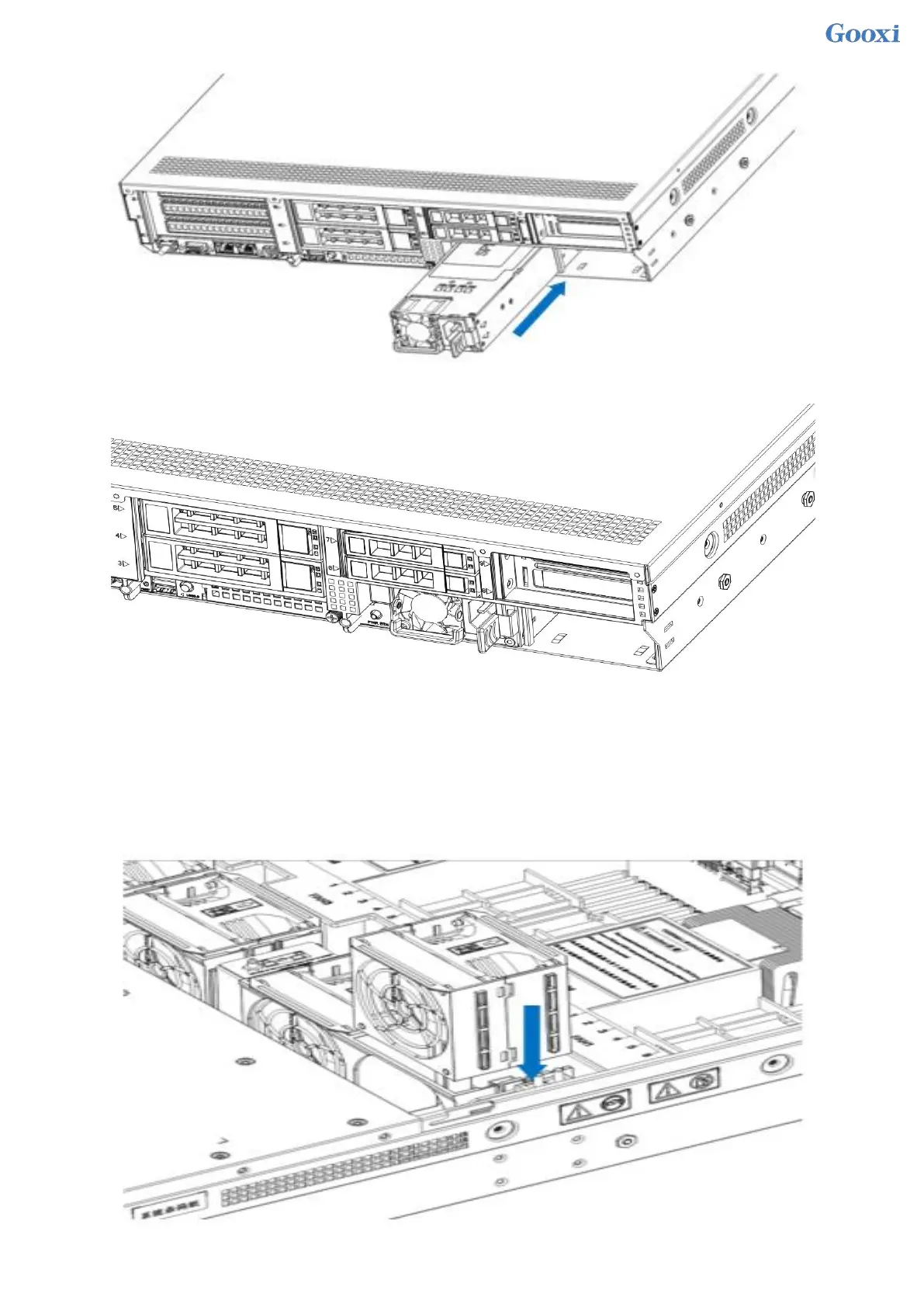

Figure 3- 30
Figure 3- 31
3.12 Installation of the fan module
Steps: Place the fan module vertically downward in the direction of the arrow (pay attention to the direction
of the fan module)
