Gooxi SL201-D08R-G3 User Manual

24
2
Management network port
9
Power switch button
3
VGA port
10
Power Module 1
4
RJ45 Gigabit Ethernet port
11
Power module AC port 1
5
COM port
12
Power Module 2
6
USB 3.0 port
13
Power module AC port 2
7
UID indicator

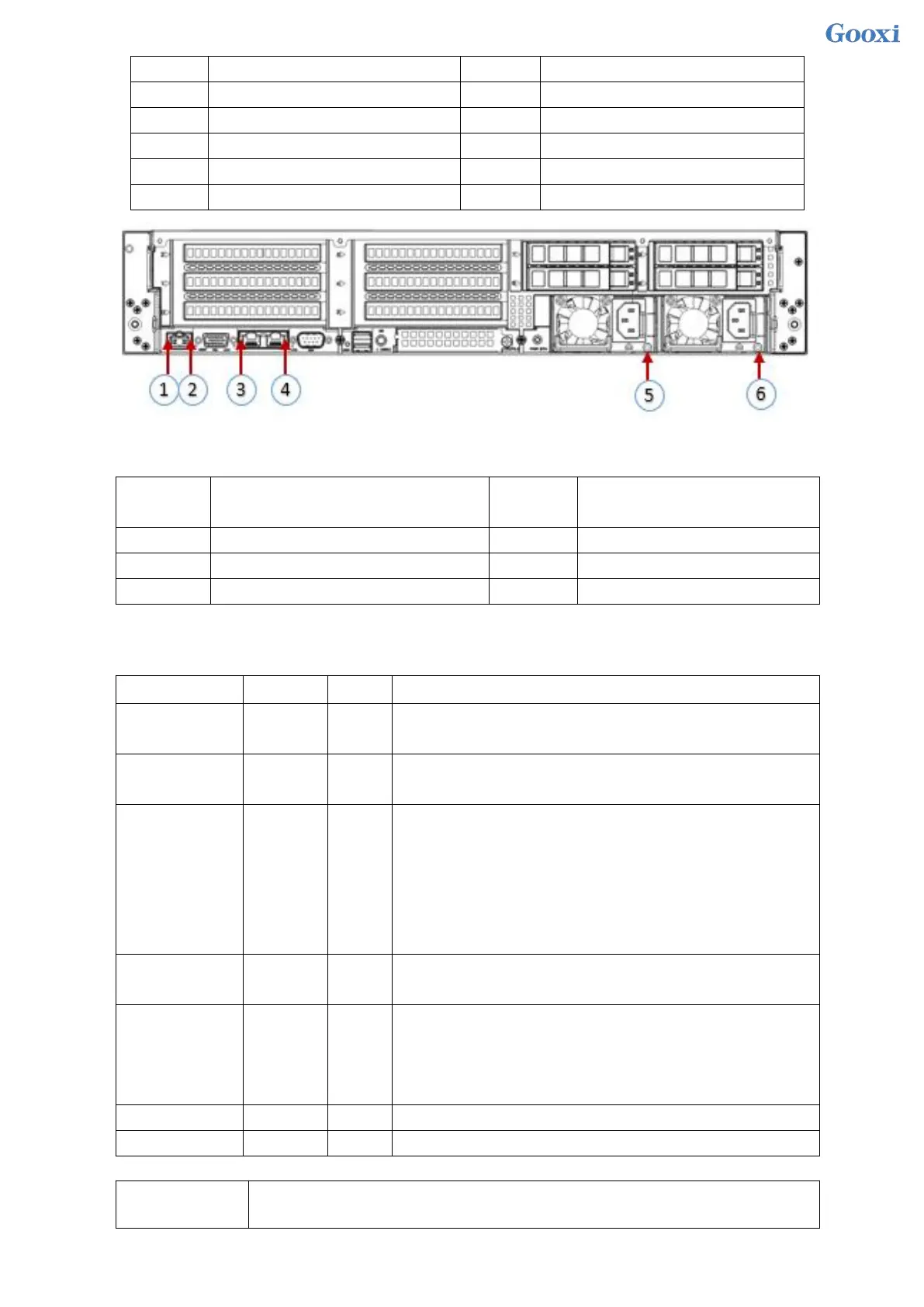

Figure 2- 10
Serial
number
Name
Serial
number
Name
1
Connection status indicator
4
Data transfer status indicator
2
Data transfer status indicator
5
Power Module Indicators
3
Connection status indicator
6
Power Module Indicators
Table 1- 16
Rear panel port description
Name
Types of
No.
Description
VGA port
DB15
1
For connecting to a display terminal such as a monitor or
KVM.
Management
network port
GE
BASE-T
1
Provide outgoing 1000Mbit/s Ethernet port. The server can be
managed through this interface.
USB port
USB 3.0
2
Provides an outgoing USB interface through which USB
devices can be connected.
Notice:
When using an external USB device, please make sure that the
USB device is in good condition, otherwise the server may
work abnormally.
RJ45 Gigabit
Ethernet port
GE
BASE-T
2
Server service network port.
Power Module
AC port
/
1 or 2
You can choose the number of power supplies according to
your actual needs, but make sure that the rated power of the
power supply is greater than the rated power of the whole
machine.
COM port
1
Serial communication port
OCP3.0 port
1
Install OCP3.0 network card
Indicator/
Status Description
