Gooxi SL201-D08R-G3 User Manual

28
J68
PCH I2C Header
Pin.1/2 Clear CMOS
Pin.3/4 Password Clear
Pin.5/6 ME FW Recovery Status
Pin.7/8 BMC Disable
Pin.9/10 BIOS Recovery Mode Enable
No Jumpers
J3
SD Card Slot (BMC Log Storage)
OCP1
OCP3.0 Slot (CPU0 PCIE X8)
J17+J18+J19
Riser1 Slot (CPU0 PCIE X32)
J20+J21+J22
Riser2 Slot (CPU0 PCIE X32)
J23
Riser3 Slot (CPU1 PCIE X16)
2.4.4 HDD Backplane Components

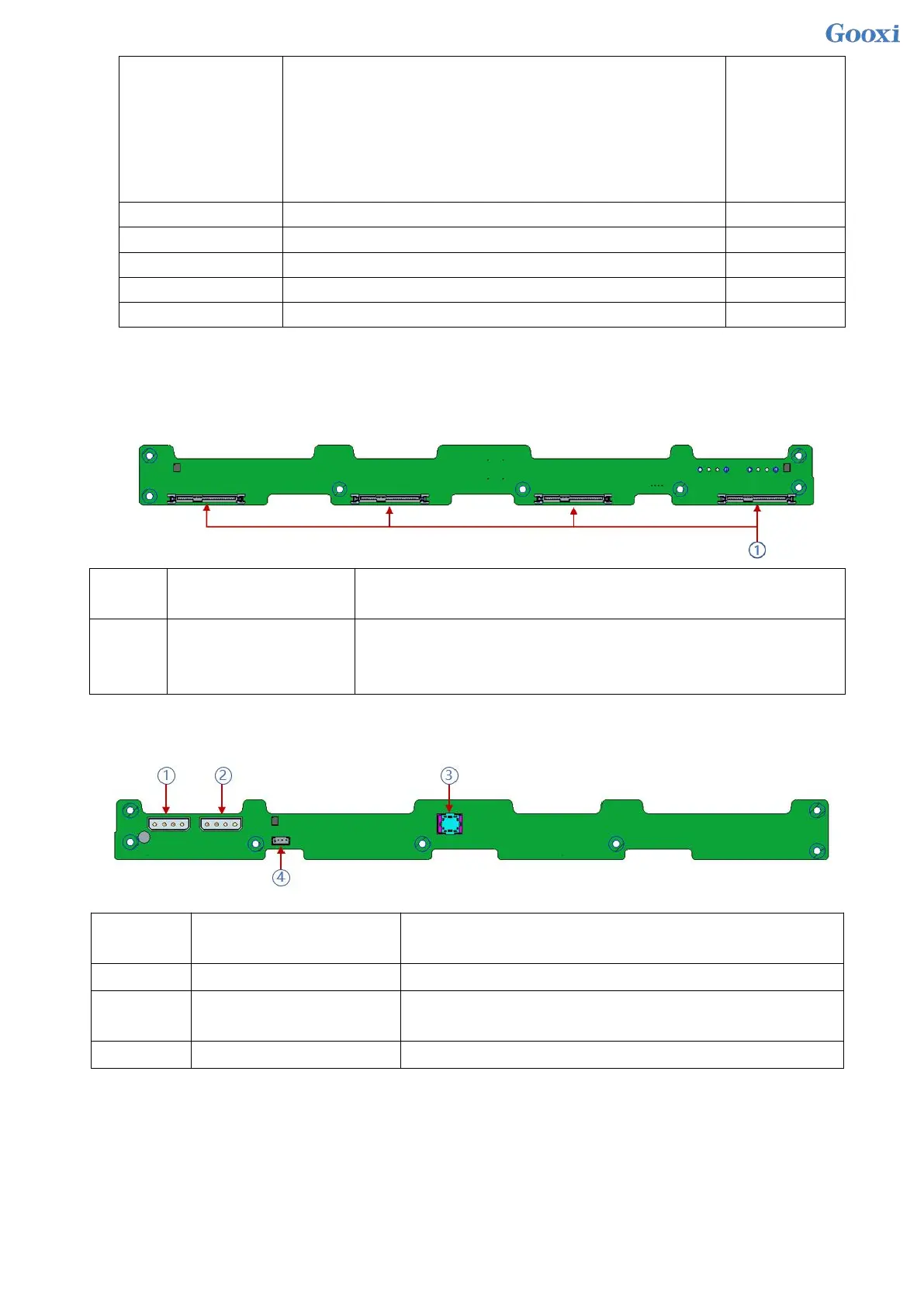

1U4 direct connection backplane as shown in the figure
Serial
number
Description
Function
1
SAS/SATA hard drive
connector
1. Maximum support 12G/b SAS hard disk;
2. Maximum support 6G/b SATA hard disk;
3. Support SAS/SATA hard disk hot-swap.
1U10 expansion backplane:
Serial
number
Description
Function
1, 2
Power connector
Backplane power transfer connector for 5V/12V power transfer
3
SFF-8643 12Gb SAS
interface
Backplane bay signal interface
4
I2C port
For I2C signal interface
2U8 expansion backplane as shown
TOP view:
