Figure 3- 24

Figure 3- 25

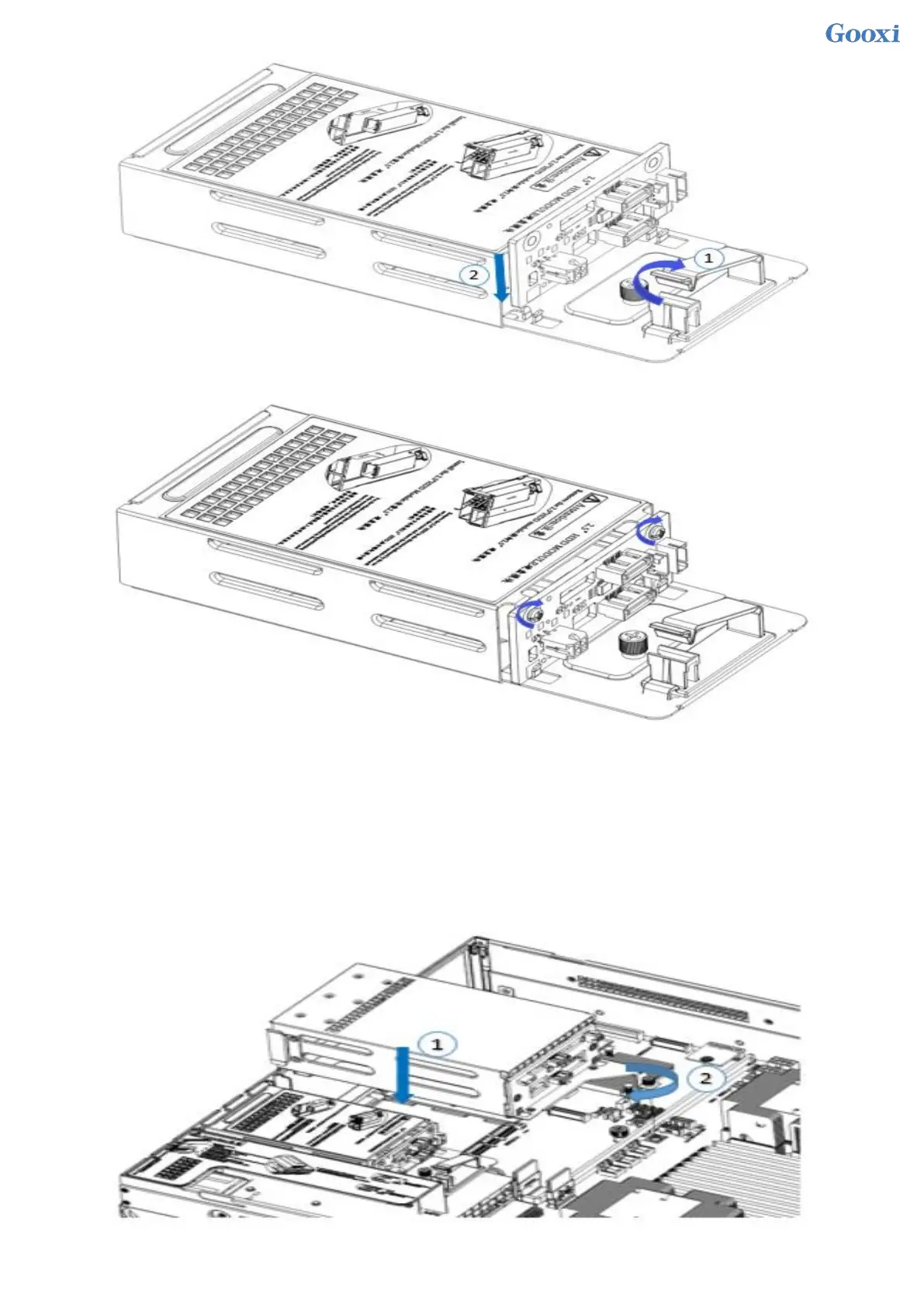

3.10 Rear hard disk module installation

Rear 3.5-inch hard disk enclosure installation

Step 1. The hard disk box is placed vertically down and flush with the rear window

Step 2. Rear hard disk Cage Assembly Fixing

Step 3. Lock a captive screw
