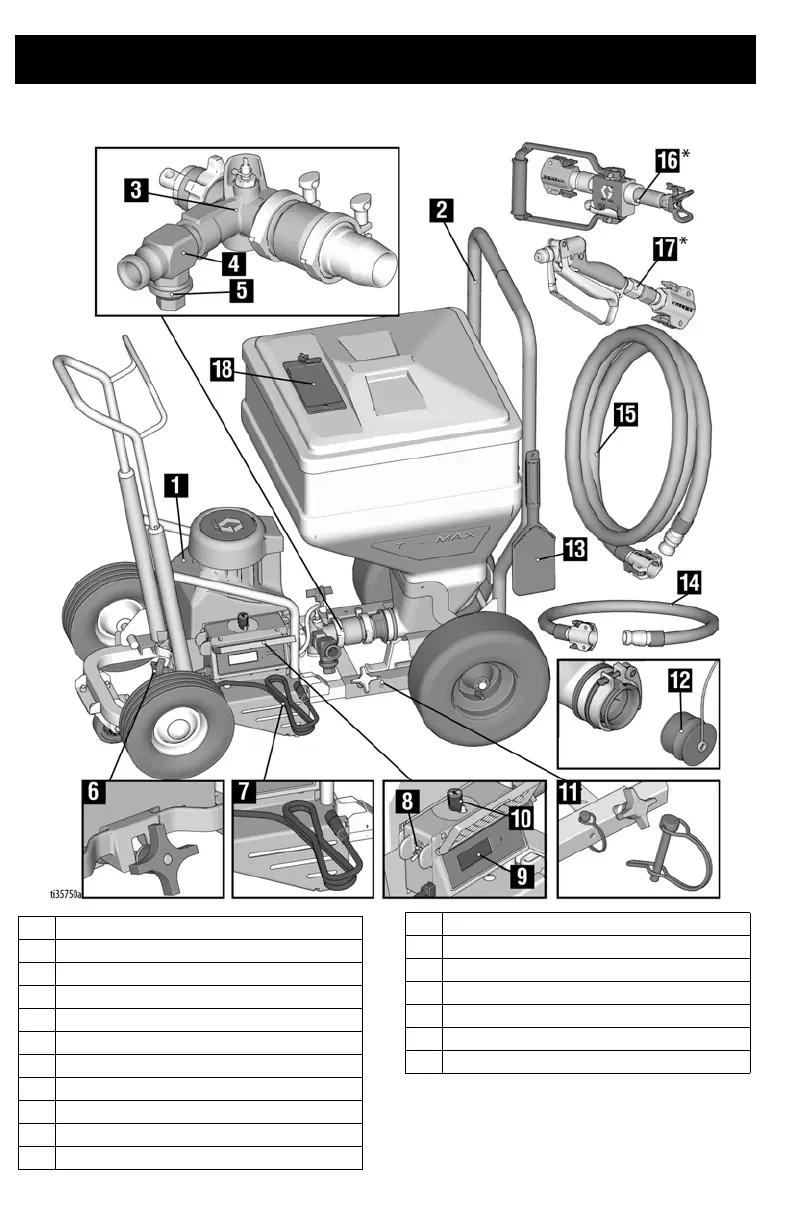

Component Identification 657
12
3A6748B
Component Identification 657
NOTE:
All hoses sent with the unit are for
water-based material ap
plication only.
* See page14 for all applicator
s.
1
Pump Module
2
Hopper Frame
3P
u
m
p
4
Pump Outlet
5
Pressure Relief Valve
6
Module Securing Clamp
7
Power Cord
8
ON/OFF Switch
9
Display
10
Pressure Control Knob
11
Locking Pins
12
Hopper Plug
13
Scraper Tool
14
Whip Hose
15
Material Hose
16
T-Max Applicator
17
Inline Gun
18
Tool Box
11
13
Table of Contents
Default Chapter
2
Table of Contents
2
Models
4
Warnings
7
Component Identification 506
11
Component Identification 657
12
Component Identification 6912
13
Component Identification
14
Pump Control Settings
15
T-Max 506/657
15
T-Max 6912
15
Operation
15
Preparation
16
Grounding
16
Solvent-Based Materials
16
Amp Switch
16
Extension Cords
17
Mixing Material
17
Hose Lubrication Mixing Instructions
18
Pressure Relief Procedure
19
Setup
21
Start up - Airless
24
Spray Tip Installation
26
Clear Spray Tip Clog
27
Start up - Air Assist
28
Start up - Air Assist STX Gun
30
Operation
32
Cleanup
33
Troubleshooting
39
Repair
43
Control Board Diagnostics
43
Control Board Removal 506/657
45
Control Board Installation 506, 657
47
Control Board Removal 6912
49
Control Board Installation 6912
51
Pump Removal
54
Pump Installation
56
Pump Repair 506/657
58
Pump Repair 6912
60
Cross-Section Reference / Pump Ball Identification 6912
63
Motor Removal
64
Motor Installation
65
Recycling and Disposal at End of Life
66
Parts - Hopper Frame
68
Parts List - Frame
69
Parts - Power Module 506/657
70
Parts List - Power Module 506/657
71
Parts - Power Module 6912
72
Parts List - Power Module 6912
73
Parts - Pump 289555 (506)
74
Parts List - Pump
74
Parts - Pump 289556 (657)
75
Parts List - Pump
75
Parts - Pump 25E668 (6912)
76
Parts List - Pump 25E668 (6912)
77
Parts - Control Box 506/657
78
Parts List - Control Box 506/657
79
Parts - Control Box 6912
80
Parts List - Control Box
80
Wiring Diagrams
81
6912 - Us
82
6912 - Uk
83
Technical Specifications
84
California Proposition 65
86
Graco Standard Warranty
87
Graco Information
88
