Graco T-MAX 506 User Manual

Parts - Pump 289555 (506)
74 3A6748B

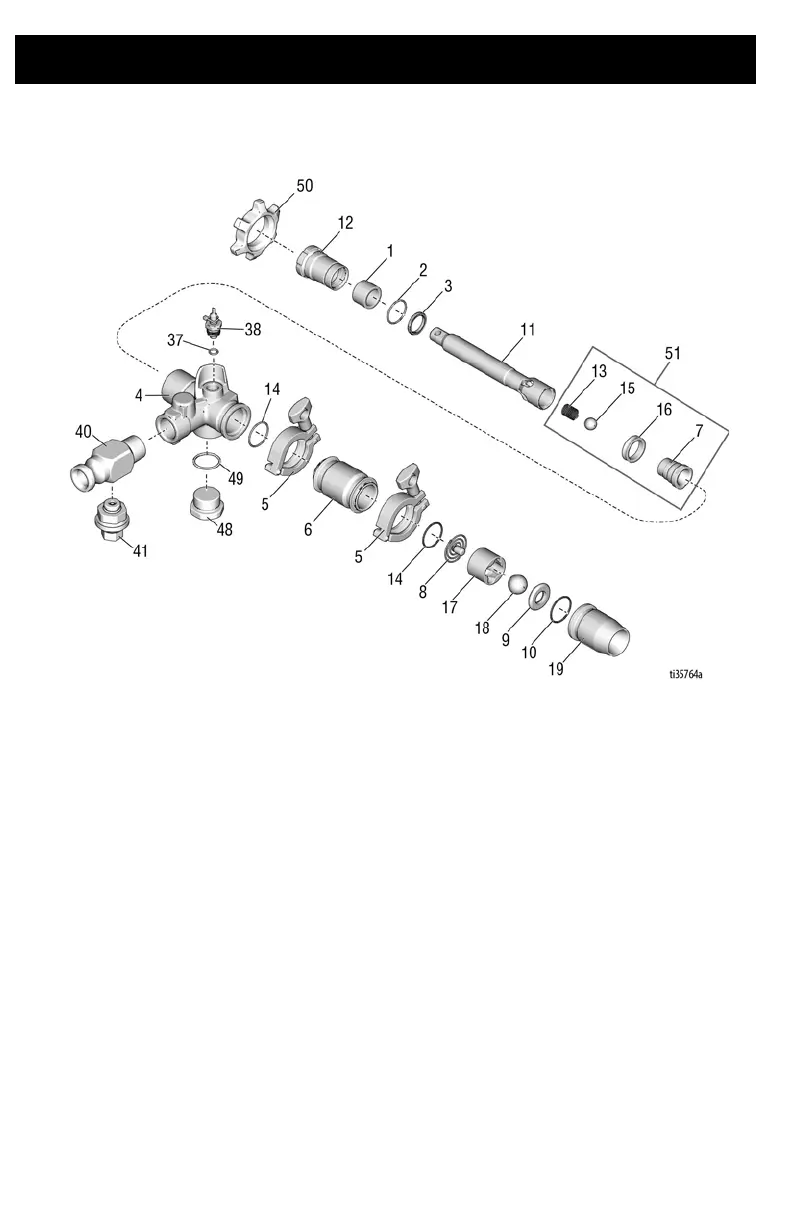

Parts - Pump 289555 (506)
Parts List - Pump
Ref. Part Description Qty
1 15D117 TUBE, fiber, pump 1
2 107185 PACKING, o-ring 1
3 118597 PACKING, u-cup 1
4 15R739 HOUSING, outlet,
machining
1
5 118598 CLAMP, sanitary, 1.5 in. 2
6 15R740 CYLINDER, pump 1
7 248232 VALVE, piston 1
248530 KIT, repair, seal, piston,
includes 7, 13, 15, 16
1
8 248162 SPRING, Intake ball 1
9 193395 SEAT, carbide 1
10 107098 PACKING, o-ring 1
11 15R620 ROD, pump 1
12 15D112 NUT, packing 1
13 501095 SPRING, ball check 1
14 121588 O-RING 2
15 101822 BALL, bearing 1
16 15D116 SEAL, piston 1
17 15D115 GUIDE, ball 1
18 107167 BALL, sst 1
19 248769 HOUSING, intake 1
37 111457 O-RING 1
38 289672 TRANSDUCER 1
40 17Z238 OUTLET 1
41 17Y930 RELIEF, pressure 1
48 17Z345 PLUG 1
49 121429 O-RING 1
50 193031 NUT, retaining 1
51 248530 KIT, valve, piston
includes 7, 13, 15, 16
1
Ref. Part Description Qty
