Repair
54
3A6748B

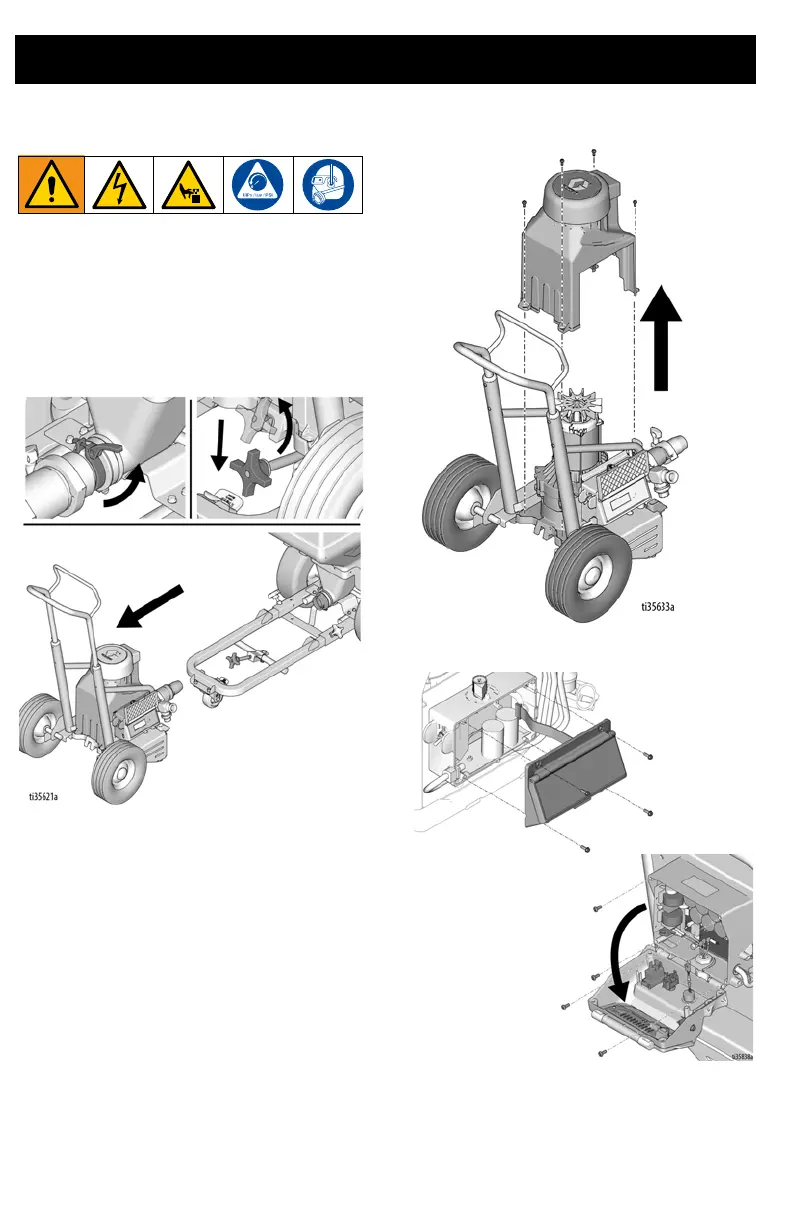

Pump Removal
1.
Perform
Pressure Relief Procedure
,
page 19. Unplug power cord to
disconnect power.
2.
Perform
Storage m
ore than 24 h
ours
procedure, page 34.
3.
Separate pump from hopper.
4.
Remove four screws and motor cover.
5.
Remove four screws and control cover.
ti11854a
506/657
6912
53
55
