Parts - Control Box 6912
80 3A6748B

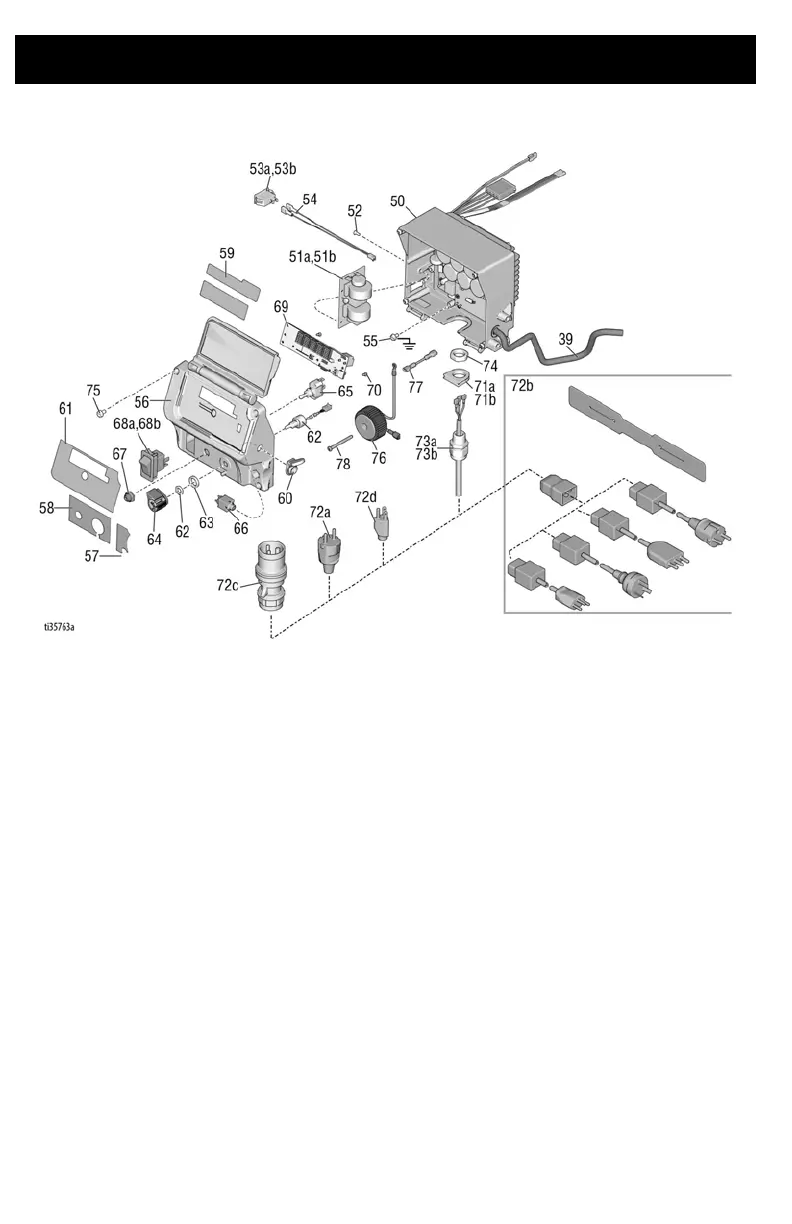

Parts - Control Box 6912
Parts List - Control Box
Ref. Part Description Qty
277228 BOX, control 1
15G562 BUSHING, control box 1
287913 FILTER, board 1
120405 SCREW, mach, hex
washer hd
5
120165 SCREW, mach, phillips 1
120406 SCREW, mach, hex
washer hd
1
158674 O-RING 1
39 15T342 CONDUIT 1
50 25E760 CONTROL, board, 240V 1
51a 24U823 BOARD, EU 1
51b 24R597 BOARD, UK 1
52 119288 SCREW 2
53a 126029 SWITCH, rocker, 240V 1
53b 120059 SWITCH, rocker, 120V 1
54 15G935 CONNECTOR 1
55 114391 SCREW, grounding 1
56* 19A642 COVER 1
57* 16Y788 LABEL 1
58* 17Z406 LABEL 1
59* 16X797 LABEL 1
60 120761 COVER, jack 1
61* 16X796 LABEL 1
62 17D888 POTENTIOMETER 1
63 15C973 GASKET 1
64 116167 KNOB, potentiometer 1
65 130863 SWITCH, toggle 1
66 19A719 HARNESS 1
67 195428 BOOT, toggle 1
68a 15D527 SWITCH, rocker, 240V 1
68b 15C979 SWITCH, rocker, 120V 1
69 24U123 BOARD 1
70 114391 SCREW 2
71a 16T544 ADAPTER, EU 1
71b 16T546 ADAPTER, UK 1
72 16M834 CORD 1
73a 117745 BUSHING, strain relief, EU 1
73b 116171 BUSHING, strain relief, US 1
74 117625 NUT, locking 1
75* 16V095 SCREW 4
76 15H063 COIL, filter, US 1
77 16T541 JUMPER, wire, US 1
78 16U215 SCREW, phillips pan hd,
US
1
* Included in Repair Kit 19A902
