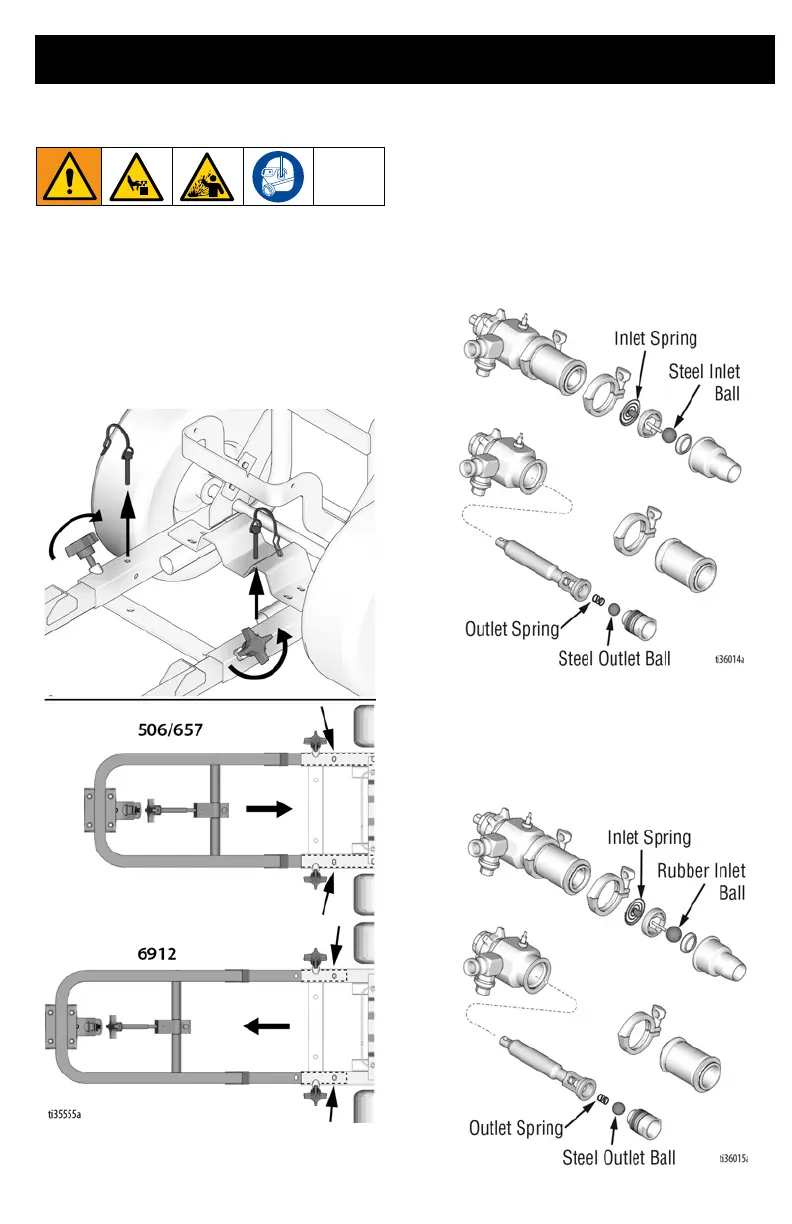

Setup
3A6748B 21
Setup
When unpacking sprayer for the first time or
after long term storage perform setup
procedure. When first setup is performed
remove shipping plug from fluid outlet.
1. Loosen knobs on hopper frame and pull
out pins. Adjust hopper frame to fit the
506/657 (shortest frame position) or the
6912 (longest frame position).
Depending on materials being sprayed with
the T-Max 6912, different pump setups might
be desired. For disassembly instructions, see
Pump Repair, page 60.
a. Smooth materials: Use steel inlet
ball with spring and steel outlet ball
with spring. This is how the unit is
shipped.
b. Some aggregates: To help prevent
packout, use a rubber inlet ball with
spring and a steel outlet ball with
spring. NOTE: Sometimes it is
necessary to remove spring from
outlet if packout occurs. See Part C.
To Next Page
