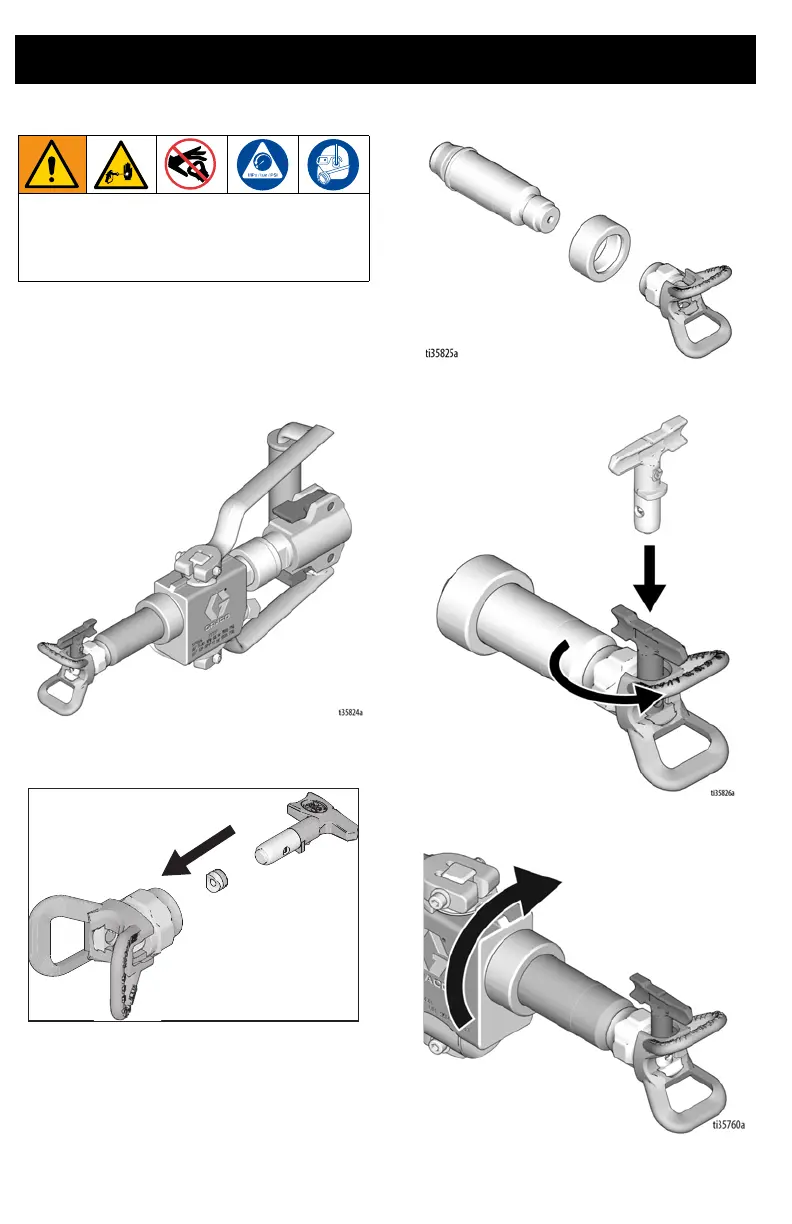

Spray Tip Installation
1. Perform Pressure Relief Procedure,
page 19.
2. Verify spray tip and tip guard parts are
assembled in the order shown.
a. Use spray tip to align gasket and
seal in the tip guard.
b. Spray tip must be pushed all the
way into the tip guard. Turn spray tip
to push down.
c. Assemble retaining ring on tip guard
adapter then assemble tip guard.
3. Turn the arrow shaped handle on the
spray tip forward to the spray position.
4. Screw spray tip and tip guard assembly
onto the gun and tighten.
To avoid serious injury from skin injection
do not put your hand in front of the spray tip
when installing or removing the spray tip
and tip guard.
