Graco T-MAX 506 User Manual

Repair
3A6748B 65

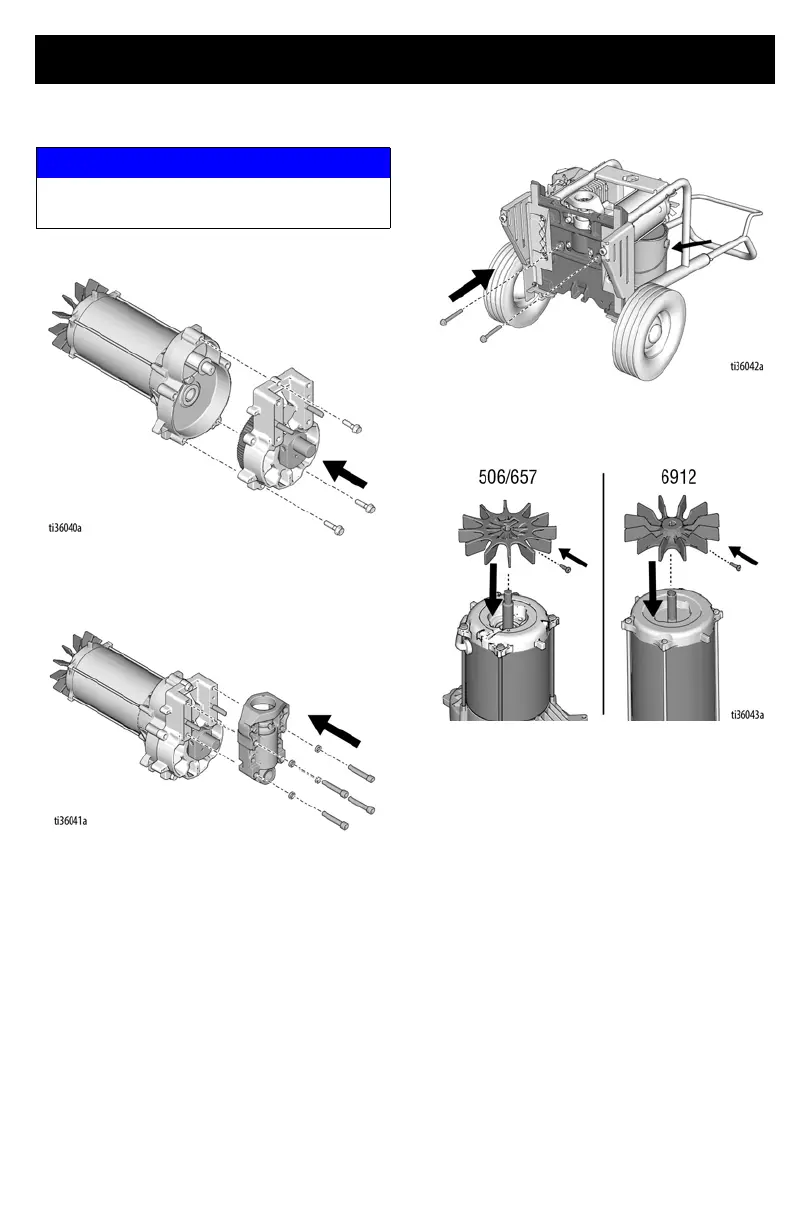

Motor Installation
1. Install drive housing with three screws.
2. Install bearing housing with four screws
and washers. Torque to 25 - 30 ft-lbs
(33.9 - 40.67 N·m).
3. Install motor with two screws. Torque to
200 - 220 in-lbs (22.6 - 24.9 N·m).
4. Install fan with screw. Torque 11 - 13
in-lb (1.24 - 1.46 N·m).
5. Install pump. See Pump Installation,
page 56.
NOTICE
When installing motor, carefully align gears
to avoid damaging mating parts.
