Repair
3A6748B
45

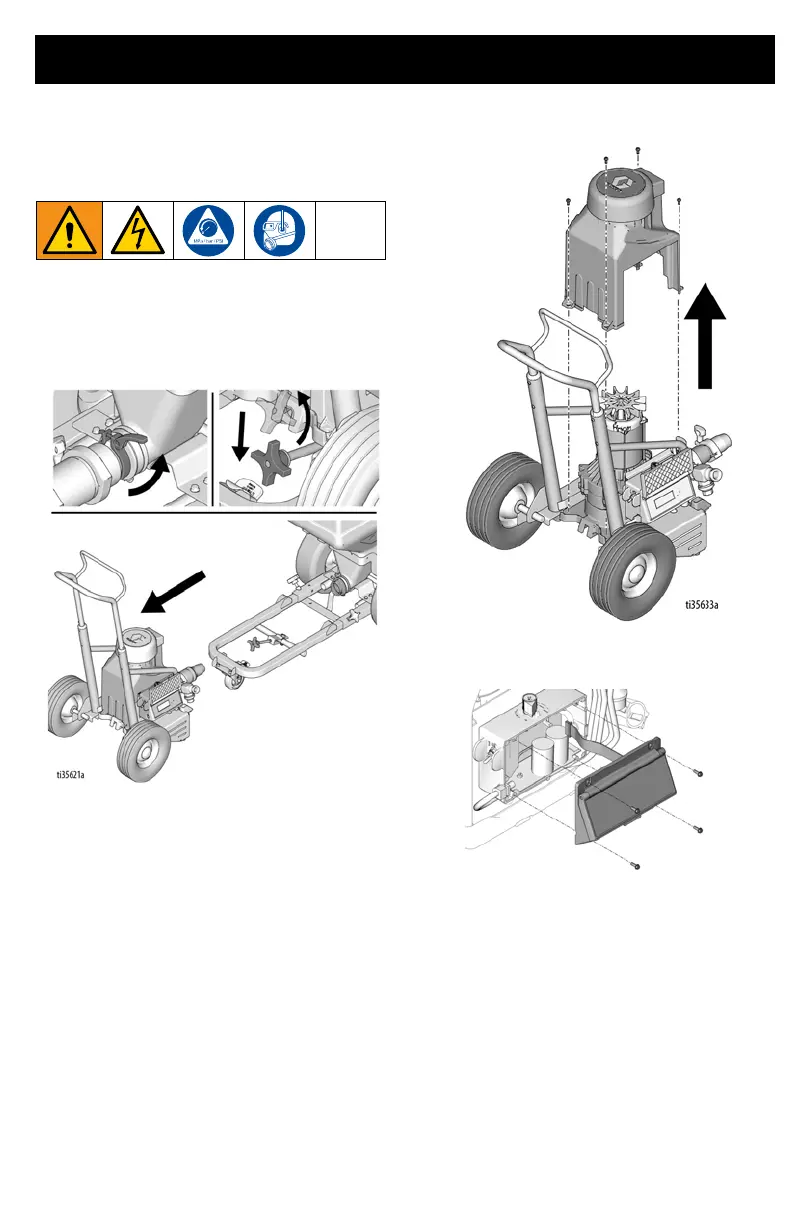

Control Board Removal
506/657
1.
Perform
Pressure Relief Procedure
,
page 19. Unplug power cord to
disconnect power.
2.
Separate pump from hop
per.
3.
Remove four screws and motor cover.
4.
Remove four screws and control cover.
Disconnect display from control
board.
ti11854a
44
46
