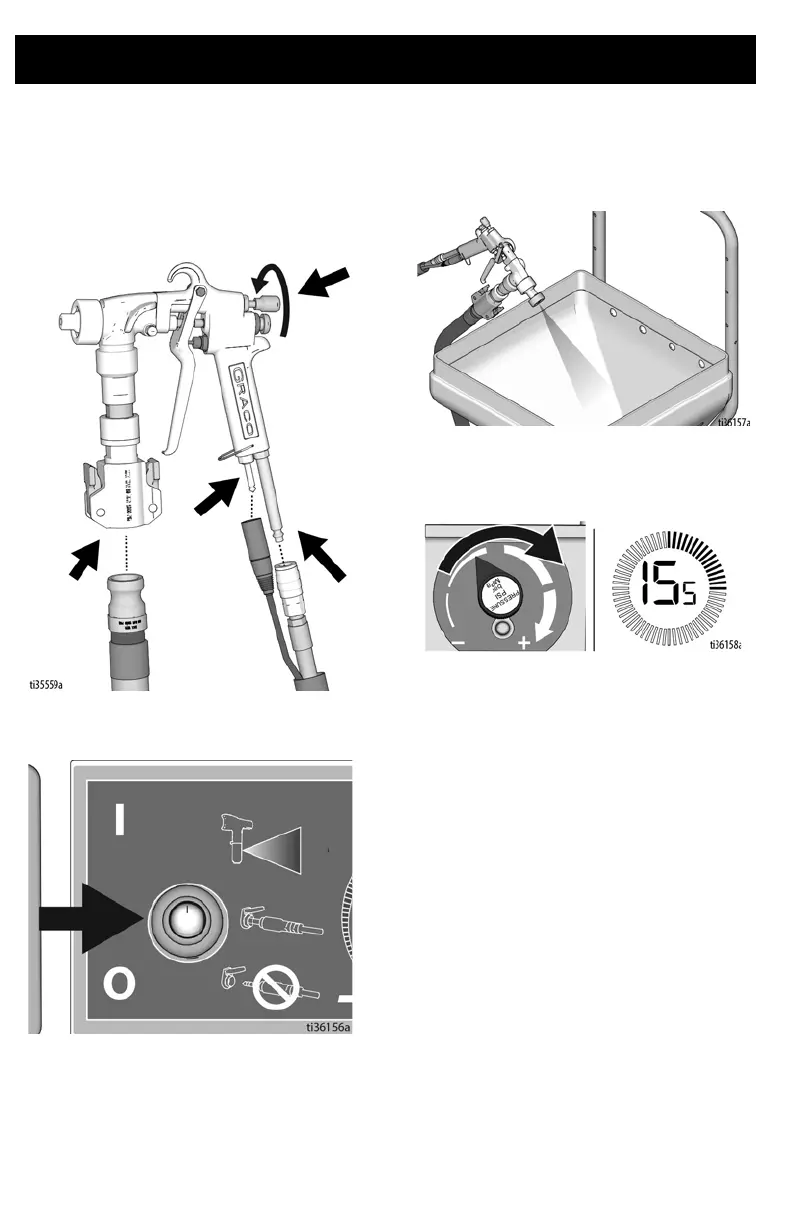

Start Up - Air Assist STX Gun
30 3A6748B
Start Up - Air Assist STX Gun
1. Turn air needle valve to low setting.
Connect applicator to material hose.
Connect signal wire connector to gun
handle, then the air hose.
2. Place Pump Mode Switch in center
position for remote pump control.
3. Hold applicator over material hopper and
turn applicator ON.
4. Turn Pressure Control Knob clockwise
until desired material delivery rate is
achieved. Run 15 seconds.
