Repair
3A6748B 47

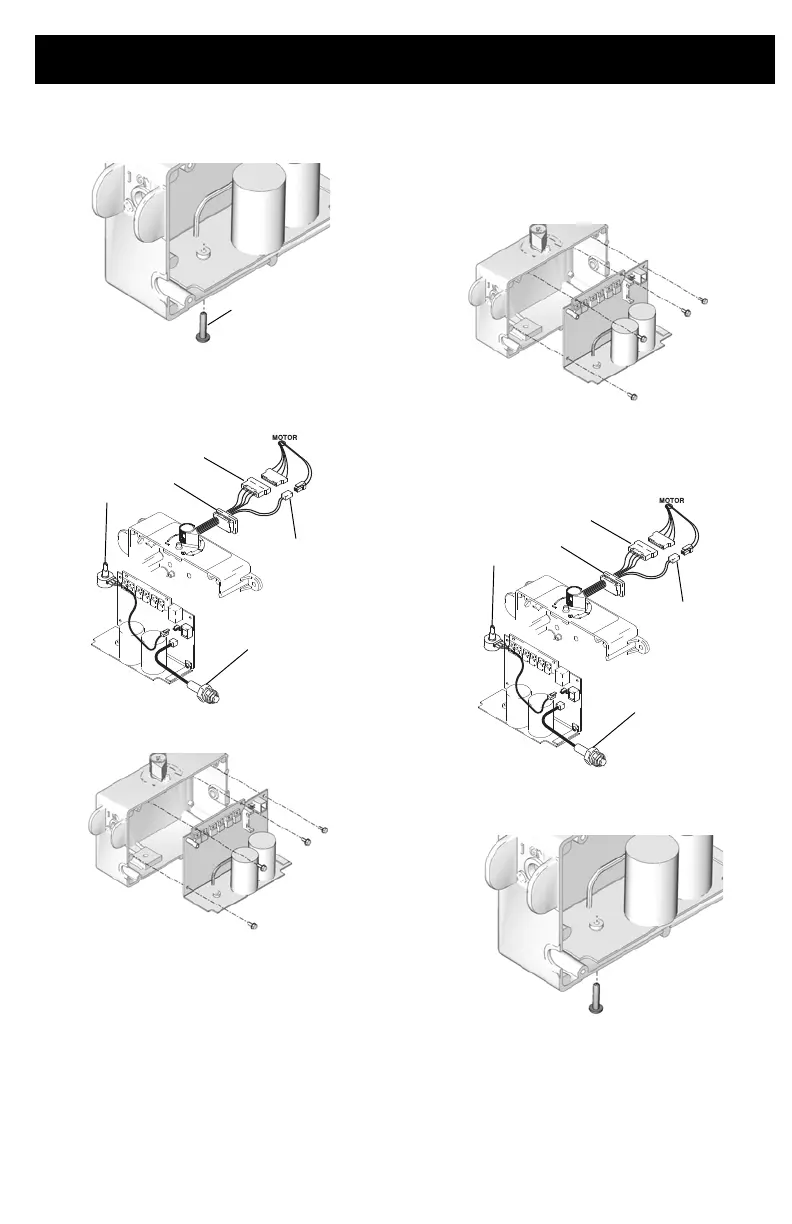

11. Remove screw from bottom of control
box.
12. Disconnect motor (A), thermister (B),
potentiometer (C) and transducer (D)
connectors. Remove grommet (E).
13. Remove four screws and control board.
Control Board Installation
506, 657
1. Install control board with four screws.
2. Connect motor (A), thermister (B),
potentiometer (C) and transducer (D)
connectors. Install grommet (E).
3. Install screw through bottom of control
box.
ti11864a
409
ti11862a
A
B
E
D
C
ti11863a
ti11863a
ti11862a
A
B
E
D
C
ti11864a
