Repair
46
3A6748B

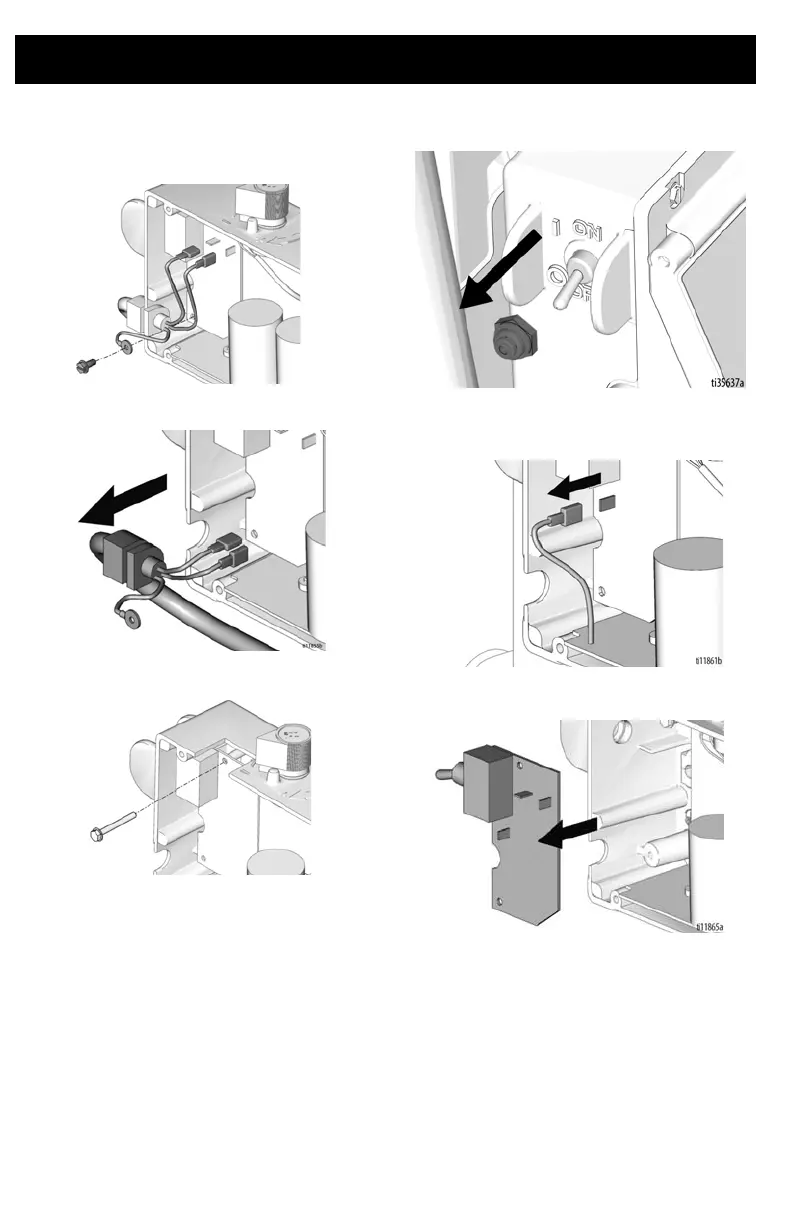

5.
Reference Wiring Diagram,
page 81.
Remove screw. Disconnect ground, blue
and brown
leads.
6.
Remove power cord from control box.
7.
Remove filter board screws.
8.
Remove ON/OFF switch toggle boot.
9.
Disconnect black lead from
control
board to filter board.
10.
Remove filter board from control box.
ti11853a
ti11856a
45
47
