Repair
64 3A6748B

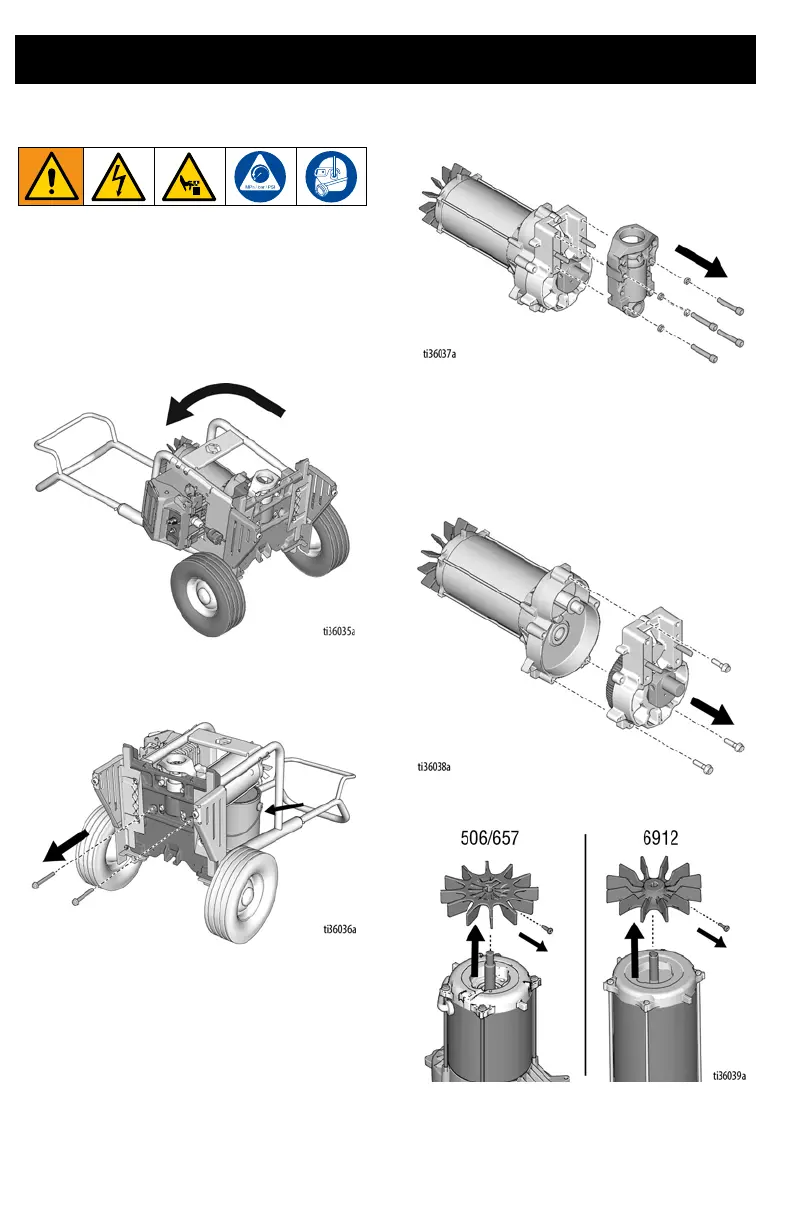

Motor Removal
1. Perform Pressure Relief Procedure,
page 19. Unplug power cord to
disconnect power.
2. Remove pump. See Pump Removal,
page 54.
3. Tip unit on back.
4. While supporting motor/drive housing,
remove two screws from base.
5. Remove four screws, washers and
bearing housing.
NOTE: Do not drop gear cluster when
removing drive housing. Gear cluster may
stay engaged in motor front end bell or drive
housing.
6. Remove three screws and drive
housing.
7. Remove screw and fan.
To Next Page
