Operation
32 3A6748B
Operation

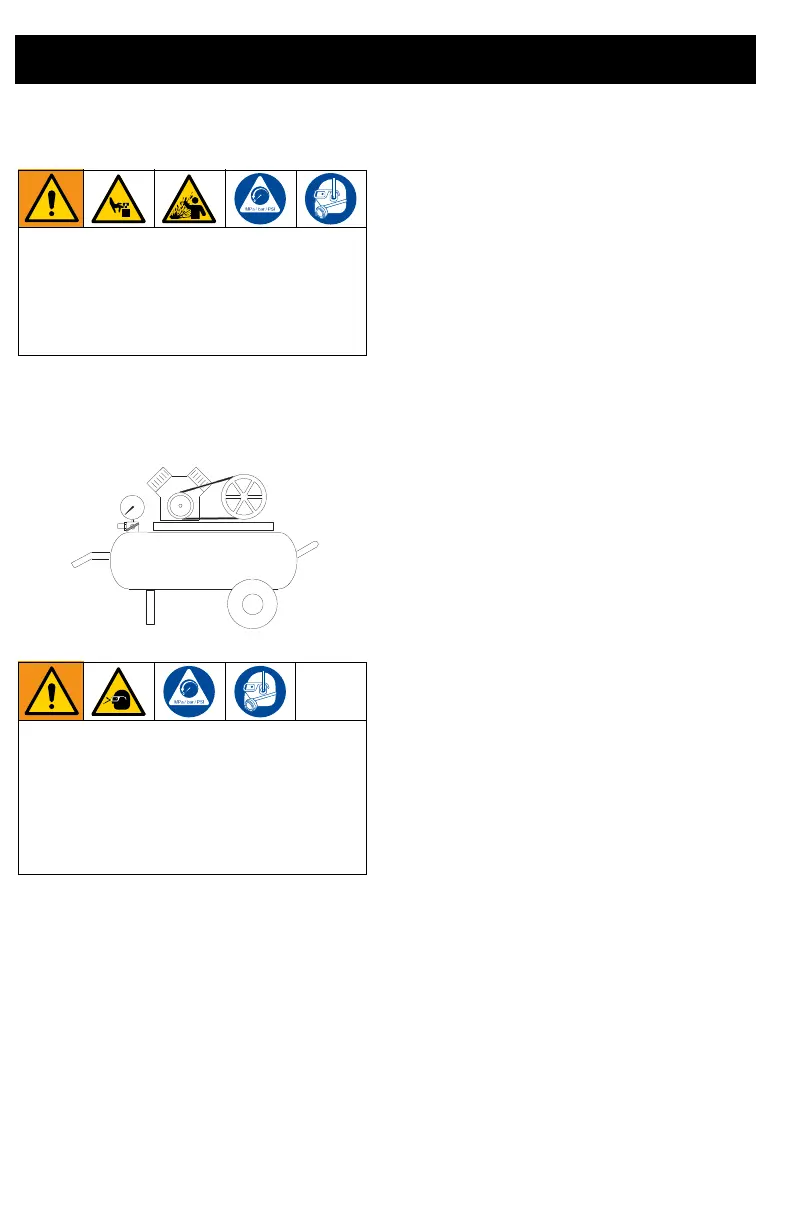

An external air compressor may be
connected to the applicator air line fitting.
This may be useful for the application of
decorative or hard-to-spray materials.
The system comes with the following hoses:
T-Max 506:
• Fluid Hose: 5 m of 25 mm ID & 3 m
of 19 mm ID
T-Max 657:
• Fluid Hose: 10 m of 25 mm ID & 3 m
of 19 mm ID
T-Max 6912:
• Fluid Hose: 5m, 10m, 15m, 30m of
25mm ID & 3m of 19mm ID
• Air Hose: If applicable, 18m or 33m
Hose Usage
Always attach 25 mm ID hose to pump outlet.
Other hoses may then be added up to the
maximum fluid hose lengths:
• Use shortest fluid hose length required
for the spray application (25 mm x 5 m)
minimum.
• Unnecessary hose length decreases
sprayer performance.
• Maximum fluid hose lengths:
T-Max 506:
• 15 m of 25 mm ID or 10 m of 25 mm
ID + 3 m of 19 mm ID
T-Max 657:
• 30 m of 25 mm ID or 25 m of 25 mm
ID + 3 m of 19 mm ID
NOTE:
T-Max 6912:
• 30 m of 25 mm ID + 3m of 19mm ID
NOTE: Use only one 3 m of 19 mm ID. Do not
exceed 1000 psi. Temperature usage range
0°F - 180°F. All hoses sent with the unit are
for water-based material application only.
The system has thermal overload
protection that will automatically shut
down the sysem if it overheats. To reduce
the risk of bodily injury due to the system
restarting unexpectedly, always turn the
ON/OFF switch to OFF.
Overpressurizing the system may cause
component rupture and result in serious
injury. To reduce risk of overpressurizing
system:
• Do not use a compressor with an
output pressure greater than 125 psi
(0.86 MPa, 8.6 bar).
ti11848a
