Start Up - Air Assist STX Gun
3A6748B 31

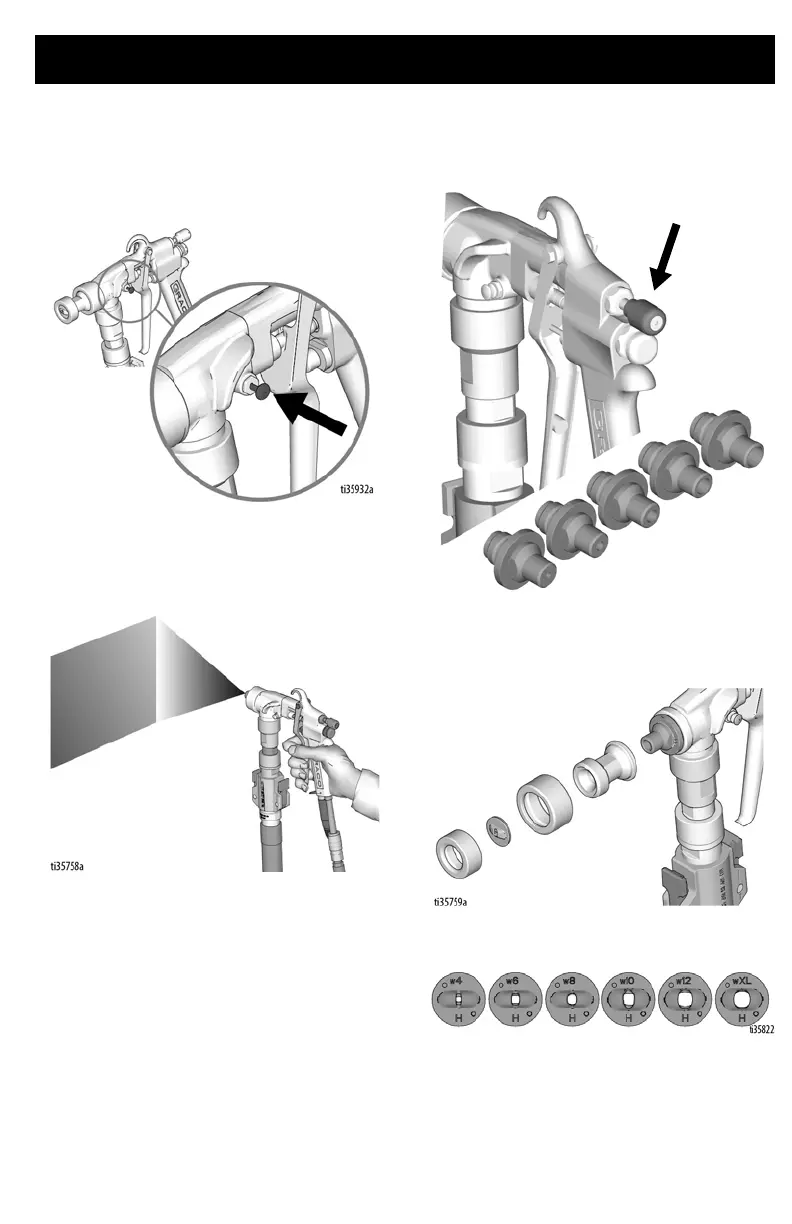

5. When done spraying, release trigger.
The fluid passage will stay open,
relieving pressure.
6. When pressure is relieved, press trigger
stop button to close fluid passage.
7. Spray test pattern. Aim applicator at
floor. Turn air valve ON. Turn applicator
ON and move application to spray
surface.
8. Adjust air needle valve and/or select
alternative nozzle size (4 - 12mm) for
desired finish.
9. If a fan pattern is desired, remove
retaining ring and add adapter housing,
disk, and retaining nut to the assembly.
10. Select alternative disk (W4 - WXL) for
desired finish.
