Pump Control Settings
3A6748B 15

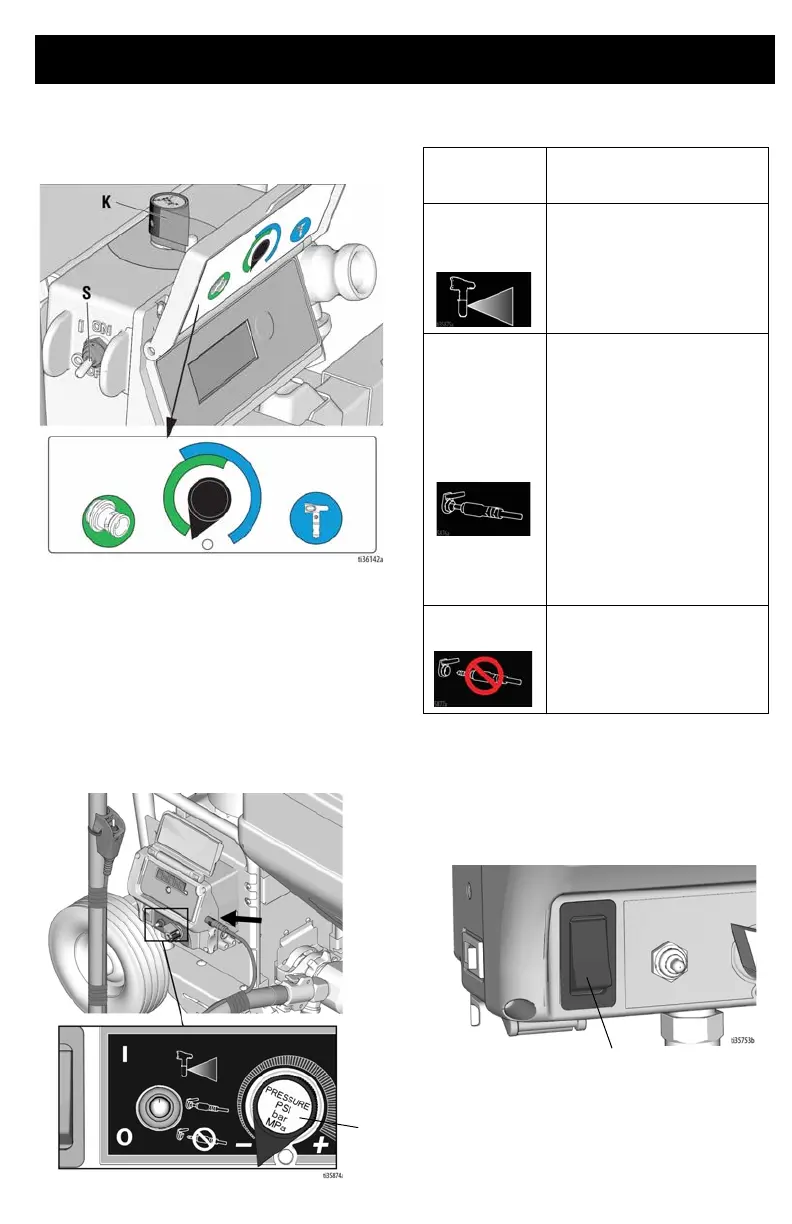

Pump Control Settings
T-Max 506/657
Flow Mode (first half of Pressure Control
Knob):
The motor will run continuously at the
speed determined by the Pressure Control
Knob (K). 0-100%
Pressure Mode (second half of Pressure
Control Knob):
The motor will run to meet the
pressure determined by the Pressure Control
Knob (K).
T-Max 6912
Operation
The motor power switch (S) must be
ON for the sprayer to pump material.
K
Pump Control
Setting Description
Pressure
Mode
The motor will run to meet the
pressure determined by the
Pressure Control Knob (K).
Flow Mode
with Remote
Control
The “Flow Mode with Remote
Control” setting allows the
user to control ON/OFF
functionality of the pump
through the remote toggle
switch or the STX Spray
Gun. When the remote toggle
switch or the STX Spray Gun
is installed and the pump
control settings are set to
“Flow Mode with Remote
Control”, they can be used to
turn the pump ON and OFF.
Flow Mode
The motor will run
continuously at the speed
determined by the Pressure
Control Knob (K). 0-100%
S
