Graco T-MAX 506 User Manual

Repair
3A6748B 55

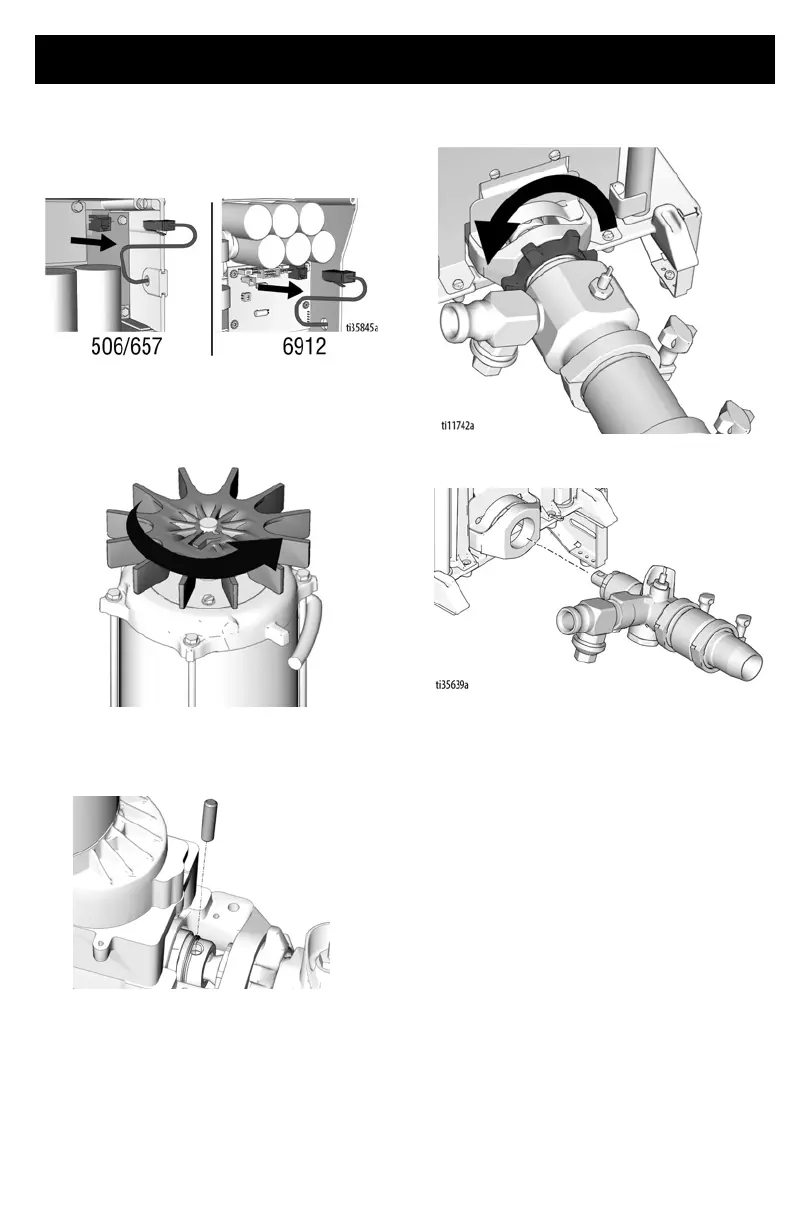

6. Disconnect transducer from control
board. Remove transducer and strain
relief from control box.
7. Slowly rotate fan blade on motor until
connecting rod is at bottom of stroke.
8. Pry retaining spring up on connecting
rod toward motor. Push pump pin out
with a screwdriver.
9. Loosen retaining nut.
10. Unscrew pump from bearing housing.
ti11867a
ti11747a
