Setup
3A6748B
23
6.

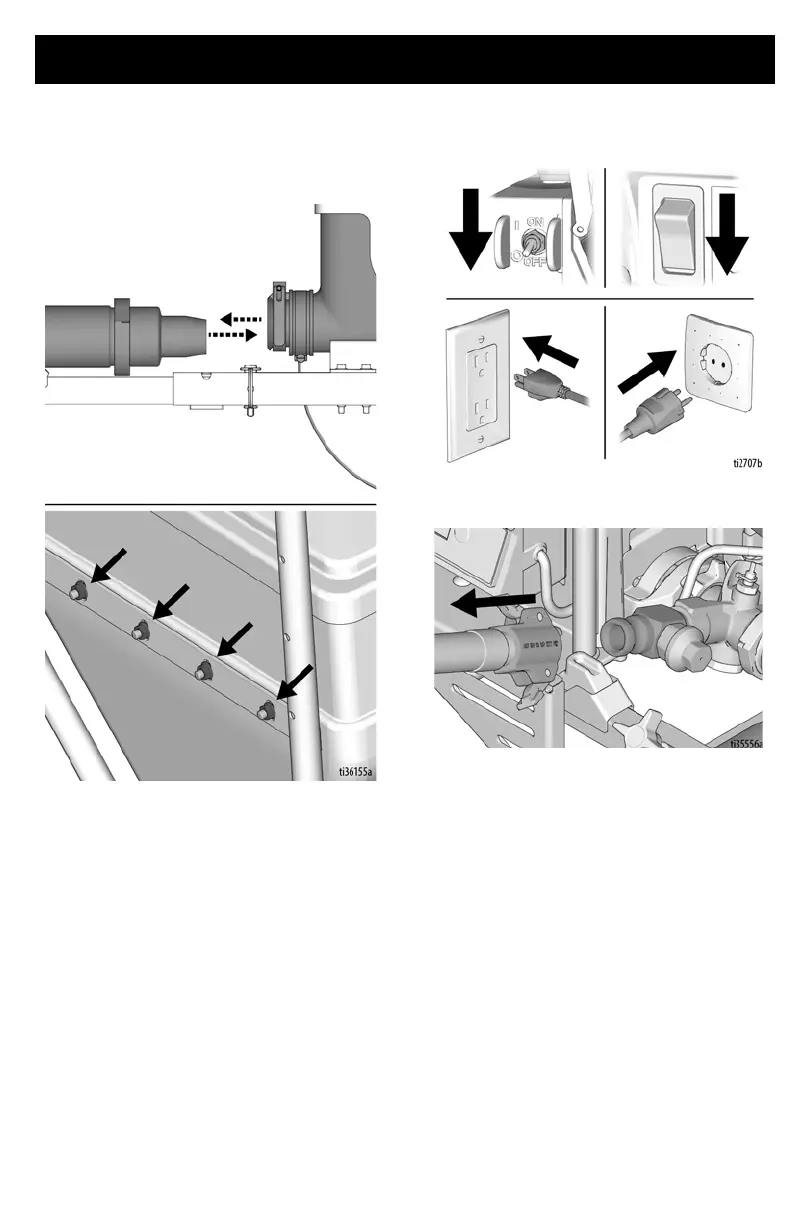

If hopper and pump do not align
, loosen
four nuts on back of hopper. Make sure
hopper and pump are aligned and th
en
tighten four nuts.
7.
Turn ON/OFF Switch to OFF.
Connect
power cord.
8.
Remove pump plug. Connect material
hose to
pump outlet.
22
24
