Repair
52 3A6748B

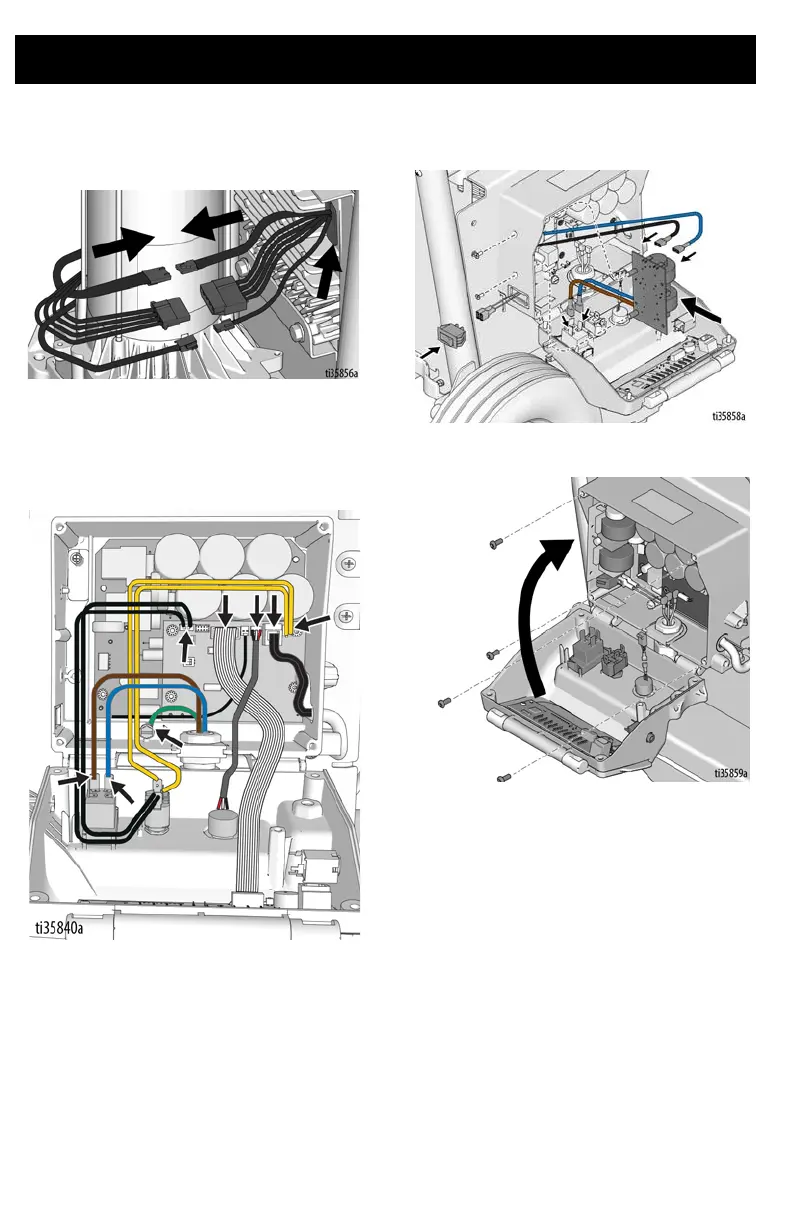

2. Connect motor leads, thermal switch,
and motor hall/encoder sensor. Install
grommet.
3. Reference Wiring Diagrams, page 82.
Connect mode switch (yellow and
black), transducer, potentiometer, amp
switch, LED display filter board (black,
blue).
4. Install filter board in control box with two
screws. Install amp switch.
5. Close cover and install four screws.
