249
Detail program description - Multi-channel
Note:
Due to technical reasons, servos connected to a 1/4
C NAUTIC Multi-Prop mini decoder may operate
somewhat hesitatingly. This is not a fault.
Connection notes for the
Nautic-Expert switching module, order no. 4159
As many as 16 switched functions can be controlled
per switching module.
Eight loads, like lamps, LEDs, etc. – but not electric
motors – , with a load current of up to 0.7 A each can
be connected directly.
Two switch functions per connector socket are
possible via the three conductor cable, order no.
3941.6 , see bottom right fi gure.
Electric motors and loads drawing substantial current
should be connected by other means, e.g. via
switching modules. Ask your dealer about this.
M
6 (output: 5 ... 8)
5 (output 5 ... 8)
(Receiver power supply to the „B + -“
marked terminals)
Best.-Nr. 4159
Max. 8 x 0,7 A
Batt. 3...30V
NAUTIC - Expert
Schaltbaustein
2 - 16 K
Empfänger
1- H -2
1- G -2
1- F -2
1- E -2
1- D -2
1- C -2
1- A -2
1- B -2
Best.-Nr. 4142.N
1/4 K
NAUTIC
Multi-Prop-
Mini-Decoder
RX
S 4
S 3
S 2
S 1
external power-
supply 3 ... 30 V
- +
+
-
Current consumption of directly
connected consumer units
(but no electric motors)
max. 0,7 A (total max. 8 x 0,7 A).
Wiring for direct connection of two consumer units at one output
3-pole cable with flat connector Order No. 3941.6
red
brown
orange
consumer
unit
max. 0,7 A
consumer
unit
max. 0,7 A
additional modules e.g....
Switching module high voltage SXH Order No. 3970
Switching module multi function SXM Order No. 3971
Switching module
high voltage
SXH Order No. 3970
Switching
module
SXH
Switching
module
SXM
Switching module
multi function
SXM Order No. 3971
Soundswitch
Order No. 2382
Light module
Order No. 2381
7 (output: 5 ... 8)
8 (output: 5 ... 8)
additional servos, speed controller,
sail winch, ... also on this side

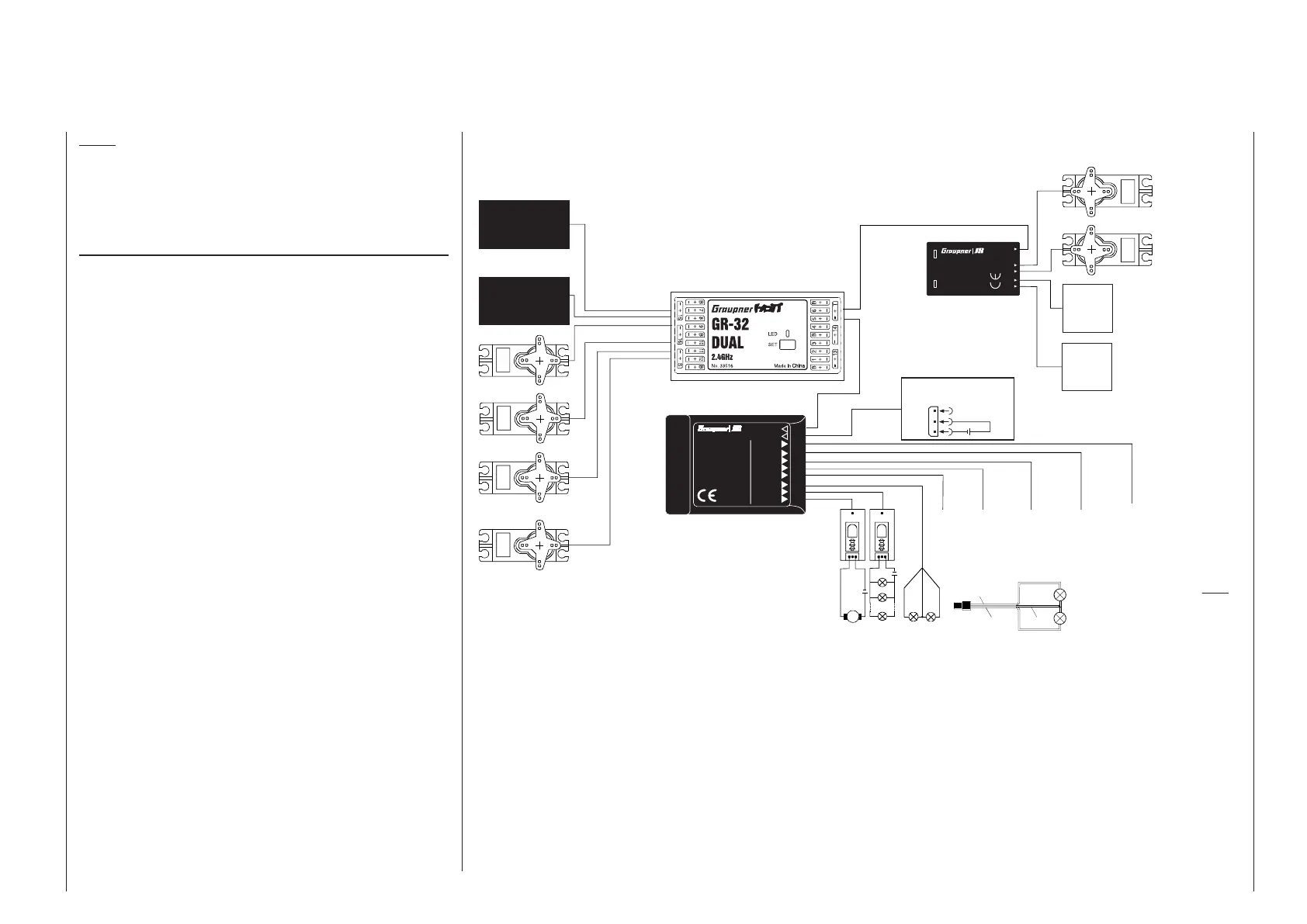

The figure shows an example of the connectivity of the ' 2-16 C NAUTIC
Expert Switch building block "," 1/4 K NAUTIC Multi-Prop Mini-Decoder ",
" light module "and" sound switch ". Two of these modules in parallel can
be operated using the menu »Multi channel« on output 5 ... 8.
Before first time operation of the NAUTIC modules make the above described settings.
Connection example with the Graupner HoTT GR-16 receiver
