259

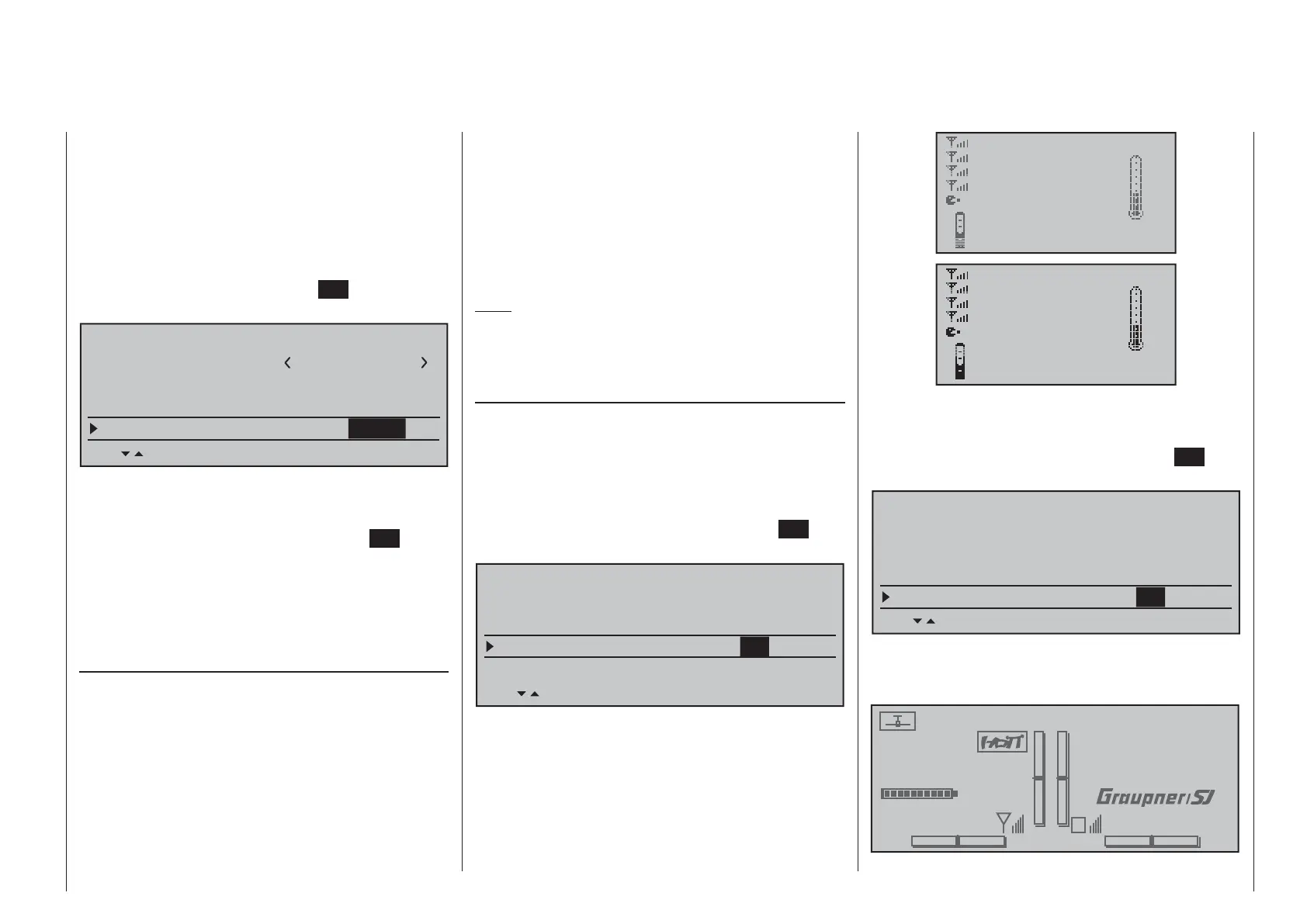

Detail program description - Basic settings
In a manner similar to "Pre-set stick mode, in this
»General basic settings« menu the selection made
for the "Pre-set DSC Output" line will determine which
of the four possible modulation types will be adopted
as the default variant for a newly initialized model
memory.
If necessary, use the cd selection keys of the left
or right touch pad to switch to the "DSC Output" line
then, with a brief tap on the center
SET key of the
right touch pad, activate the value window:
H-J Sandbrunner
GENERAL BASIC SETTINGS
Owners name
Pre-set stick mode
1
H-J Sandbrunner
Pre-set modulation
HoTT
SEL
Pre-set DSC Output
PPM10
Now a choice can be made from among the four
possible modulation types: "PPM10", "PPM16",
"PPM18" and "PPM24", with the selection keys of the
right touch pad. Another tap on the center
SET key of
the right touch pad will conclude the entry.
A simultaneous tap on the cd or ef keys of the
right touch pad (CLEAR) will reset this option back to
"PPM10".
Pre-set Pitch min
(only relevant to helicopter models)
In a manner similar to the previously described
options "Stick mode" and "DSC Output", enter
the preferred actuation direction for the throttle/
pitch joystick on this line so the choice will already
be present by default for model memories newly
initialized in the future. The functionality of all other
helicopter program options (to the extent they affect
throttle and/or pitch) are dependent on this setting; in
other words the throttle curve, idle trim, Channel 1 ¼
tail rotor mixer, etc.
This means:
"fwd.": minimum front pitch setting, the pitch
joystick (C1) points away from the pilot.
"back": minimum rear pitch setting, the pitch
joystick (C1) points towards the pilot.
A simultaneous tap on the cd or ef keys of the
right touch pad (CLEAR) will set this option to "rear".
Note:
The C1 joystick's control direction for "Throttle min
front/rear" in the fi xed-wing program can be changed
individually in the »Model type« menu.
Contrast, upper display / lower display
In assure optimal legibility of
mc-20 HoTT displays
under all weather and temperature conditions, their
contrast settings can be adjusted separately.
Contrast for the forward display, located between the
switch panels, is adjusted by selecting the "Top LCD
contrast" line with the selection keys of the left or right
touch pad then briefl y tapping on the center
SET key
of the right touch pad.
Pre-set DSC Output
PPM10
SEL
Top LCD contrast
0
Bottom LCD contrast
0
GENERAL BASIC SETTINGS
Pre-set Pitch min.
rear
Now display contrast can be adjusted in the value
fi eld displayed in inverse video within a range of ±20
by using the selection keys of the right touch pad.
RX–S QUA: 100%
RX–S STR: 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–VOLT:4.8 TMP
L–PACK: 10ms
CH OUTPUT TYPE:ONCE
R-LOW V:4.6 +22°C
RX–S QUA: 100%
RX–S STR: 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–VOLT:4.8 TMP
L–PACK: 10ms
CH OUTPUT TYPE:ONCE
R-LOW V:4.6 +22°C
Contrast for the rear display, located between the
touch pads, is adjusted by selecting the "Bottom LCD
contrast" line with the selection keys of the left or right
touch pad then briefl y tapping on the center
SET key
of the right touch pad.
Pre-set DSC Output
PPM10
SEL
Top LCD contrast
0
Bottom LCD contrast
0
GENERAL BASIC SETTINGS
Pre-set Pitch min.
rear
Now display contrast can be adjusted in the value
fi eld displayed in inverse video within a range of ±20
by using the selection keys of the right touch pad.
#01
0:00h
Stop watch
Flight tim
K78
0:00.0
4.1V
0:00.0
00
0
0
0:00h
M
V
H-J Sandbrunner
Graubele
RX VOLT:4.9V
