295
Programming examples - Using fl ight phases

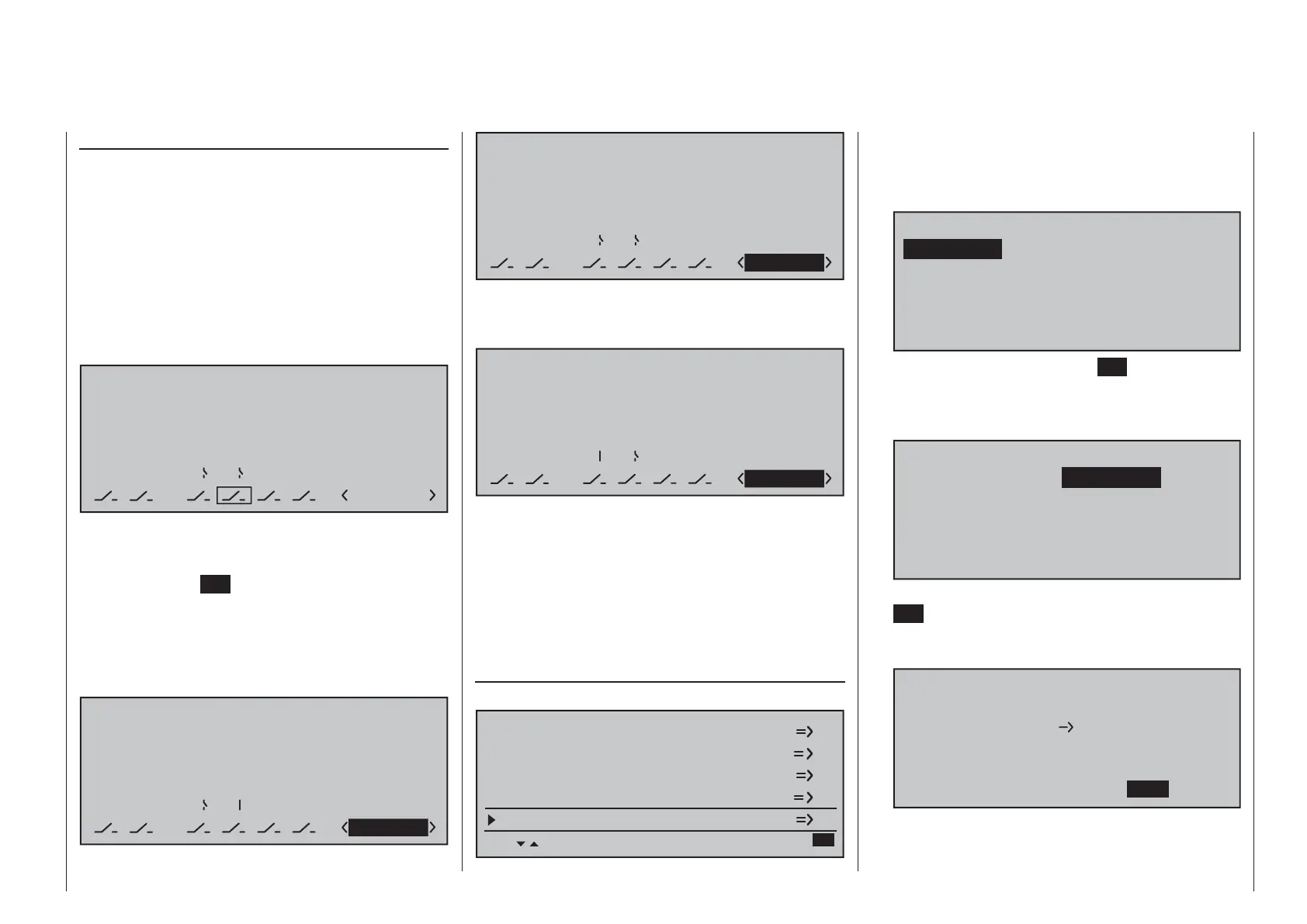

»Phase assignment« (page 148)
… and assign the previously defi ned fl ight phases
to appropriate switches with which a selection from
among three phases is possible.
Since there is no particular priority here, assign
for example switch "C" in the display to one of the
two end settings of one of the two 3-way switches.
Afterward put the selected switch again into its middle
position, activate the switch assignment under "D"
then move the selected 3-way switch again out of its
middle position and into the other end position, as
shown below:
PHASEASSIGNMENT
Prior.
C
1 Normal
combi
A
BDEF
2 67
After the switch assignment is complete, use the
selection keys to switch to the bottom right and
activate the assignment of phase names with a brief
tap on the center
SET key of the right touch pad.
Now close switch "7" by moving the selected 3-way
switch forward.
Assign the name "<2 Thermal>" to this switch
position and leave the name of its "OFF" position
as "<1 normal>".
PHASEASSIGNMENT
Prior.
C
combi
A
BDEF
2 67
2 Thermal
PHASEASSIGNMENT
Prior.
C
combi
A
BDEF
2 67
1 Normal
Finally, move the 3-way switch to the rear toward its
"6 o'clock position" and assign this switch position the
name "<3 Speed>":
PHASEASSIGNMENT
Prior.
C
combi
A
BDEF
2 67
3 Speed
The phase names selected in the programming are
now shown, depending on the switch status, in all
fl ight-phase dependent menus, see the table on
page 140.
Since we have already made some settings in fl ight-
phase dependent menus, such as in the »Wing mixers«
menu, we will now copy these settings to the «Thermal»
fl ight phase. For this purpose, open the menu …
»Copy / Erase« (page 72)
… and switch to the "Copy fl ight phase" line:
Copy flight phase
Erase model
Copy model –> model
Export to SD
Import from SD
=>
All eight possible fl ight phases are listed in "Copy
from phase":
Select the fl ight phase to be copied, e.g. 1.
"1 Normal".
7
Copy from phase:
3
5
=>
=>
2
4
6
1
8
Normal Thermal
Speed
With a brief tap on the center 2. SET key of the right
touch pad, switch the window to entry of the target
memory "Copy to phase".
Select phase "2 Thermal" as the target:3.
7
Kopieren to phase:
3
5
=>
=>
4
6
1
8
Normal
Speed
Thermal
2
Confi rm the selection 4. with a brief tap on the center
SET key of the right touch pad.
A security query follows, who should be confi rmed 5.
with "Yes":
Phase to:
to be copied?
NO
1 Normal
2 Thermal
YES
Then repeat the process with fl ight phase "3 Speed".6.
