53
Touch
Touch
Touch

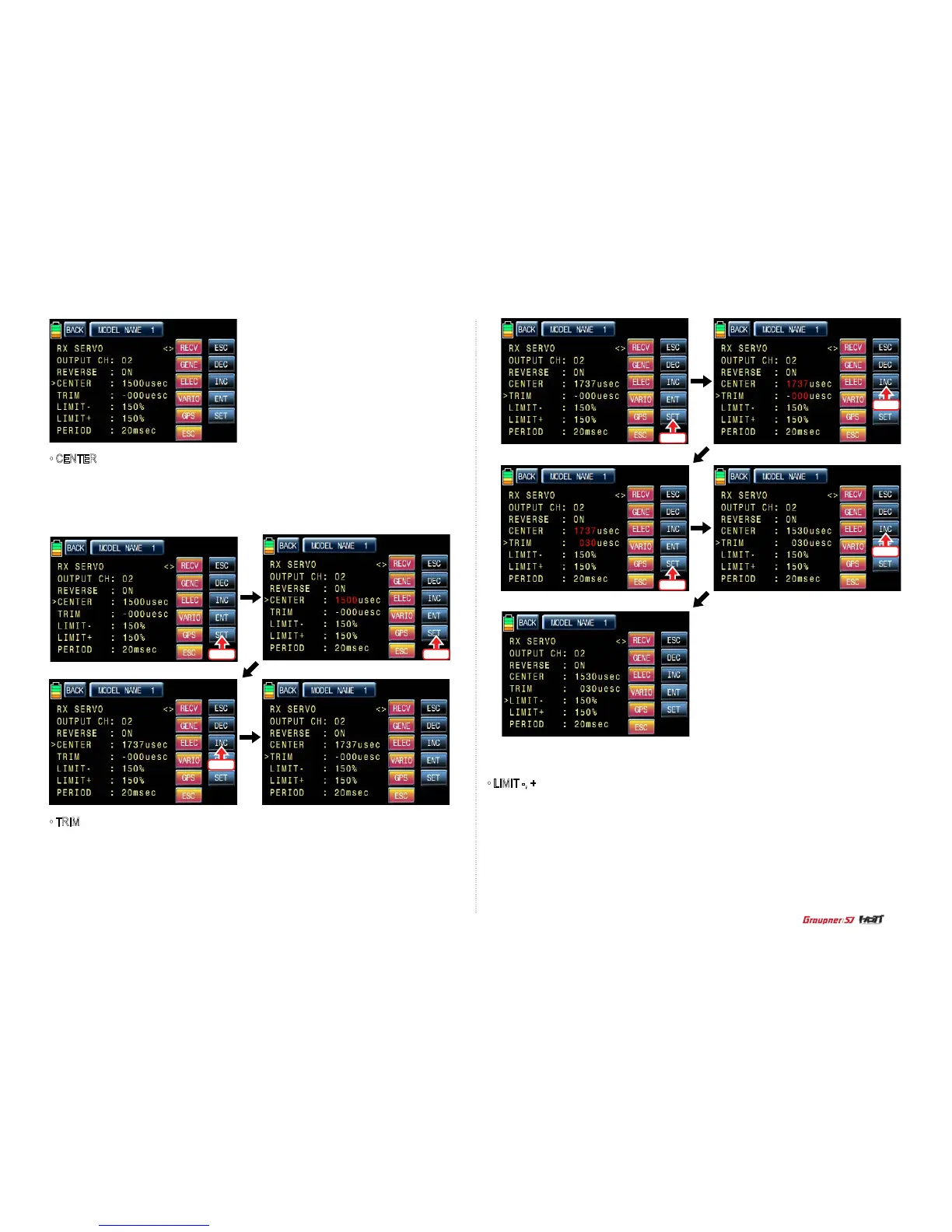

• CENTER
It is used to set the “center position” of servo.
Touch “SET” icon to activate the value in red. Move and hold the throttle stick to the desired
position for the servo center and touch “SET” icon then that position is assigned to the servo
center and the relevant value is displayed. Touch INC button to move the cursor to “TRIM”
Touch
Touch
Touch
Touch
• TRIM
It is used to set the servo’s “Trim position”.
Touch “SET” icon then the values of CENTER and TRIM are activated in red. Adjust TRIM
values with INC and DEC buttons and touch “SET” icon again to deactivate the value. Touch
INC button to move the cursor to “LIMIT -”
NOTICE: When TRIM value is adjusted, the default value of CENTER, 1500usec, is automati-
cally set and the trim setup value is added to 1500usec.
• LIMIT -, +
The function supports the adjustment of servo’s maximum travel amount for +,- direction.
150% is set by default. Since LIMIT -, + function is regulated by SERVO EPA of transmitter,
you need to adjust SERVO EPA of transmitter to 150% to use 150% of LIMIT -, +
Touch “SET” icon to activate the value in red and adjust the value with INC and DEC
buttons. Touch “SET” icon again to deactivate the value and touch INC button to move the
cursor to “PERIOD”.
