4.4 Connections of Field Devices
Loop interface board combines GST5000 FACP and field devices.

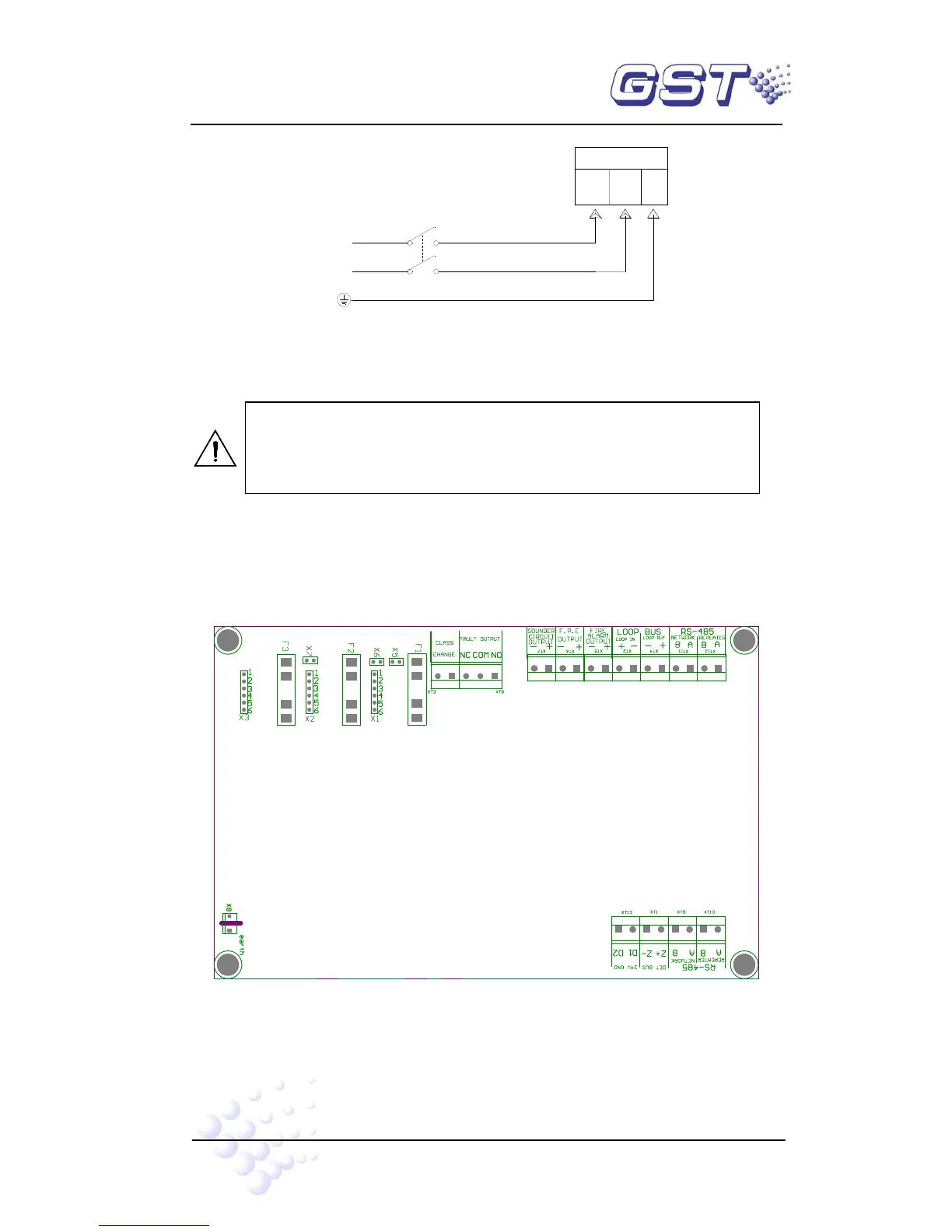

Terminals of loop interface board are shown in Fig. 4-3.
Fig. 4-3
Description:
 CLASS CHANGE (XT3): Short it to make the sounders output.
 FAULT OUTPUT (XT8): Normally open contact is closed when fault signal
Caution: Do not connect power to your device until you have
completed all input and output connections. Fail to do so may
result in injury!
