11 Accessories
11.1 PLC connecting cable
The following M12 cables are permitted for the product FlexxPump 402 /
404DLS:
Material number Designation
Round plug connector M12 4-pin
prefitted LED
0200513 Length 1 m
0152900 Length 2 m
0200515 Length 5 m
0200516 Length 10 m
0200517 Length 20 m
Table11-1 PLC connecting cable
The PLC connecting cables are equipped with three colored LEDs:
LED color Meaning
Green Voltage on PIN 1
Yellow Signal on PIN 4
White Signal on PIN 2
Table11-2 PLC connecting cable: Meaning of the LED color
D003115
A
D C B

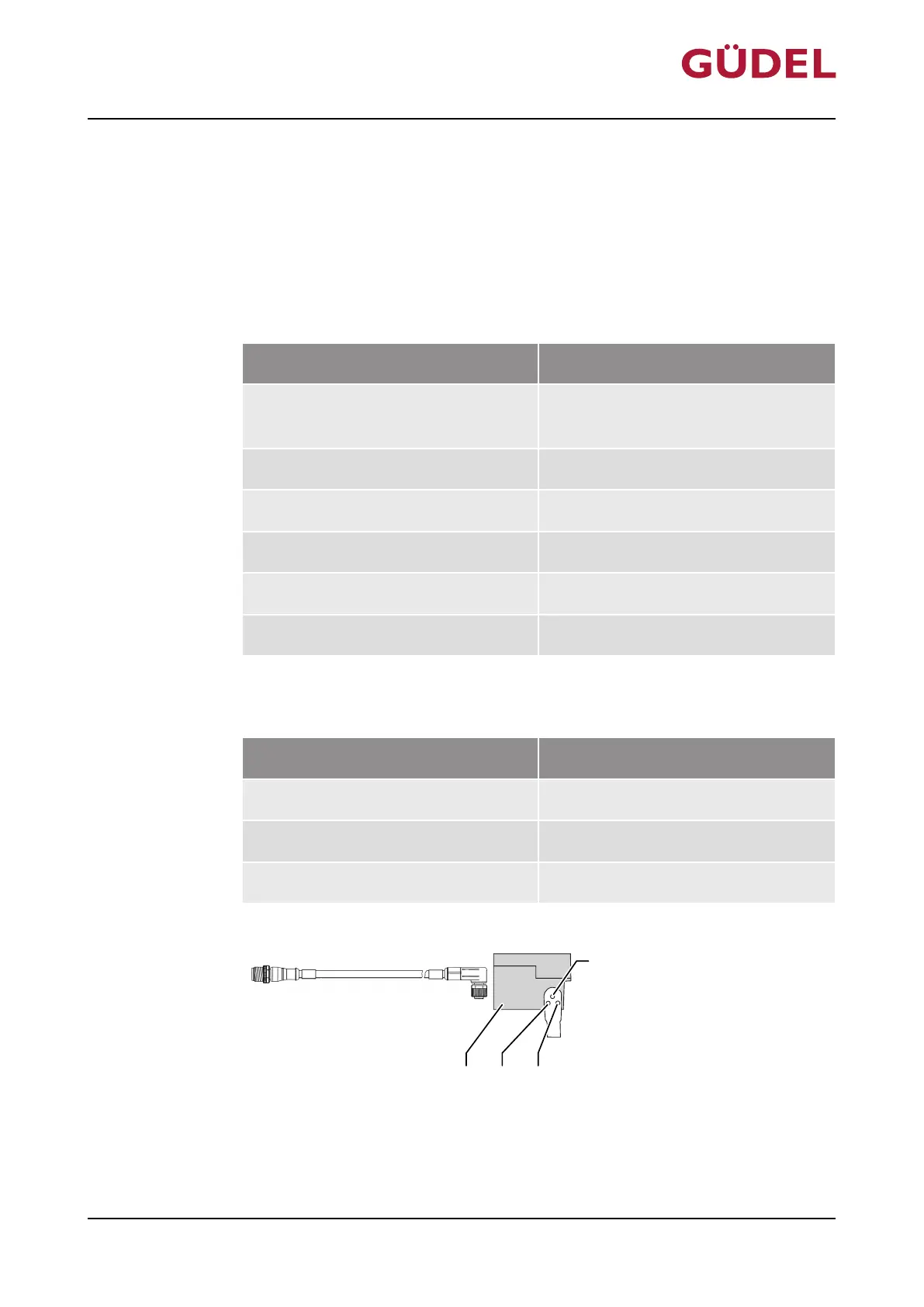

Fig.11-1 PLC connecting cable
A LED white C LED yellow
B LED green D FlexxPump
