4.1.1 Detailed design of FlexxPump 402
The FlexxPump 402 consists of the following elements:

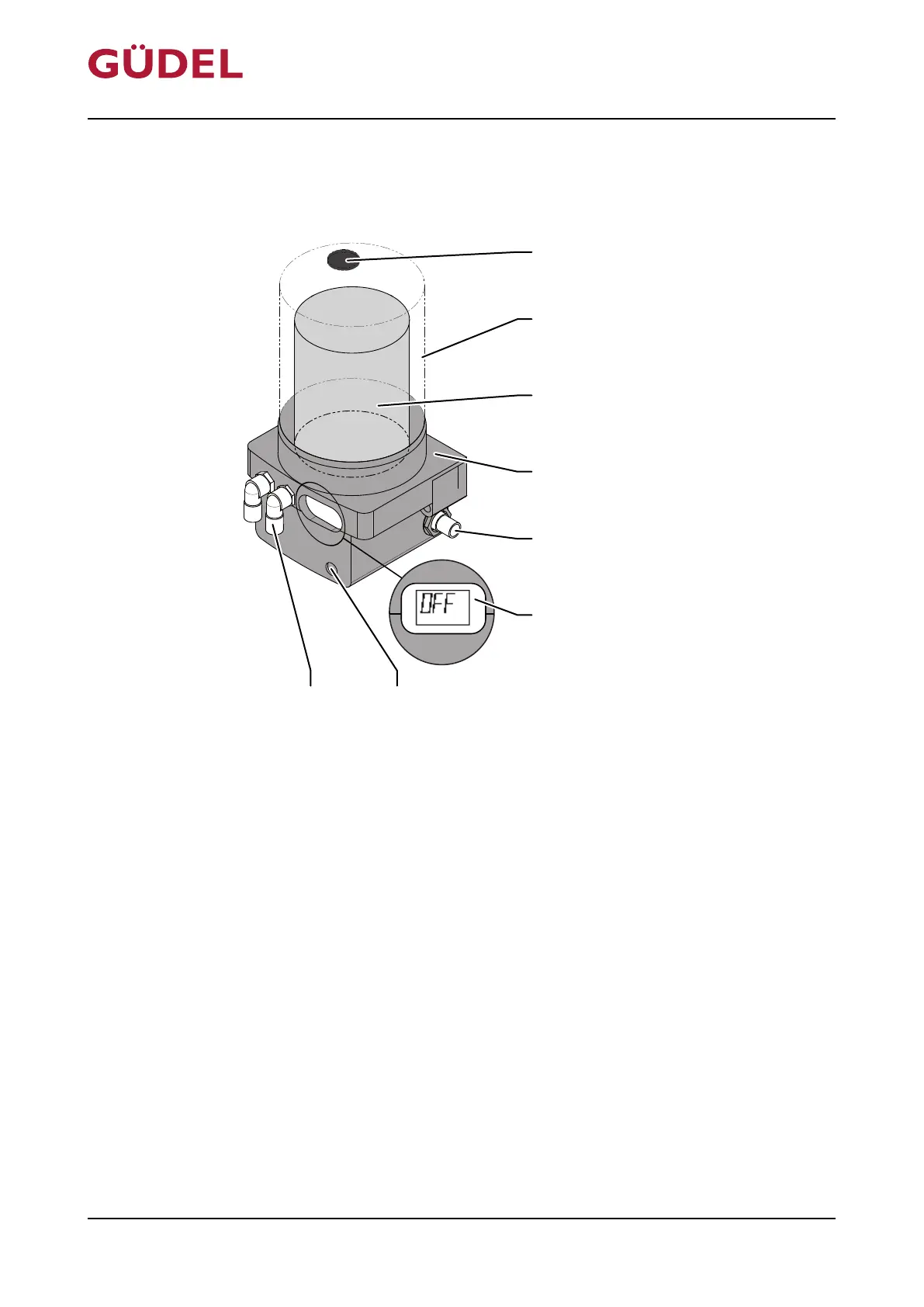

Fig.4-2 Detailed design of FlexxPump 402
A Vent locking mechanism, including mag-
netic peg
E Connection plug for supply and commu-
nication with control system
B Covering F LCD display
C Cartridge G Active surface
D Casing H Hydraulic outputs
