5.3.3.2 402/402B 6-fold
System with 6 lubrication points
D003488
A B C D
G F E

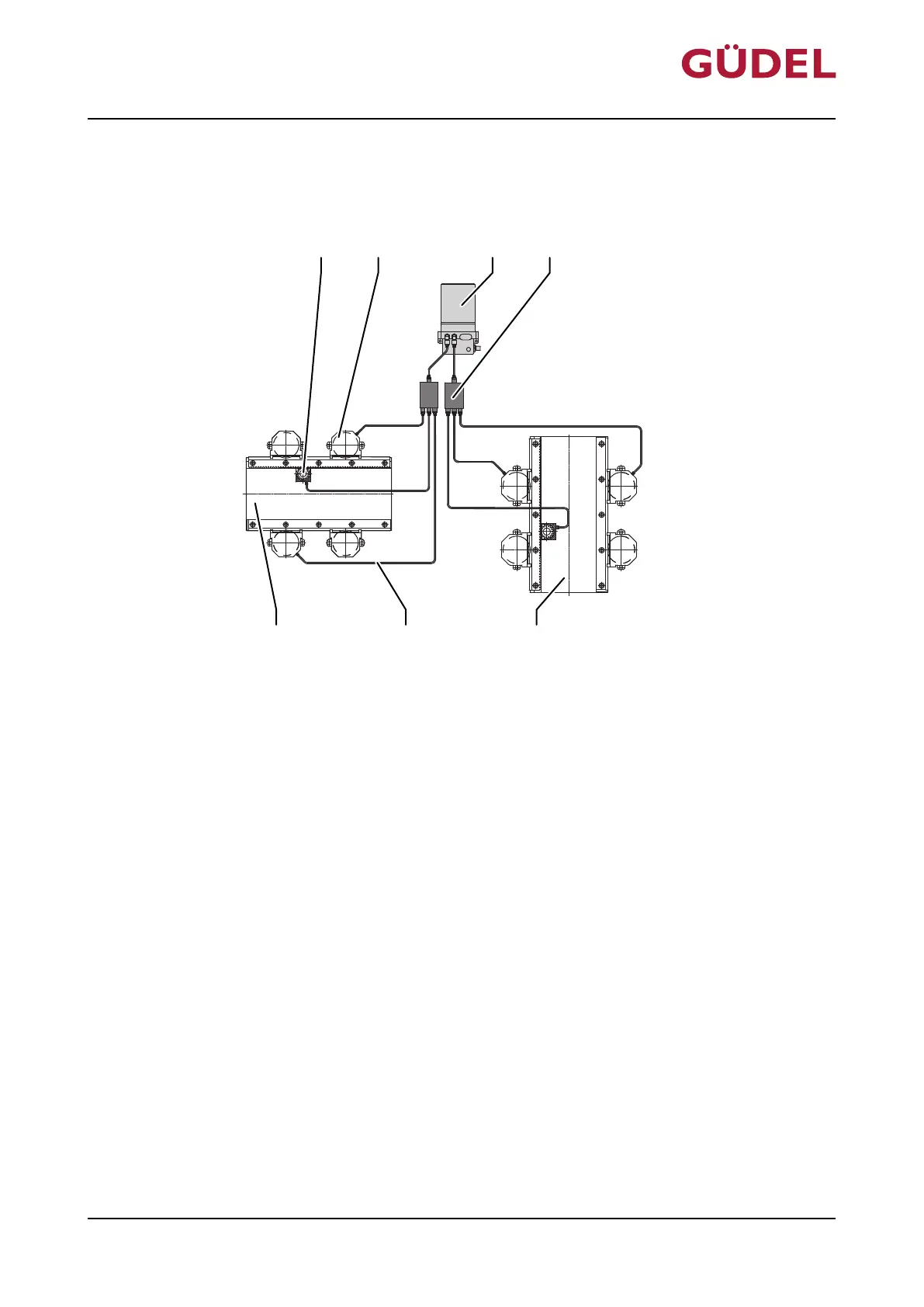

Fig.5-4 Design 402/402B 6-fold
A Lubricating pinion (not included in the
scope of delivery)
E 2rd axle (not included in the scope of
delivery)
B Lubricating element for guideway rails
(not included in the scope of delivery)
F Hydraulic hose diameter 6/3mm
C FlexxPump 402/402B G 1st axle (not included in the scope of de-
livery)
D 3x Splitters
