7.3.5.3 Connect hydraulics
402/402B 3-fold
System with 3 lubrication points
D003487
A B C
D
F E

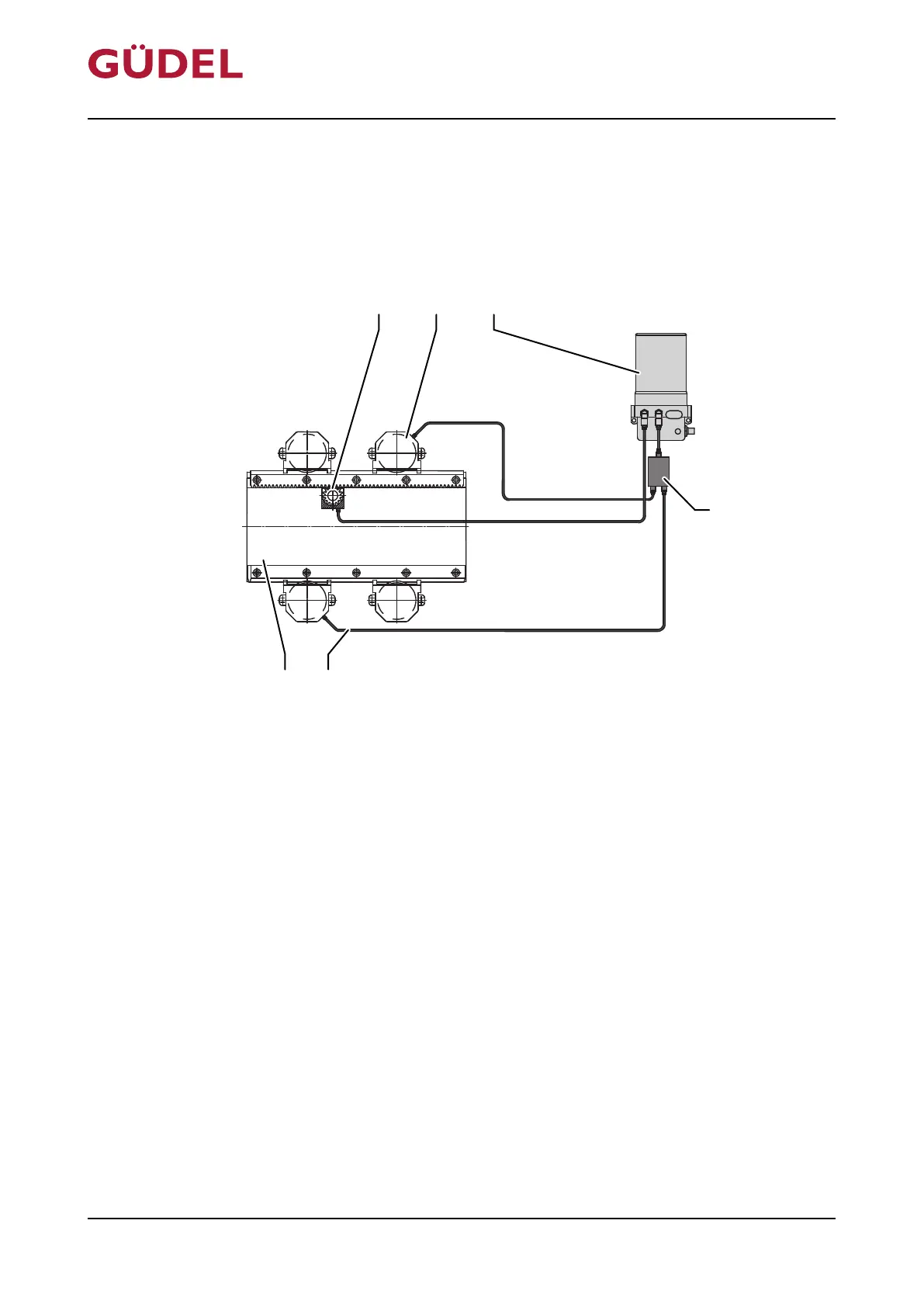

Fig.7-7 Design 402/402B 3-fold
A Lubricating pinion (not included in the
scope of delivery)
D 2x Splitters
B Lubricating element for guideway rails
(not included in the scope of delivery)
E Hydraulic hose diameter 6/3mm
C FlexxPump 402/402B F 1st axle (not included in the scope of de-
livery)
