GUDEL FlexxPump 402 - Display Elements; Fig. 4 -4 Display Element and Malfunctions

4.2.2.3 Display elements
The LCD displays indicates malfunctions and operating states of the pump
types 402/402B.
The flashing interval of the green LEDs lets you distinguish between the
pump types 402/402B during operation:
• 5 seconds, 402
• 60 seconds, 402B
OFF
E1
E2
E3
E4
E5
A
B
C
D
E
F
G
H

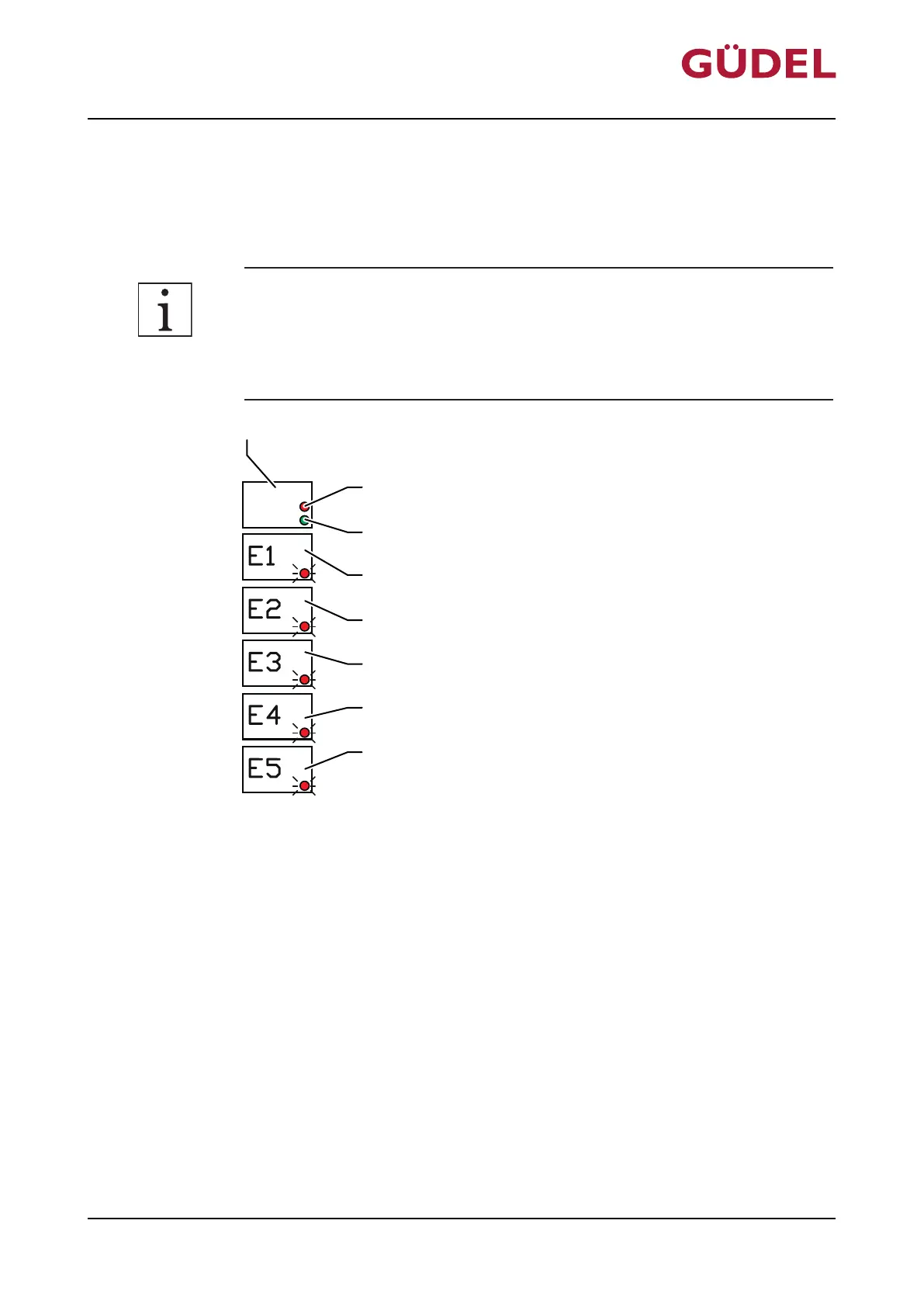

Fig.4-4 Display element and malfunctions
A Digit display E Fault message for overcurrent
B LED red F Fault message for operating voltage too
low
C LED green G Fault message; internal electrical error
D Fault message for "Empty" H Fault message; internal mechanical error
Design, function
OPERATING MANUAL Automatic lubrication system
FlexxPump 402 / 402B
