5.4.2.1 Lubrication cycle
run
10
12
On
2 MAX
1 MAX
A
B
C

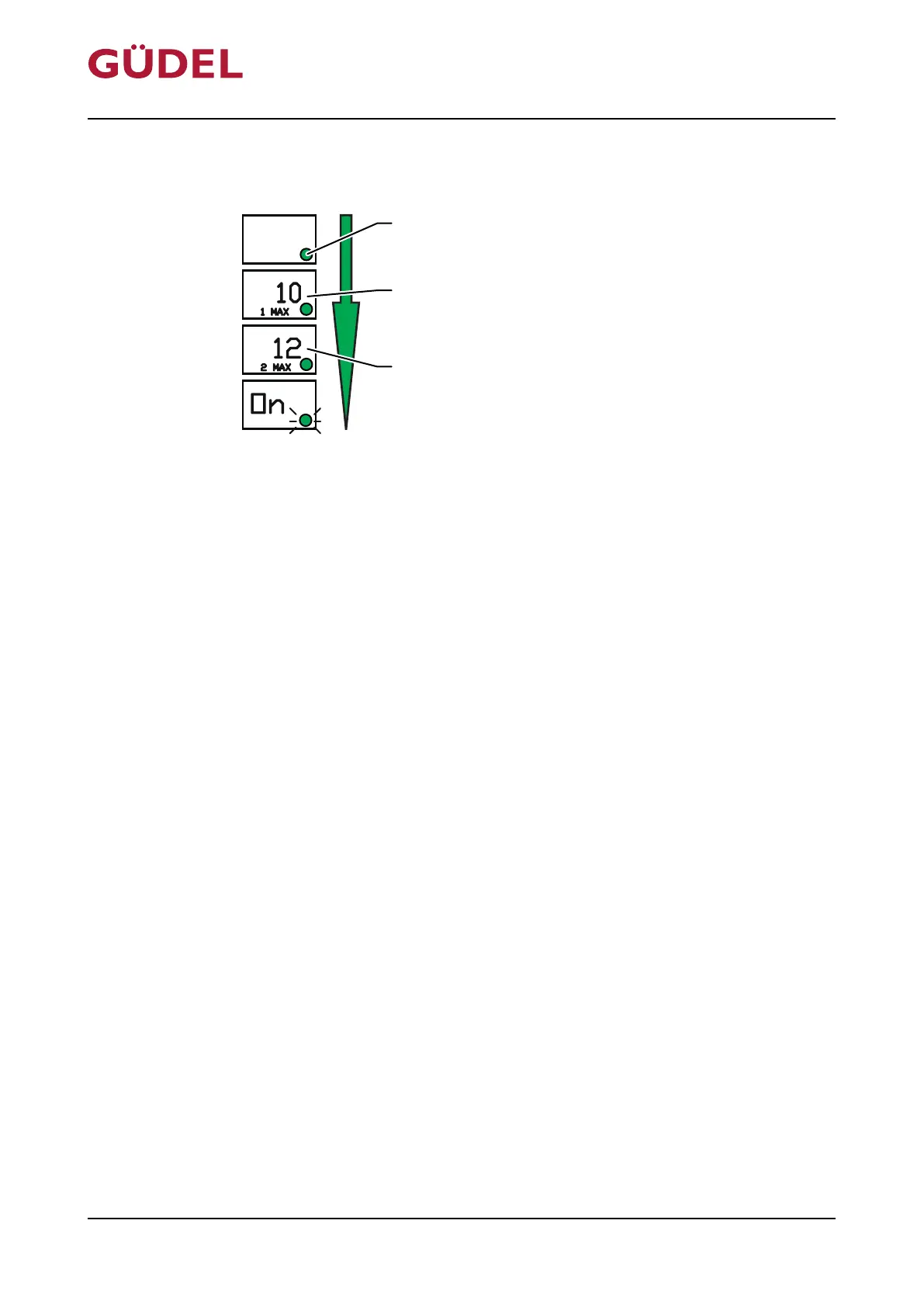

Fig.5-9 Lubrication cycle
A LED green
B Pressure of Hydraulic Output 1.1 in bar
C Pressure of Hydraulic Output 1.2 in bar
The green LED glows during the lubrication cycle. The displayed pressure cor-
responds to the pressure from the hydraulic output to the lubrication point.
The next lubrication cycle starts according to the setting of the lubrication cy-
cle.
5.4.2.2 Special dispensing
The special dispensing serves to feed smaller amounts of lubricant for testing
and experimentation purposes.
Carry out the special dispensing as follows:
Prerequisite:The FlexxPump is switched on
1 Touch the active surface with the magnetic peg
2 Wait for LED to flash 2x
3 Remove magnetic peg
Special dispensing is carried out.
