GUDEL FlexxPump 402 - Fig. 5 -8 Display Sequence of Display LCD; Switching on the Flexxpump

Check the connections of the hydraulic system before starting up the prod-
uct.
5.4.2 Switching on the FlexxPump 402/402B
OFF
C01
r01
A02
P12
P01
1
2
On
A
B
C
D
E
F
H
G

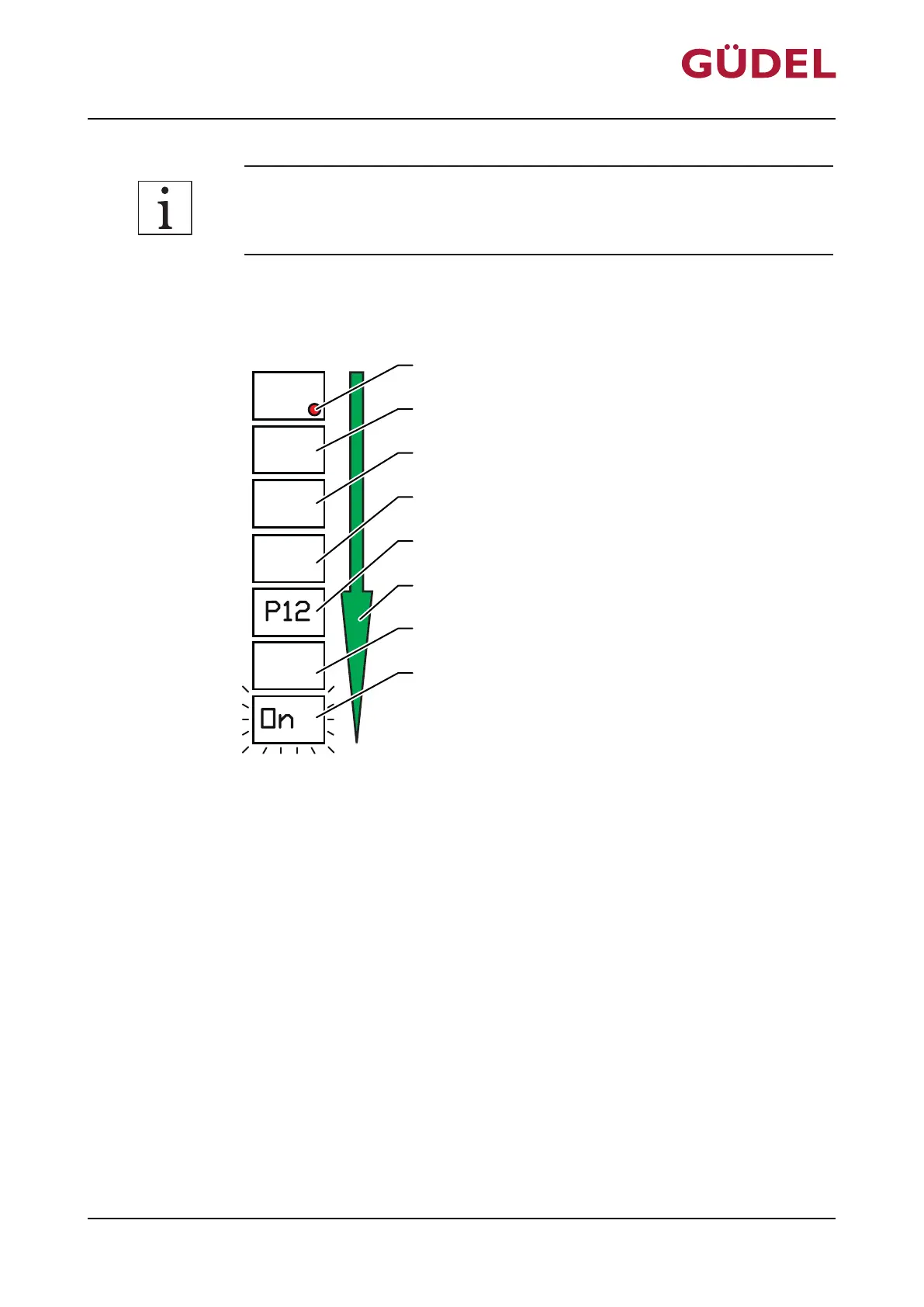

Fig.5-8 Display sequence of display LCD
A LED red E Emptying time P1 of cartridge in months
B Software number F Sequence of display
C Software release G Lubrication quantity P2
D Number of hydraulic outputs H FlexxPump switched on
Switch on the FlexxPump 402/402B as follows:
1 Touch the active surface with the magnetic peg
2 Wait for LED to flash 3x
3 Remove magnetic peg
The FlexxPump is switched on.
The FlexxPump lubricates according to the stored settings.
Commissioning
OPERATING MANUAL Automatic lubrication system
FlexxPump 402 / 402B
