GUDEL FlexxPump 402 - Fig. 3 -3 Dimensions and Connections 402; Table 3-1 Operating Voltage

3.3.1 FlexxPump
3.3.1.1 Dimensions and connections 402
The FlexxPump 402 weighs approx. 1500g and has the following dimensions:
D003485
94
110
96
107
112
35,3
196
A
B

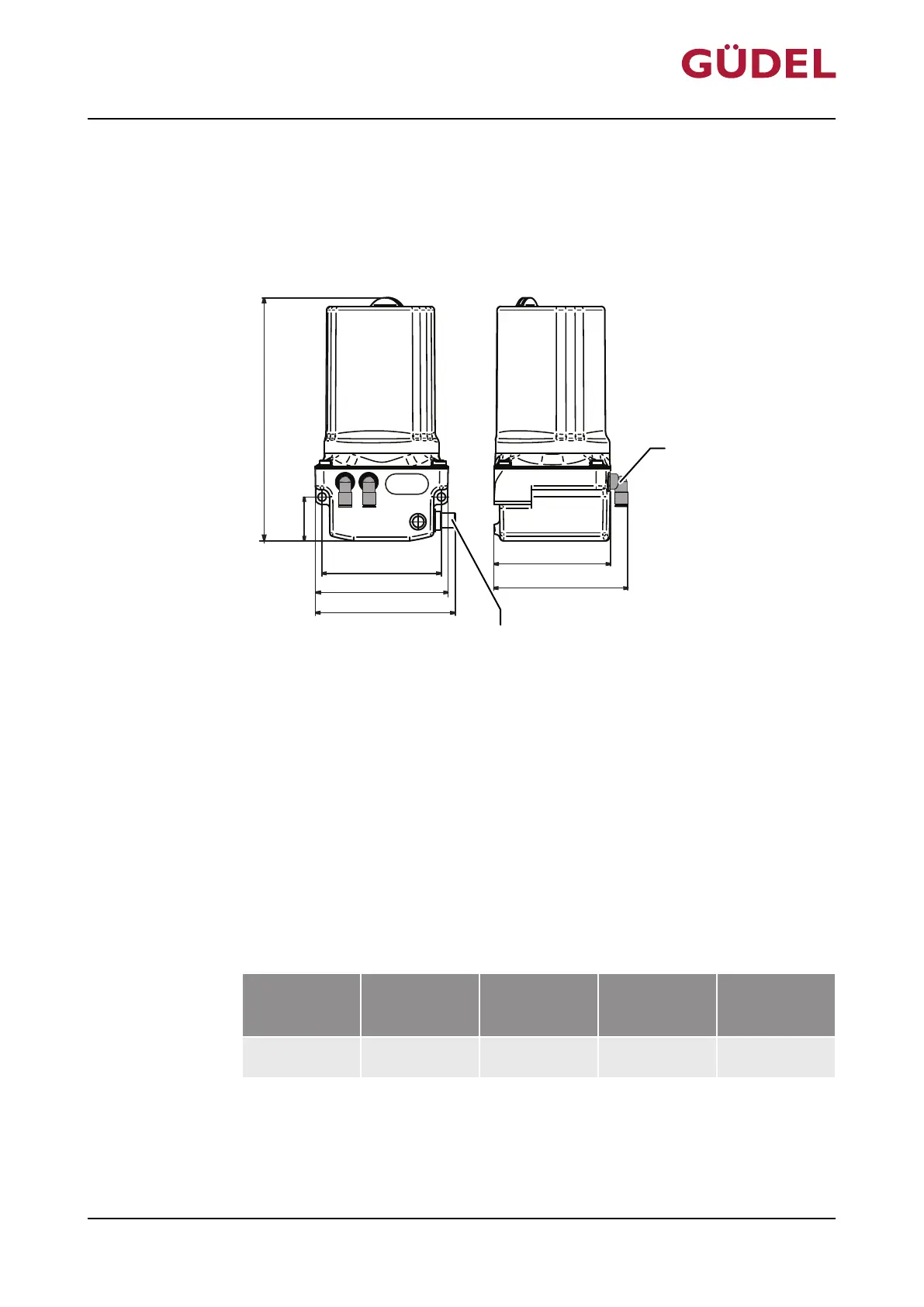

Fig.3-3 Dimensions and connections 402
A Hydraulic outputs
B Connection plug M12x1
Connections
Hydraulic:
• Two connections for hydraulic tubes with a diameter of 6/3mm
Electrical: The four-pole connection size M12x1 transmits the following sig-
nals:
• Error signals
• Operating voltage
Interface
Error signals can be transmitted to a programmable logic controller (PLC).
Operating voltage
Operating
voltage
Operating
power
Peak
power I
max
Standby
current
Peak out-
put power
24VDC 200mA 350mA <20mA 300mA
Table3-1 Operating voltage
