5.3.4.1 Connecting 402
A
B
C
E D

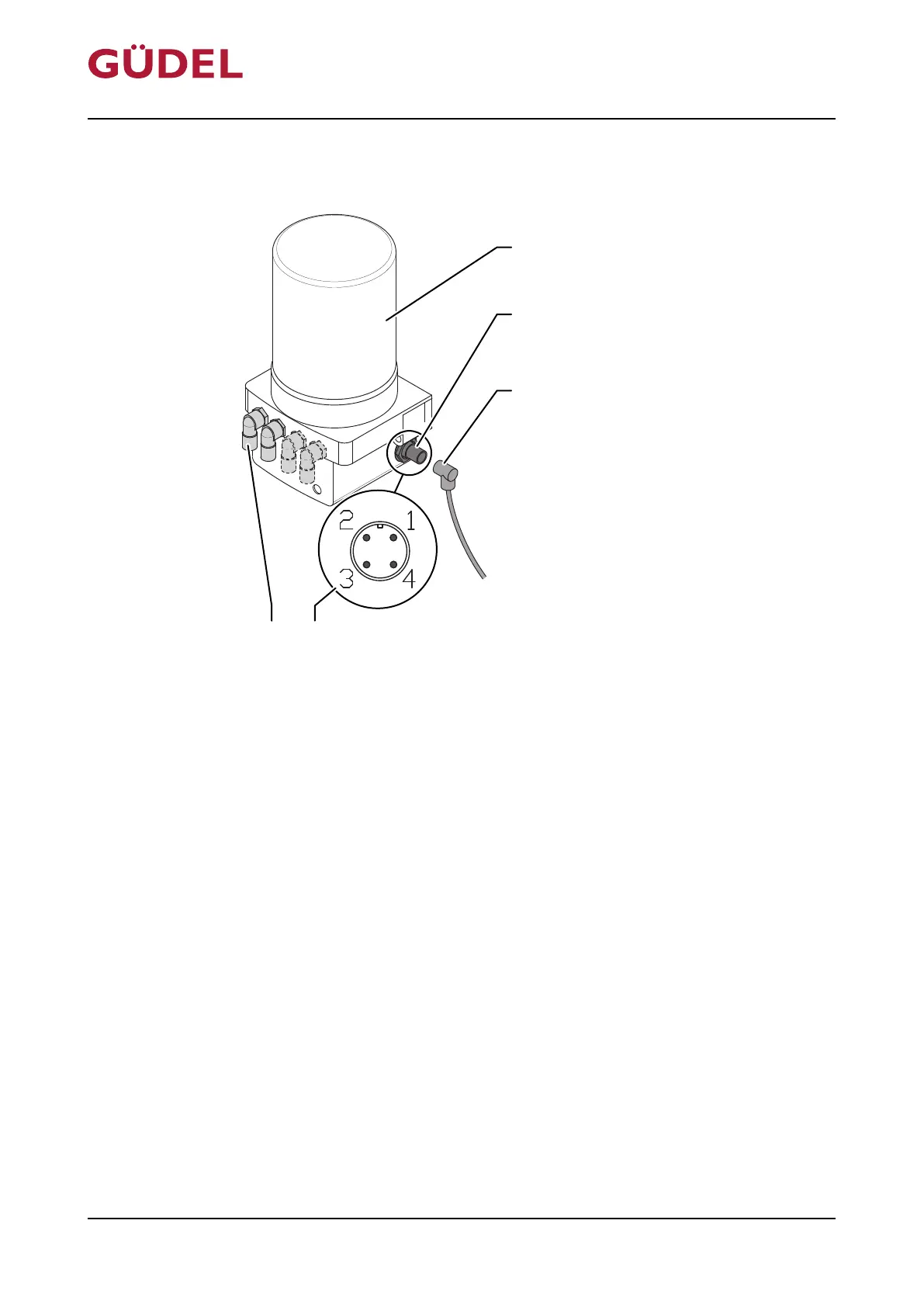

Fig.5-6 Connecting 402
A FlexxPump 402 D Connector pin assignment
B Connection plug for connecting cable E Hydraulic outputs
C Socket of connecting cable
Connect the product as follows:
1 Connect the hydraulic hoses Ü248
2 Screw the connecting cable to the connecting plug
3 Connecting cable
3.1 PIN 1: Input voltage 24 V DC, color: brown
3.2 PIN 2: without assignment (402)
3.3 PIN 3: Mass (GND), 0V, color: blue
3.4 PIN 4: Output signal, color: black
The product is connected
