Information about the FWB, FWQ distribution board range
Two cable routing flanges per panel
- 2 cable entries per panel (top and bottom), also available as accessory FZ426
- Flange at top / bottom made from 2 components with knobs for sticking through
- Internal cable entry surface: 191 x 75 mm
- Prepared for various cable diameters:
- 24 x Ø5 / 10.5 mm
- 11 x Ø9 / 11.5 mm
- 8 x Ø11 / 16 mm
- 2 x Ø16 / 32 mm
- 1 x Ø16 / 37 mm
-
Blatt-NrIndex
Kaufteilegruppe / purch.-part group Projekt / project Abteilung / departmentTeile / part-no.
Konstrukteur / technical designer:
Benennung / partname Fertigmaße / finished sizesPos. Stck/pcs
Gewicht
Schwindung/shrinkage:
Funktionsmaße
functional dimensions
a . . .
N
Nr.
Ersatz für:
replace :
Ersetzt durch:
replaced by:
Dicke / thickness
Bezeichnung:
designation:
Fortsetzung:
continued :
Volumen / volume
( cm
3
)
%
( mm )
Maßstab / scale
Format / size
Datum / date
Datum / date
Werkstoff / material
Geprüft / verified by
Behandlung / treatment
Gezeichnet / drawn by
A2
weight (g)
Farbe / color
/ / PE
/ - /
-
715.14 [.2]
Maße ohne Toleranzen nach
dimensions without tolerances by
DIN/ISO
22-Feb-21 -
/ /
Hager Electro GmbH & Co. KG
Zum Gunterstal
66440 Blieskastel
1:4
1ZN05600_ASM
a 1 / 1
/ /
Index
Änderungen/modifications
Kurzbeschreibung/ brief description Datum/date Name
/
/
/
/ /
/
/
/
/ /
/
/
/
/ /
Das URHEBERRECHT an dieser Zeichnung verbleibt uns. Sie darf ohne unsere SCHRIFTLICHE GENEHMIGUNG nicht kopiert oder Dritten zugänglich gemacht werden. The copyright of this draft remains to us. It's not allowed to copy or put the draft to provision in favor of a third party.

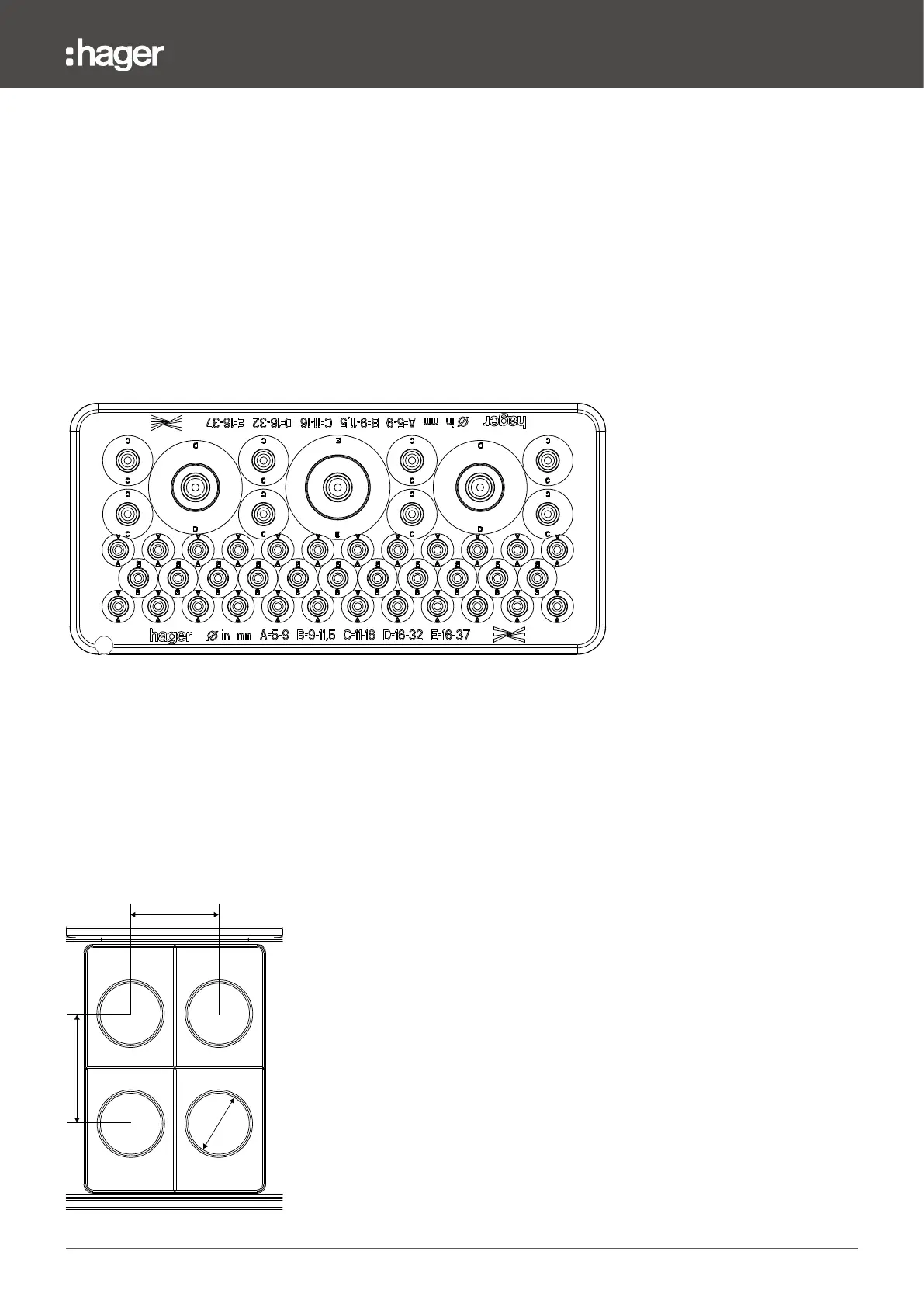

Hole pattern of the top / bottom cable entry flange FZ426
Rear cable entries
- 2 rear cable entries (top and bottom) in the top and bottom plastic parts are available in each panel with
a width of 250 mm
- Can be punched out from the outside (first slightly scratch the grooves with a knife)
- Max. cable entry surface: 112 x 82 mm
- With 4 pre-stamps for cutting out for cable routings Ø 29 mm
- Circumferential groove for cutting out for installation of the IP44 flange FZ428. It is recommended to cut out
the metal from the rear (prior to installing on the wall). Flange FZ428 is installed and screwed in from the front.
40
50
ø 29
Rear cable entries in the plastic top / bottom part
