34 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
4.2.4.7 FWBxxK1
Reference
FWB32K1
FWB42K1
FWB52K1
FWB53K1
FWB62K1
FWB63K1
FWB72K1

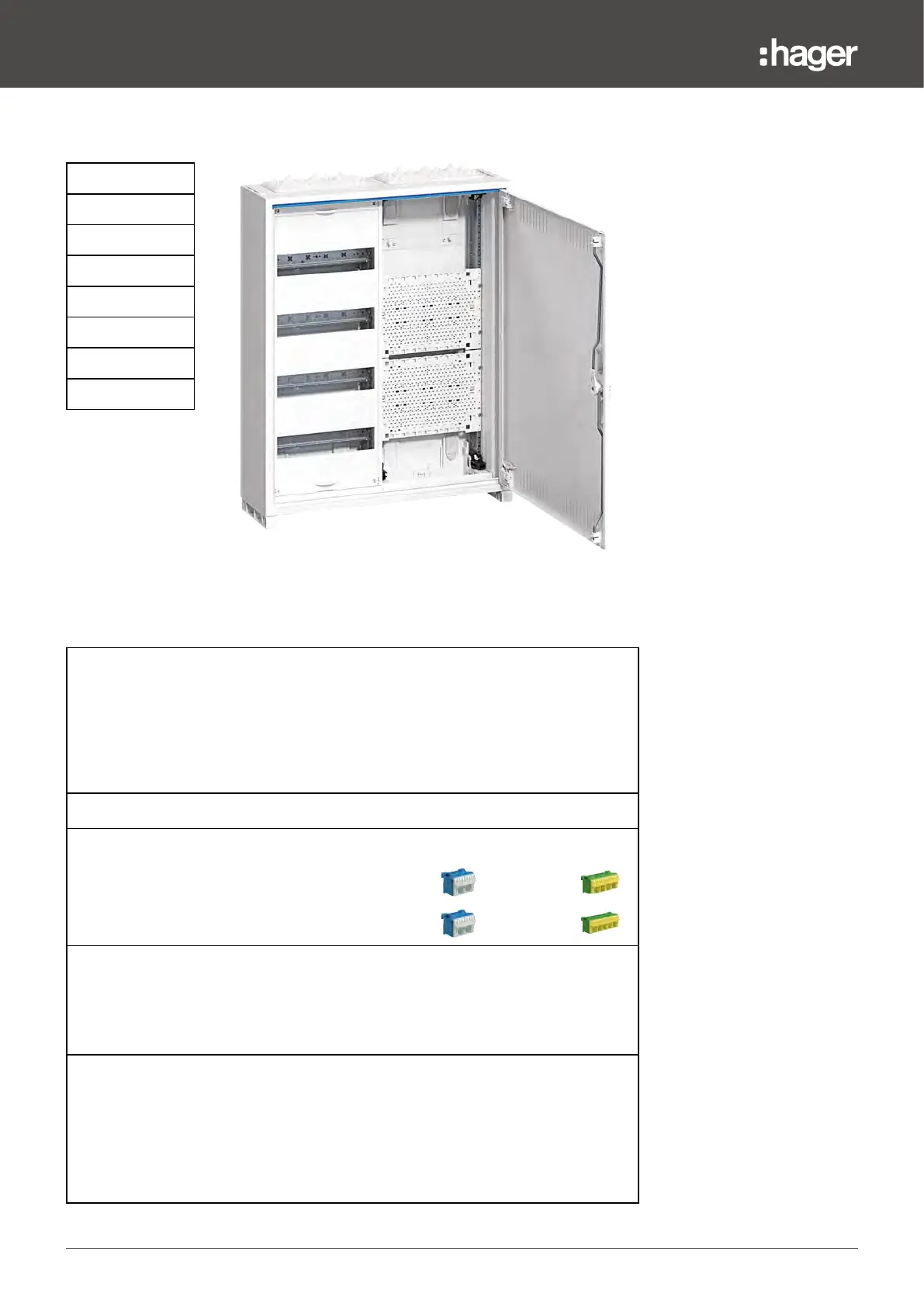

Example: FWB42K1
Protection class IP31, impact protection IK07
Internal system:
Distribution panel:
- Covers 250 mm width with 12 module
slot width. With 2 covers above each
other for size 7
- Distance between the DIN rails:
125mm
Multimedia panel:
- Pre-installed plastic mounting plates
- Number of mounting plates per size:
See UMx1UK
Pre-installed vertical partition between distribution and multimedia panel
QuickConnect connect configuration (at the top of each distribution panel)
Height 3: 2 x KN10N
+ KN18E
Height 4, 5, 6 and 7: 2 x KN10N + KN22E
Door:
- Slotted
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- 10 long and 10 short screws for the plastic mounting plate
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWB – installation instructions
- QuickConnect installation instructions
- Document pocket FZ794
