Information about the FWB, FWQ distribution board range
Empty: The order number includes one empty cabinet. Customer can optionally complete the cabinet with a
door and internal system. This version is particularly useful if the cabinet is to be installed at the construction
site at a much earlier date and the internal system planning has not yet been full completed.

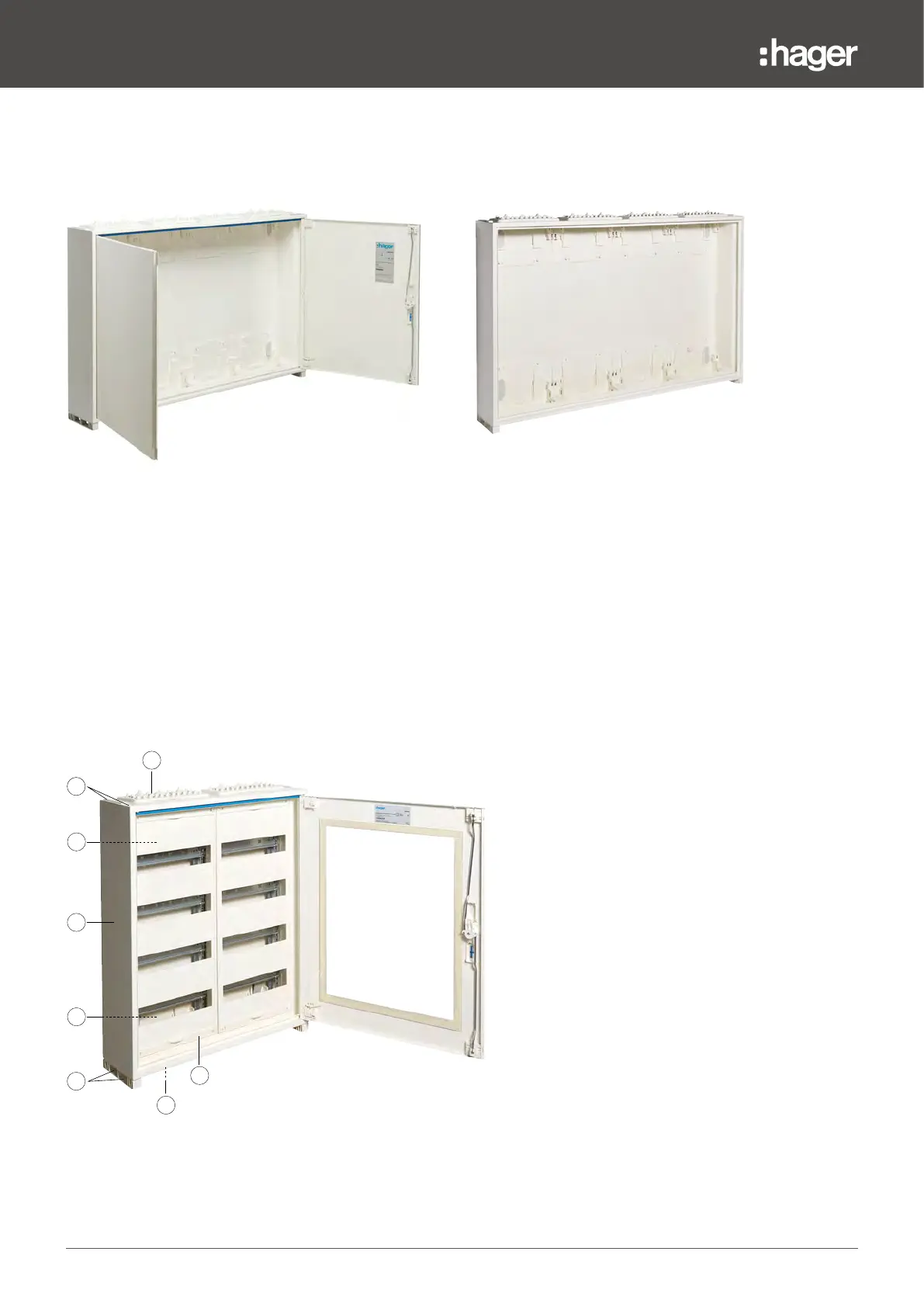

Example: FWB44D Example: FWQ44D1
4.2 Body
4.2.1 Properties
1 The interior is double insulated with plastic cladding
2 With two cable routing flanges (top / bottom) per panel
3 Two recesses (top / bottom) per panel for feeding cables through the rear panel
4 Entirely closed on the outside
5 With two exterior holes near the edges (top / bottom) for the installation of accessories such as cable
storage box
