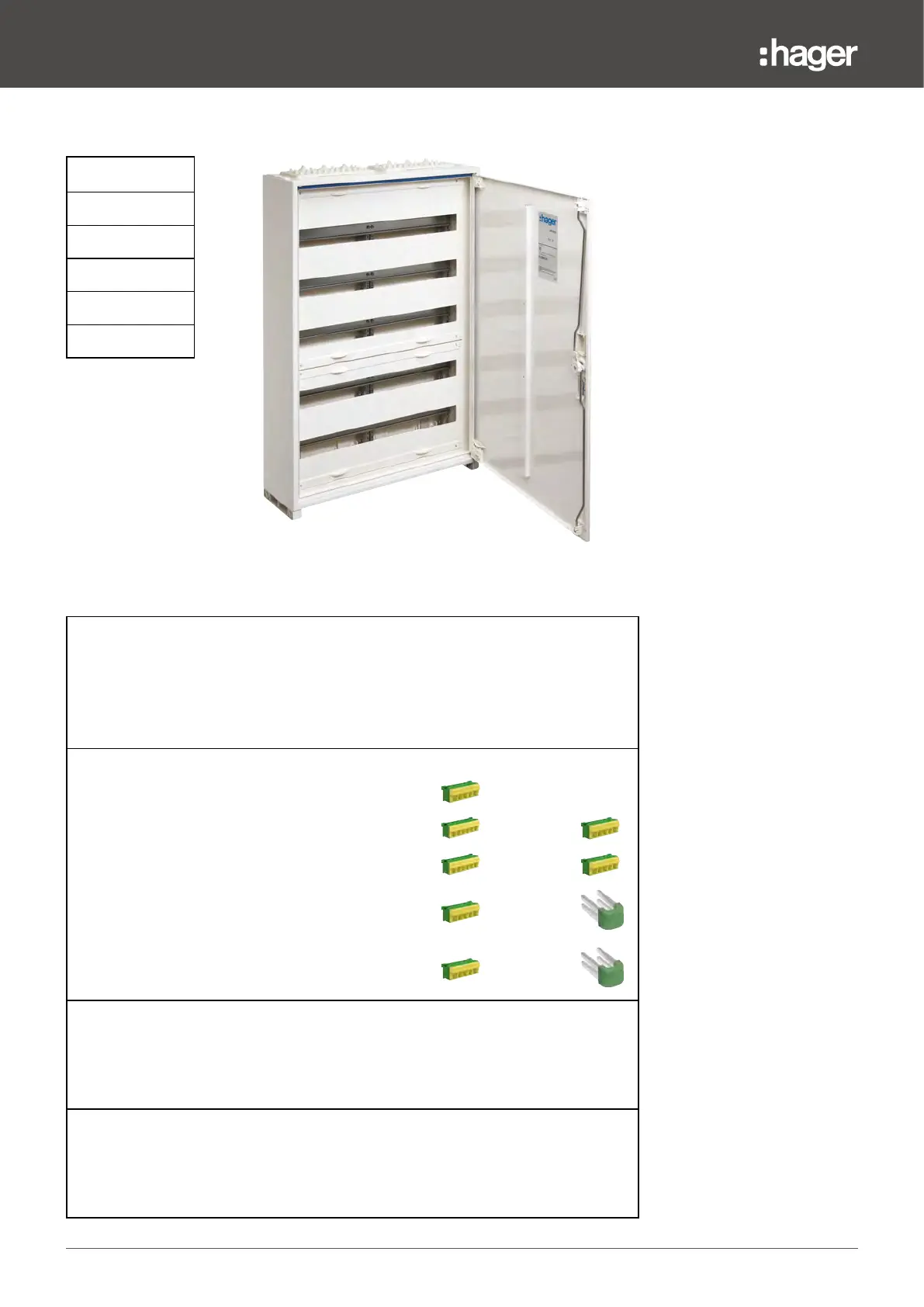

4.2.4.9 FWBxxM2
Reference
FWB32M2
FWB42M2
FWB52M2
FWB62M2
FWB72M2
Example: FWB52M2
Protection class IP44, impact protection IK09
Internal system:
Distribution panel:
- Covers 500 mm width, with 26 module slot width. With 2 covers above each other,
respectively 3 by size 7
- Continuous DIN rails (500 mm width)
- Distance between the DIN rails: 125mm
QuickConnect configuration (top)
Height 3: 2 x KN22E
Height 4: KN26E + KN22E
Height 5: KN26E + KN22E
Height 6: 3 x KN22E + KN99E
Height 7: 3 x KN22E + KN99E
Door:
- Plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWB – installation instructions
- QuickConnect installation instructions
