Doors

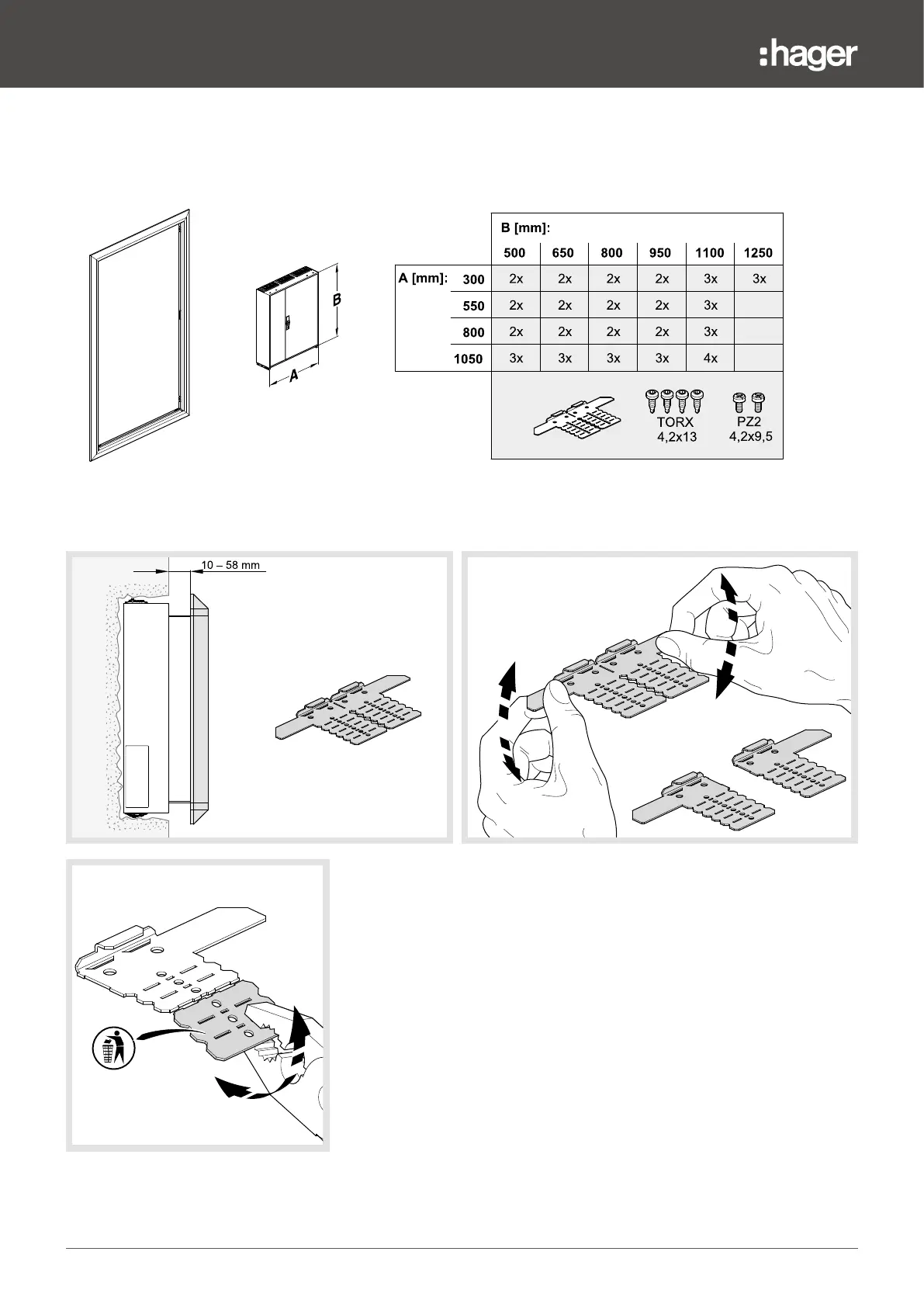

5.5.3 Frame installation
Frames for FWB cabinets are supplied with mounting brackets, self-tapping TORX screws and PZ2 screws.
The number of parts supplied depends on the height and width.
1x
The mounting brackets first have to be separated and cut to the correct depth.
6FZ02800g
2
TORX 4,2 x 13 mm
Md
max
= 3 Nm
TORX 4,2 x 13 mm
Md
max
= 3 Nm
6FZ02800g
2
TORX 4,2 x 13 mm
Md
max
= 3 Nm
TORX 4,2 x 13 mm
Md
max
= 3 Nm
6FZ02800g
3
Md
max
= 3 Nm
TORX 4,2 x 13 mm
PZ2 4,2 x 9,5
Md
max
= 2 Nm
