Information about the FWB, FWQ distribution board range
4.2.4.15 FWBxxT1S
Reference
FWB31T1S
FWB32T1S
FWB33T1S
FWB34T1S
FWB41T1S
FWB42T1S
FWB43T1S
FWB44T1S
FWB51T1S
FWB52T1S
FWB53T1S
FWB54T1S
FWB61T1S
FWB62T1S
FWB63T1S

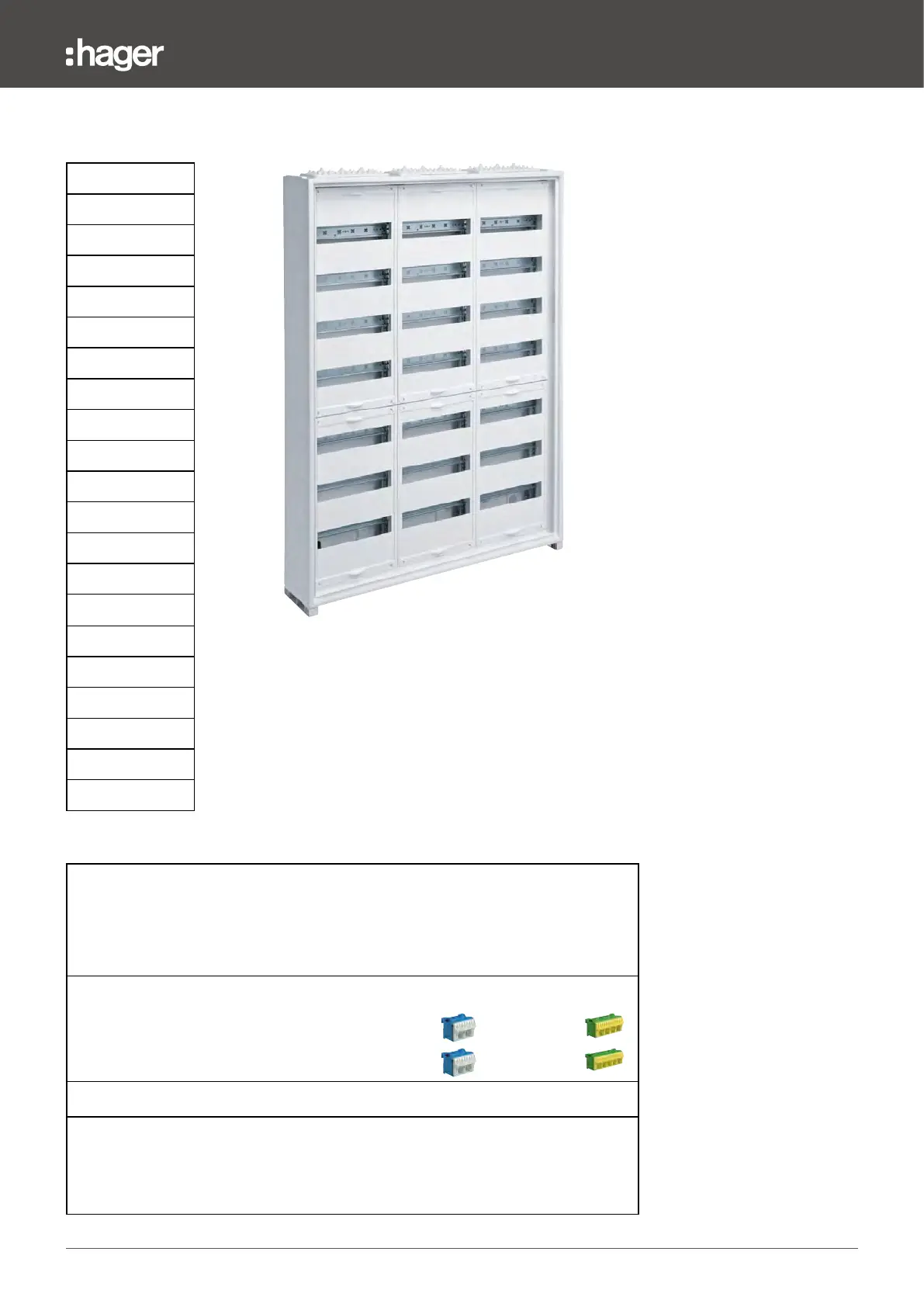

Example: FWB73T1S
FWB64T1S
FWB71T1S
FWB72T1S
FWB73T1S
FWB74T1S
Protection class IP30 (max. IP30 with door), impact protection IK05 (max. IK09 with door)
Internal system:
Distribution panel(s):
- Covers 250 mm width with 12 module slot width. With 2 covers above each other for
size 7
- Distance between the DIN rails: 125 mm
QuickConnect connect configuration (at the top of each distribution panel)
Height 3: 2 x KN10N
+ KN18E
Height 4, 5, 6 and 7: 2 x KN10N + KN22E
Without door, without blue seal
Included in scope of delivery:
- DINA4 labelling strip with type label
- DINA4 circuit table
- FWB installation instructions
- QuickConnect installation instructions
