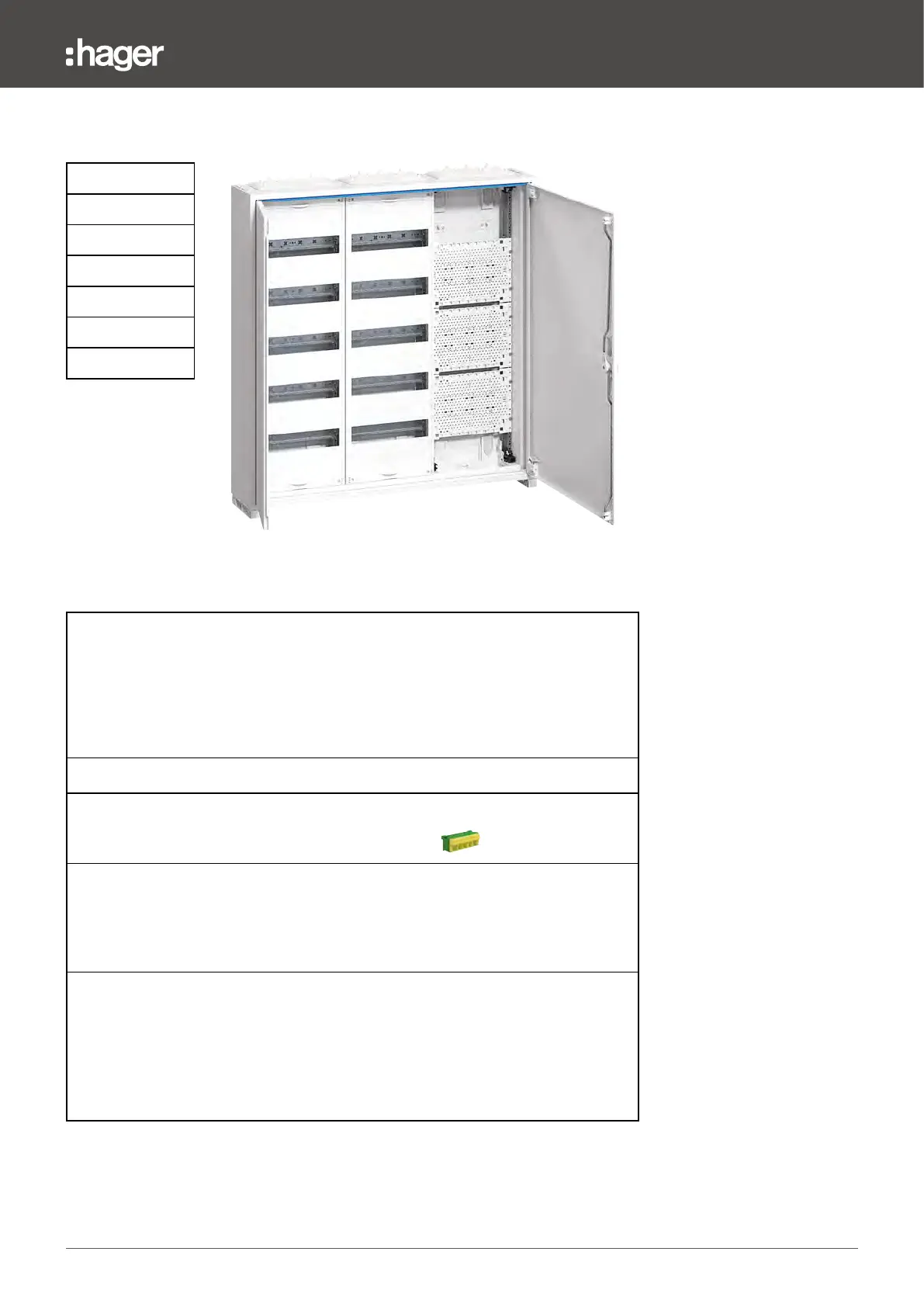

Information about the FWB, FWQ distribution board range
4.2.4.8 FWBxxK5
Reference
Example: FWB53K5
FWB42K5
FWB52K5
FWB53K5
FWB62K5
FWB63K5
FWB72K5
Protection class IP44, impact protection IK09
Internal system;
Distribution panel:
- Covers 250 mm width with 12 module
slot width. With 2 covers above each
other for size 7
- Distance between the DIN rails:
125mm
Multimedia panel:
- Pre-installed plastic mounting plates
- Number of mounting plates per size:
See UMx1UK
Pre-installed vertical partition between distribution and multimedia panel
QuickConnect connect configuration (at the top of each distribution panel)
Height 4, 5, 6 and 7: + KN22E
Door:
- Plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- 10 long and 10 short screws for the plastic mounting plate
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWB – installation instructions
- QuickConnect installation instructions
- Document pocket FZ794
