Information about the FWB, FWQ distribution board range
4.2.4.14 FWBxxS
Reference
FWB31S
FWB32S
FWB33S
FWB34S
FWB41S
FWB42S
FWB43S
FWB44S
FWB51S
FWB52S
FWB53S
FWB54S
FWB61S
FWB62S
FWB63S
FWB64S
FWB71S

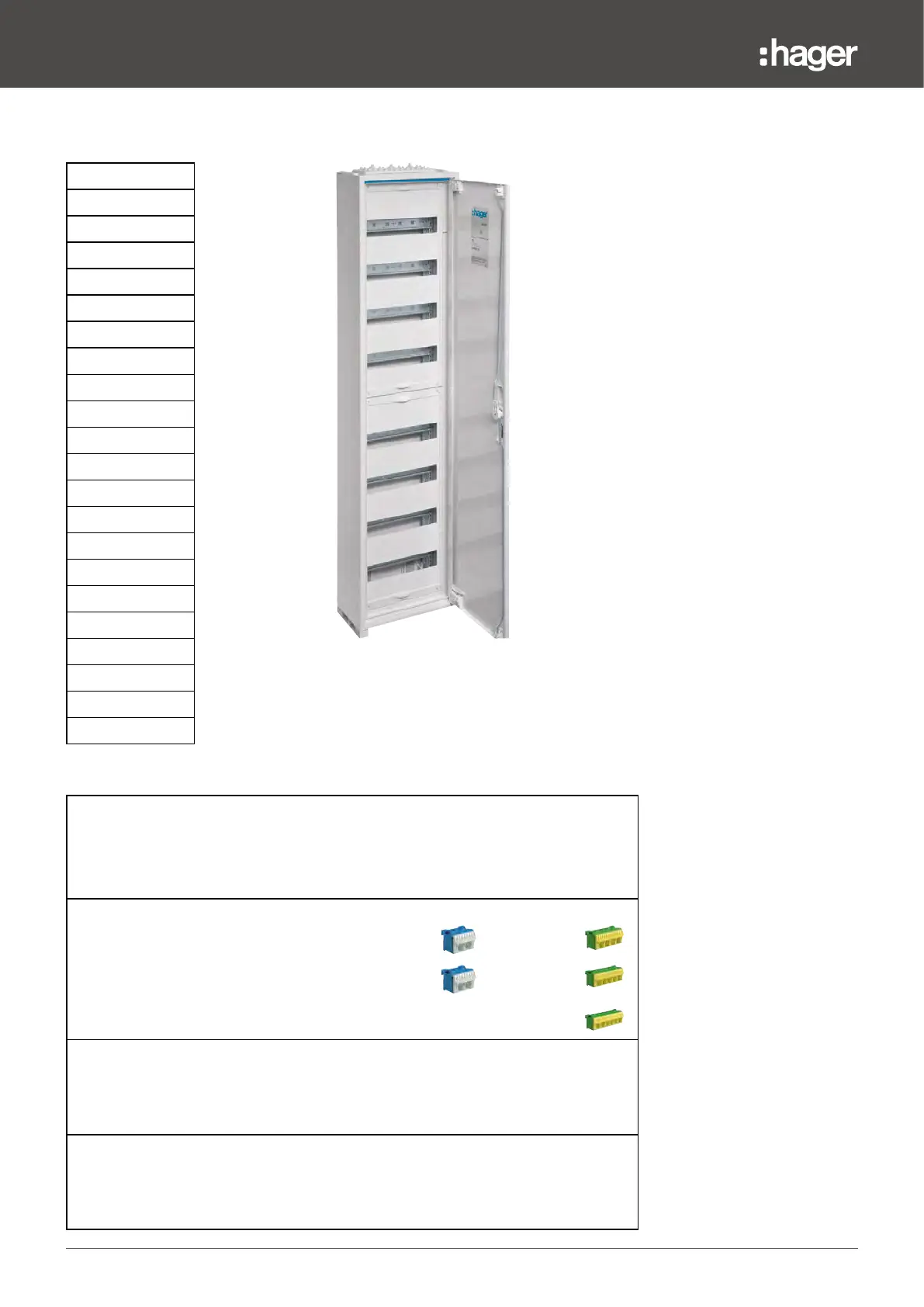

FWB72S Example: FWB81S
FWB73S
FWB74S
FWB81S
Protection class IP44, impact protection IK09
Internal system:
Distribution panel(s):
- Covers 250 mm width with 12 module slot width. With 2 covers above each other by
size 7 and 8
- Distance between the DIN rails: 125 mm
QuickConnect connect configuration (at the top of each distribution panel)
Height 3: 2 x KN10N
+ KN18E
Height 4, 5, 6 and 7: 2 x KN10N + KN22E
Height 8: 1 x KN26E
Door:
- Plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 labelling strip with type label
- DINA4 circuit table
- FWB installation instructions
- QuickConnect installation instructions
