Information about the FWB, FWQ distribution board range
4.2.4.12 FWBxxP
Reference
FWB31P
FWB32P
FWB33P
FWB34P
FWB41P
FWB42P
FWB43P
FWB44P
FWB51P
FWB52P
FWB53P
FWB54P
FWB61P

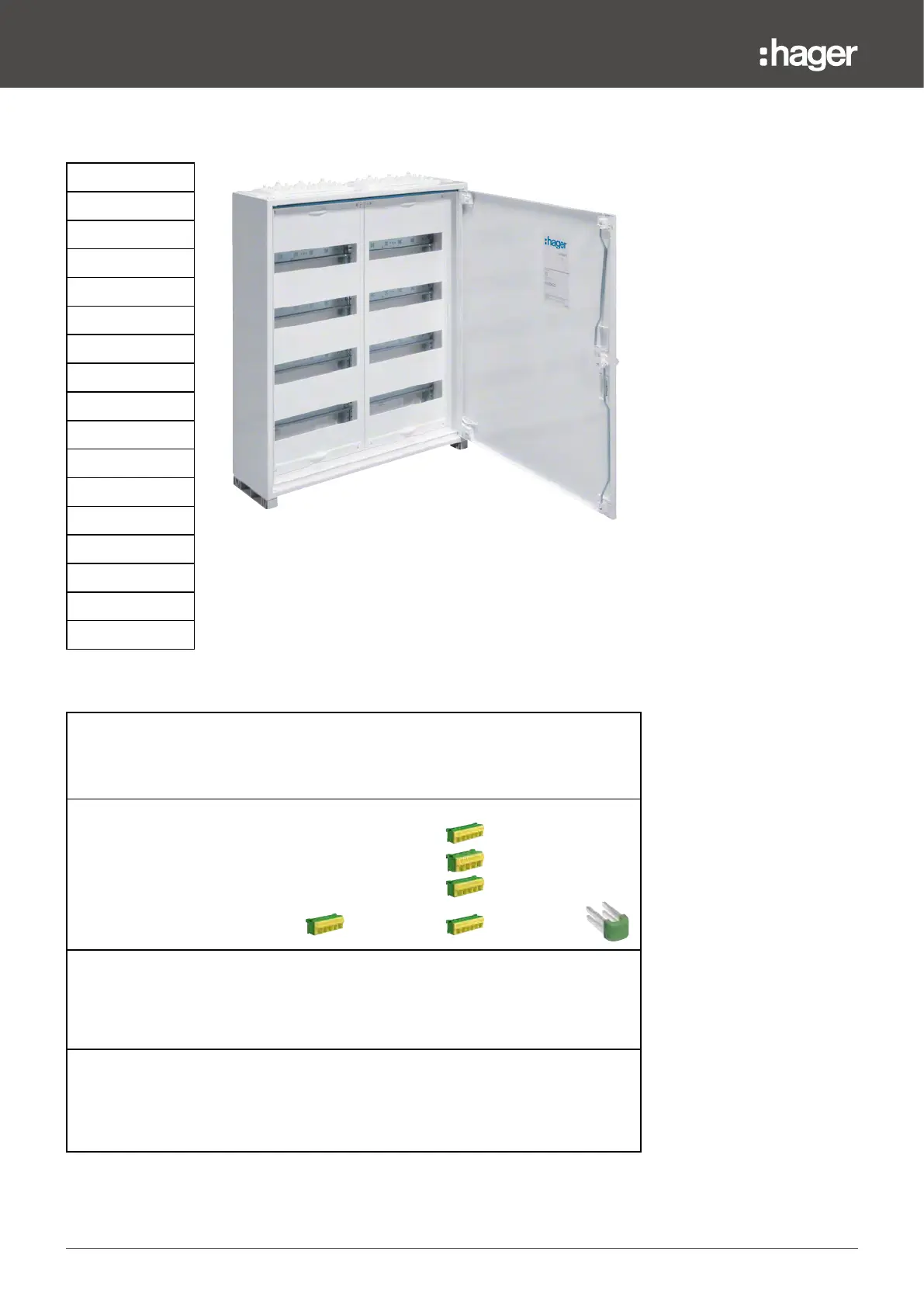

Example: FWB42P
FWB62P
FWB63P
FWB64P
Protection class IP44, impact protection IK09
Internal system:
Distribution panel(s):
- Covers 250 mm width with 12 module slot width
- Distance between the DIN rails: 125 mm
QuickConnect configuration (at the top of each distribution panel)
Height 3: 1 x KN26E
Height 4: 2 x KN18E
Height 5: 2 x KN22E
Height 7: 1 x KN22E 1 x KN26E + KN99E
Door:
- Plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 – labelling strip with type label
- DINA4 – circuit table
- FWB – installation instructions
- QuickConnect installation instructions
