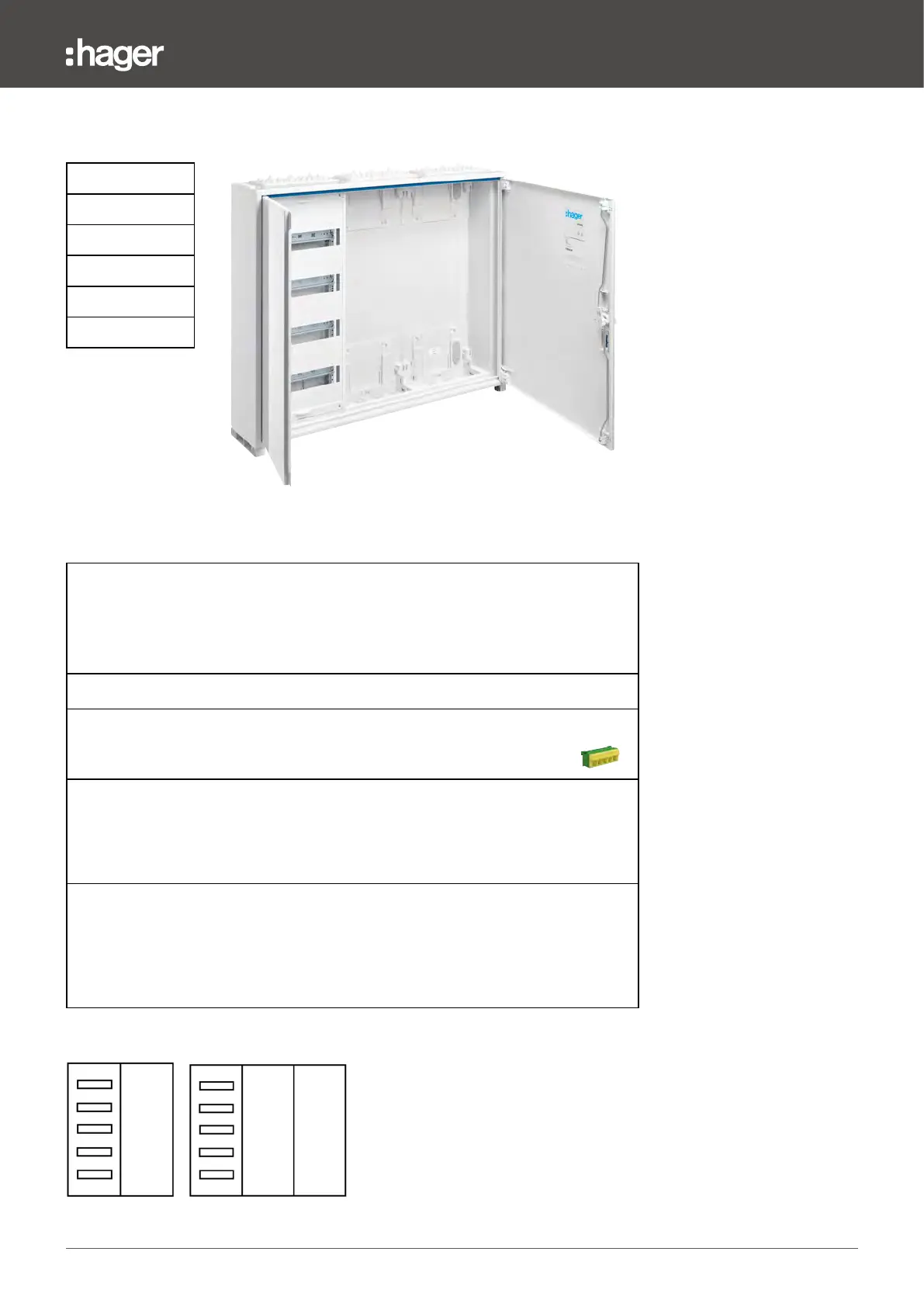

Information about the FWB, FWQ distribution board range
4.2.4.13 FWBxxP2
Reference
Example: FWB43P2
FWB42P2
FWB43P2
FWB52P2
FWB53P2
FWB62P2
Protection class IP44, impact protection IK09
Internal system:
Distribution panel(s):
- 1 panel is always installed on the left, the other panels are empty
- Covers 250 mm width with 12 module slot width
- Distance between the DIN rails: 125 mm
Pre-installed vertical separation
QuickConnect connect configuration (at the top of each distribution panel)
Height 4, 5, 6 and 7: 1 x KN22E
Door:
- Plain
- Steel
- univers door closing
- Right door with reinforcement bar for size 5 and higher
Included in scope of delivery:
- DINA4 labelling strip with type label
- DINA4 circuit table
- FWB installation instructions
- QuickConnect installation instructions
- Document pocket FZ794
panel configuration for FWBxxP2:
FWBx2P2 FWBx3P2
Empty
field
Empty
field
Empty
field
