7.2 Supply of fully assembled panels
7.2.1 UWxxVx distribution panels
Distribution panels consist of:
- Mounting rails
- DIN rails
- QuickConnect terminals and carrier
- Fixation towers
- Covers
From size 7 (1100 mm), two covers are used above each other. The distance between the module rows is
125 mm (slots) for all covers.

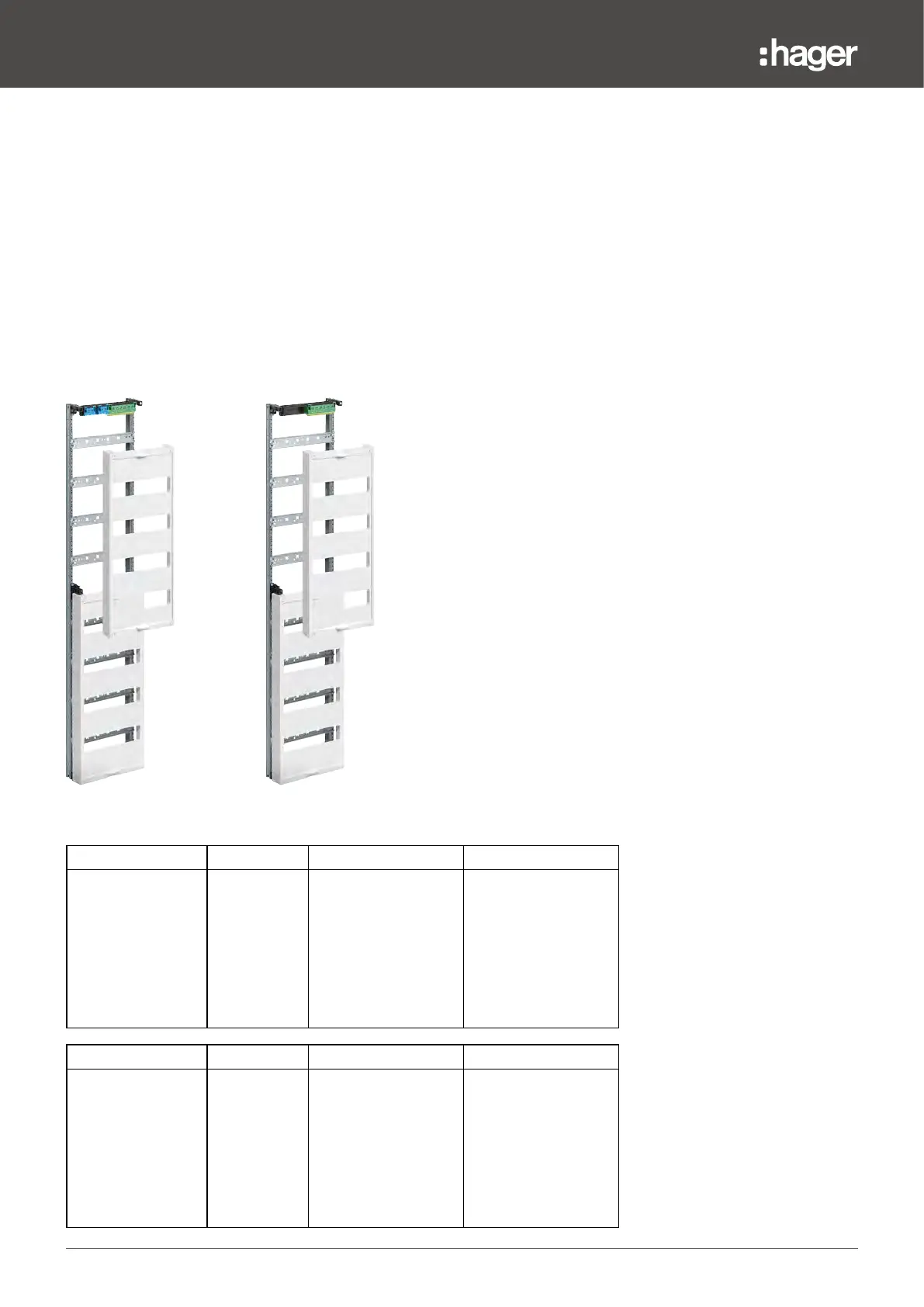

Example: UW81V Example: UW81VA
Panels Height Width 1 (250mm) QC equipment
Distribution panel
with QC
Green-yellow / blue
(PEN)
3 (450 mm) UW31V KN18E + 2x KN10N
4 (600 mm) UW41V KN22E + 2x KN10N
5 (750 mm) UW51V KN22E + 2x KN10N
6 (900 mm) UW61V KN22E + 2x KN10N
7 (1050 mm) UW71V KN22E + 2x KN10N
8 (1200 mm) UW81V KN22E + 2x KN10N
Panels Height Width 1 (250mm) QC equipment
Distribution panel
with QC
Green-yellow
(PE)
3 (450 mm) UW31VA KN18E
4 (600 mm) UW41VA KN22E
5 (750 mm) UW51VA KN22E
6 (900 mm) UW61VA KN22E
7 (1050 mm) UW71VA KN22E
8 (1200 mm) UW81VA KN26E
