univers Z internal system

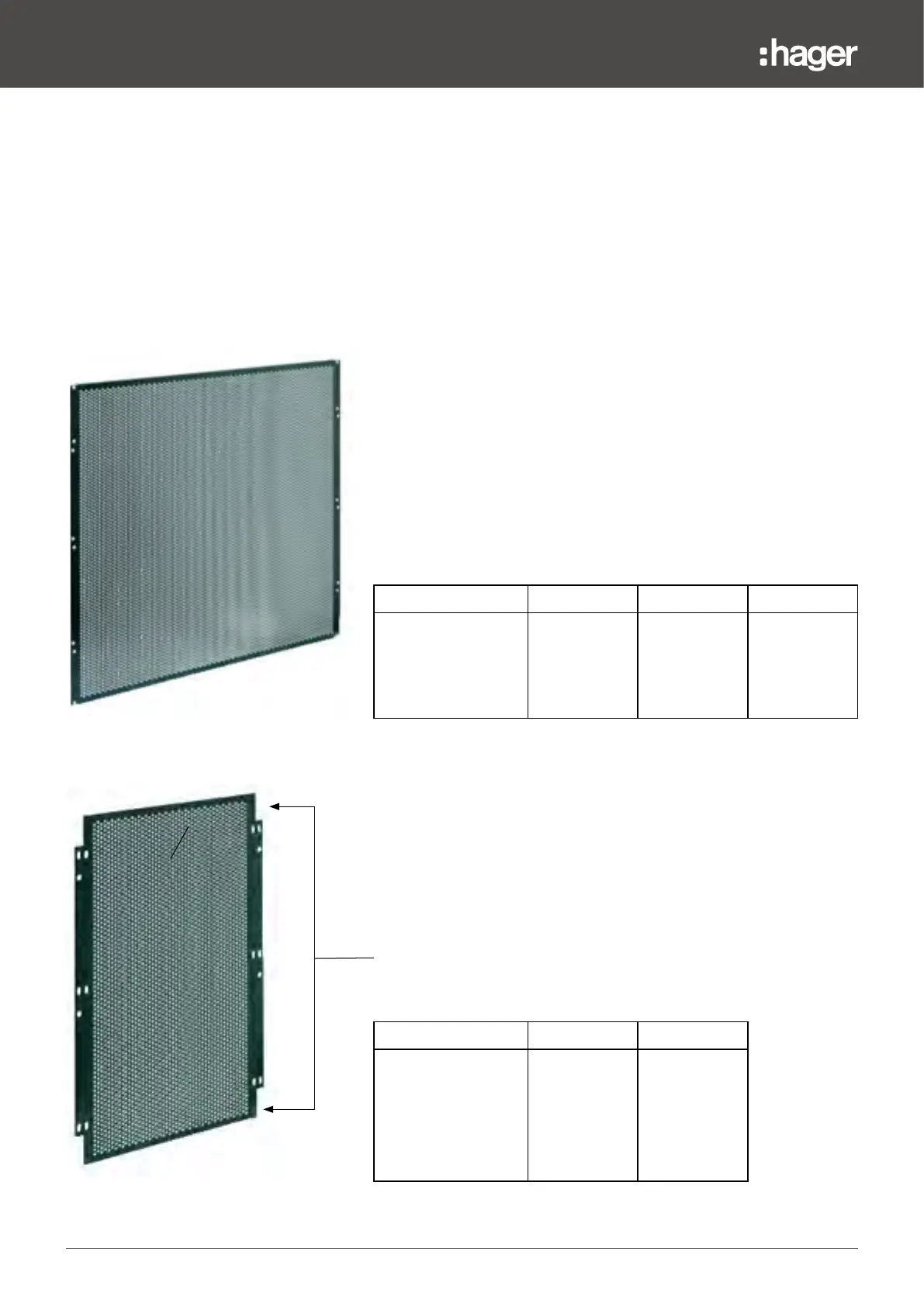

7.3.5 UZxxMx steel mounting plates
Steel mounting plates, also called perforated plates, come in 2 dierent versions. Like in the cabinet references,
the two digits after the UZ indicate the height and width of the panel into which the panel fits. The ending M5
means that the panels are rectangular. M6 panels, on the other hand, are extended at the top and bottom
so that this extended area fits between the mounting towers for the covers. M6 panels therefore have a little
more space.
For example, the coding of the UZ42M5 perforated metal plate below shows that it fits into a panel area of
600 x 500 mm (42) and has a rectangular profile (M5).
Example: UZ42M5
Panels Height (mm) Width 248 mm Width 498 mm
Steel plate
(rectangular)
310 UZ31M5 UZ32M5
460 UZ41M5 UZ42M5
610 UZ51M5 UZ52M5
760 UZ61M5 UZ62M5
Extension of the perforated metal plate area in M6 plates
Panels Height (mm) Width 248 mm
Steel plate
(extended)
240 UZ21M6
390 UZ31M6
570 UZ41M6
720 UZ51M6
890 UZ61M6
Example: UZ31M6
