We reserve the right to make changes of a technical nature 77
univers Z internal system

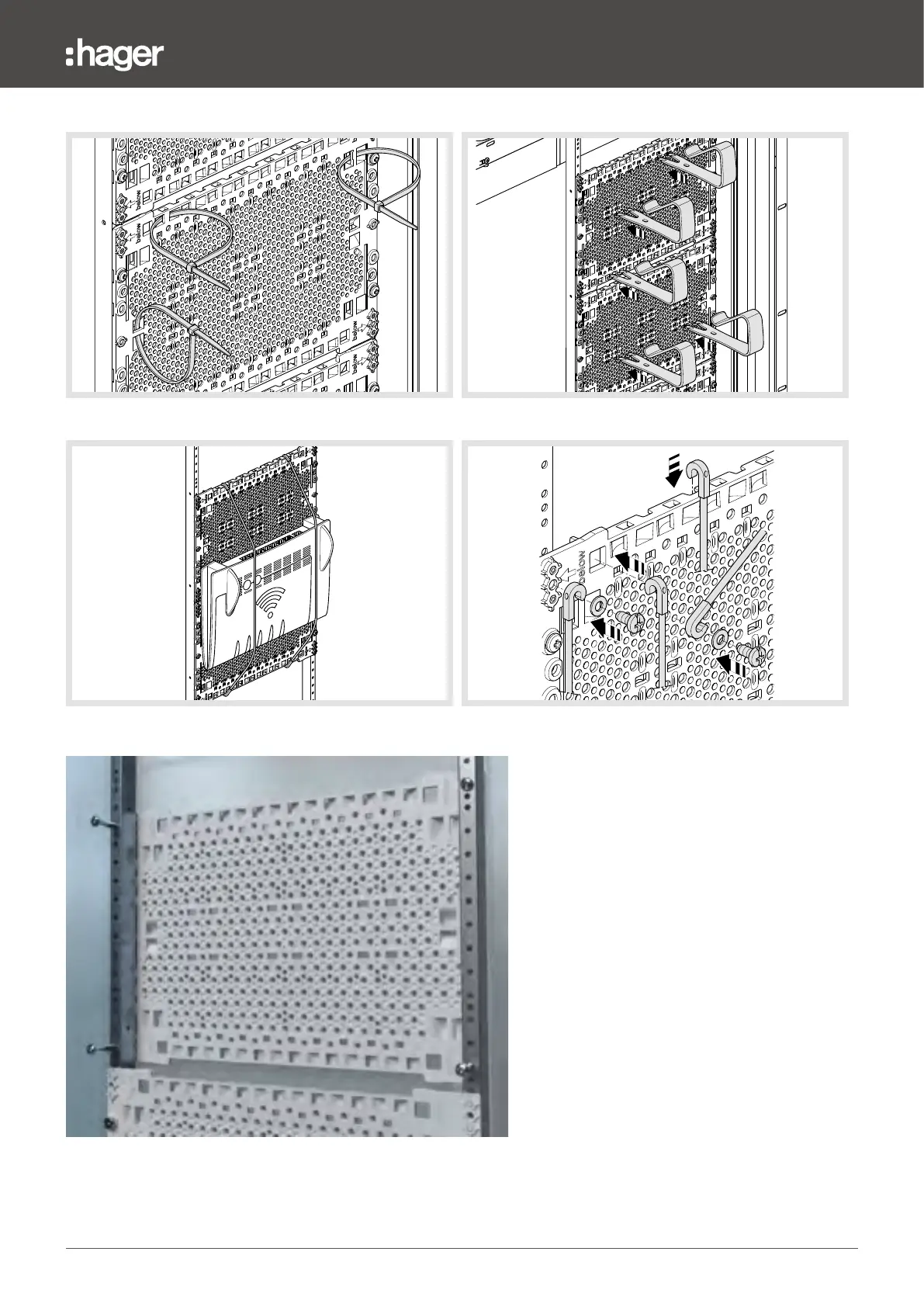

Cable ties installed on the UM00M0 plastic mounting plate VZ02MM modem holder installed on the UM00M0 plate
VZ340 fixing kit with modem installed on the UM00M0 plate VZ340 fixing kit installation options
Mounting plate on the rear of the univers FW mounting rail (top of the image)
Installation on the front of the univers FW mounting rail (Bottom of image)
Standard univers metal screws 4.2 x 9.5 mm (e.g. UZ100) can also be screwed into the mounting plate as
long as the tightening torque of 1.2 Nm is not exceeded.
